12. Parts Lists and Diagrams - 503/UK3
141 Hex bolt M8X20GB5783Z 4
142 Large washer WSH8GB96D1Z 4
143 Lock handle JL26040015-001S 1
144 Bracket JL26040008 1
145 Set screw M6X12GB77Z12D9 4
146 Gear 1501006 1
147 Plate JL26040007 1
148 Screw JL26040006 1
149 Cover BS5001050001 1
150 Screw M8X16GB70D1Z 4
151 Cover BS5001050002 1
152 Pan head screw M4X4GB823B 2
153 Rack BS6001050001 1
154 Screw M4X10GB819D1Z 3
155A Bracket BS5001052001 1
156 Screw M8X20GB70D1Z 1
156A Guide post JL26041004 1
156B Screw M8X16GB70D1Z 1
156C Tube JL26041006 1
156D Screw M8X30GB70D1Z 1
156E Screw M8X40GB70D1Z 2
156F Tube JL26041002 2
156G Bearing BRG6201-2RSGB276 5
156H Flat washer WSH8GB97D1Z 3
156I Guide shaft JL26041003 3
156J Upper guide JL26041001 1
159 Large washer WSH6GB96D1Z 1
160 Composite bolt JL20061003A-001S 1
161 Nut M6X15GB/T17880D3Z 1
164A Blade guard BS5001051000B-105U 1
166 Large washer WSH5GB96D1Z 2
167 Screw M5X10GB70D1Z 2
169 Screw M6X16GB70D1Z 2
170A Guide post BS5001050003B 1
171 Pan head screw M5X10GB818B 2
172 Handle 1501009-20001S 1
173 Large hand wheel JL26030012-001S 1
174 Tube JL26040003 1
175 Screw-locked ring CLP12GB884B 1
176 Set screw M5X8GB78Z121D9 1
177 Worm JL26040004 1
178 protective cover BS5001052002A 1
179 Flat washer WSH5GB97D1Z 4
180 Screw M5X10GB818Z 4
No. Description Part Number Quantity No. Description Part Number Quantity

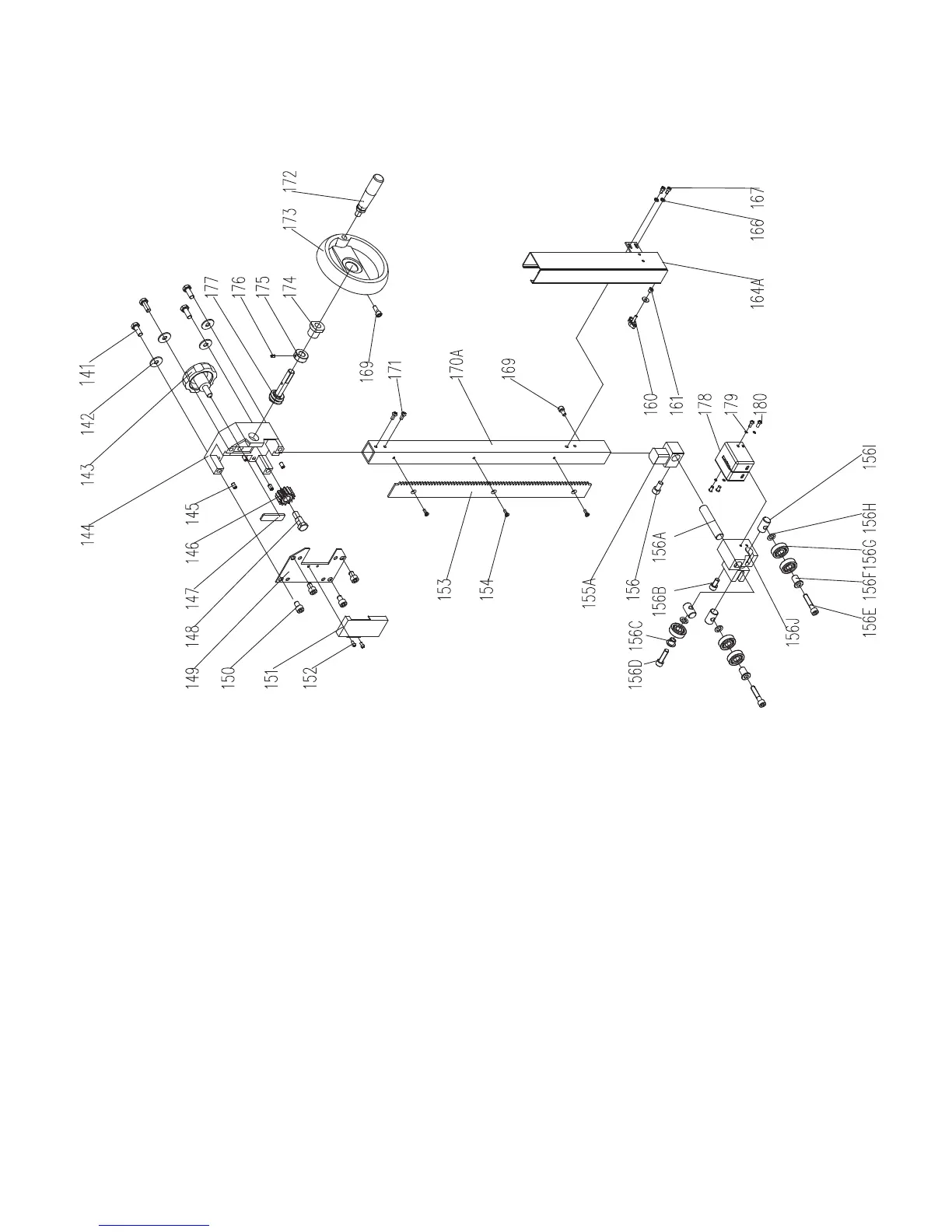

Upper Guide Assembly
