Fireaway Inc. Version 1
5852 Baker Road 10/2017
Minnetonka, MN 55345 P/N 19112
13
g. Detection End of Line (EOL) device PN 830007

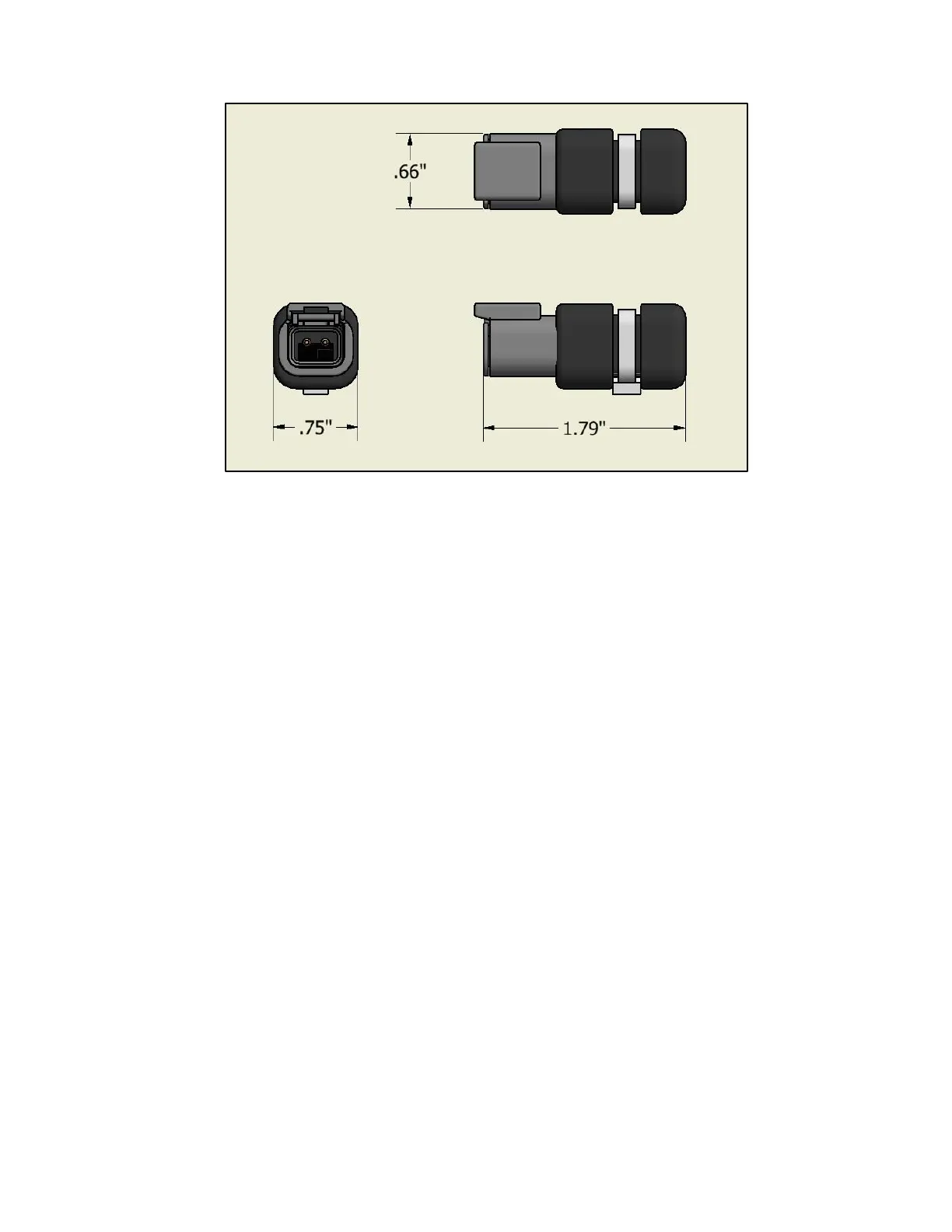

Figure 13 – 470k ohm End of Line device
Class B detection circuits require a resistor to be placed in series in the circuit. The end
of line device (EOL) PN 830007 provides a series resistance of 470k ohms. The EOL
consists of a two position Deutsch connector with an over molded 470k ohm resistor.
The EOL provides a high resistance closed loop to each of the SDRP panel’s two
detection circuits. A break or open in the circuit indicates a Trouble condition to the
SDRP. A detection circuit closure of approximately 100 ohms indicates a fire or over
heat condition to the SDRP.
