Stat-X SDRP - System Alarms and Troubleshooting

Fireaway Inc. Version 1
5852 Baker Road 10/2017
Minnetonka, MN 55345 P/N 19112
19
6. System Alarms and Troubleshooting
Normal Operating Condition
Flip the TEST toggle Switch to Test the SDRP system …

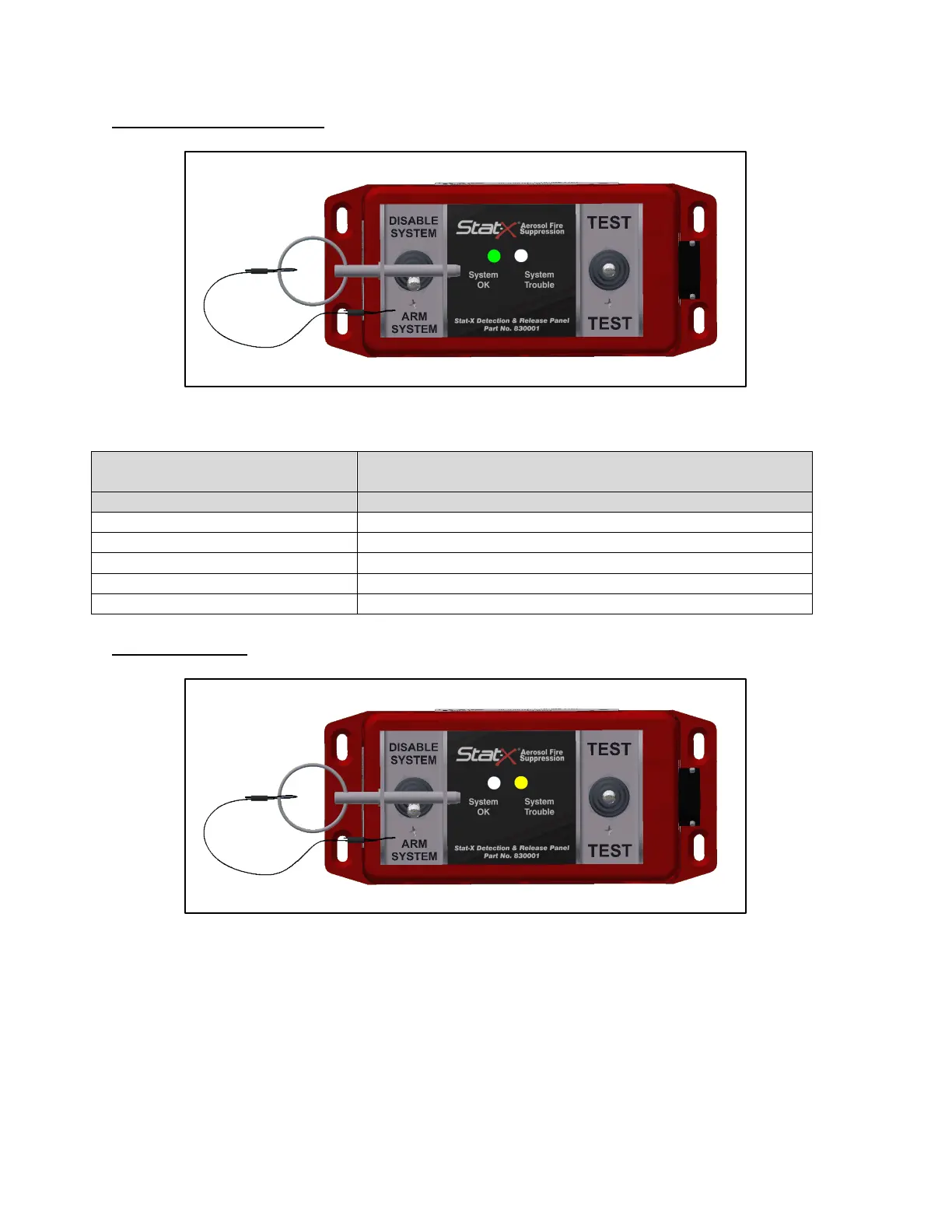

Front Panel Display
System OK – Green LED ON
System Trouble – Yellow LED OFF
Indicates
Status
Detection Field Wiring
Continuous circuit with correct resistance
Actuation Field Wiring
Continuous circuit with correct resistance
Manual Release Switch
Continuous circuit with correct resistance
Disable Switch Position
In “Arm System” position
Internal Batteries
In place with correct voltage
Trouble Condition
