g. Continue testing the remaining linear detection circuits.
5. Replace internal batteries every three years at a minimum or following any system
discharge.
6. Remove alarm modules.
7. Reconnect Stat-X generators.
8. Prior to re-commissioning the system, perform a final test by toggling the “TEST” switch.
The “System OK” LED should appear green.
-- The SDRP System is now operational –
SDRP Internal Battery Replacement Procedure
The batteries used with the SDRP are a lithium thionyl chloride chemistry. They cannot
be recharged. Only use our PN 830009 as a replacement.
1. See figures #10 & #11 below.
2. Remove panel from mounting position.
3. Remove pull pin and flip toggle switch to “Disable System” position
4. Replace pull pin.
5. Disconnect circular connector and wiring harness from SDRP.
6. Remove qty. four (4) #6-32 x 5/8” screws from mounting plate.
7. Remove gasket from mounting plate.
8. Remove and replace two (2) batteries and replace with new batteries PN 830009
9. Reinstall new gasket.
10. Replace mounting plate and screws. Torque to approximately six (6) to nine (9) in-lbs.
11. Replace SDRP panel at original mounting position.
12. Remove pull pin and flip toggle switch to “Arm System” position.
13. Replace pull pin.
14. Record replacement date on supplied label and attach label to control panel

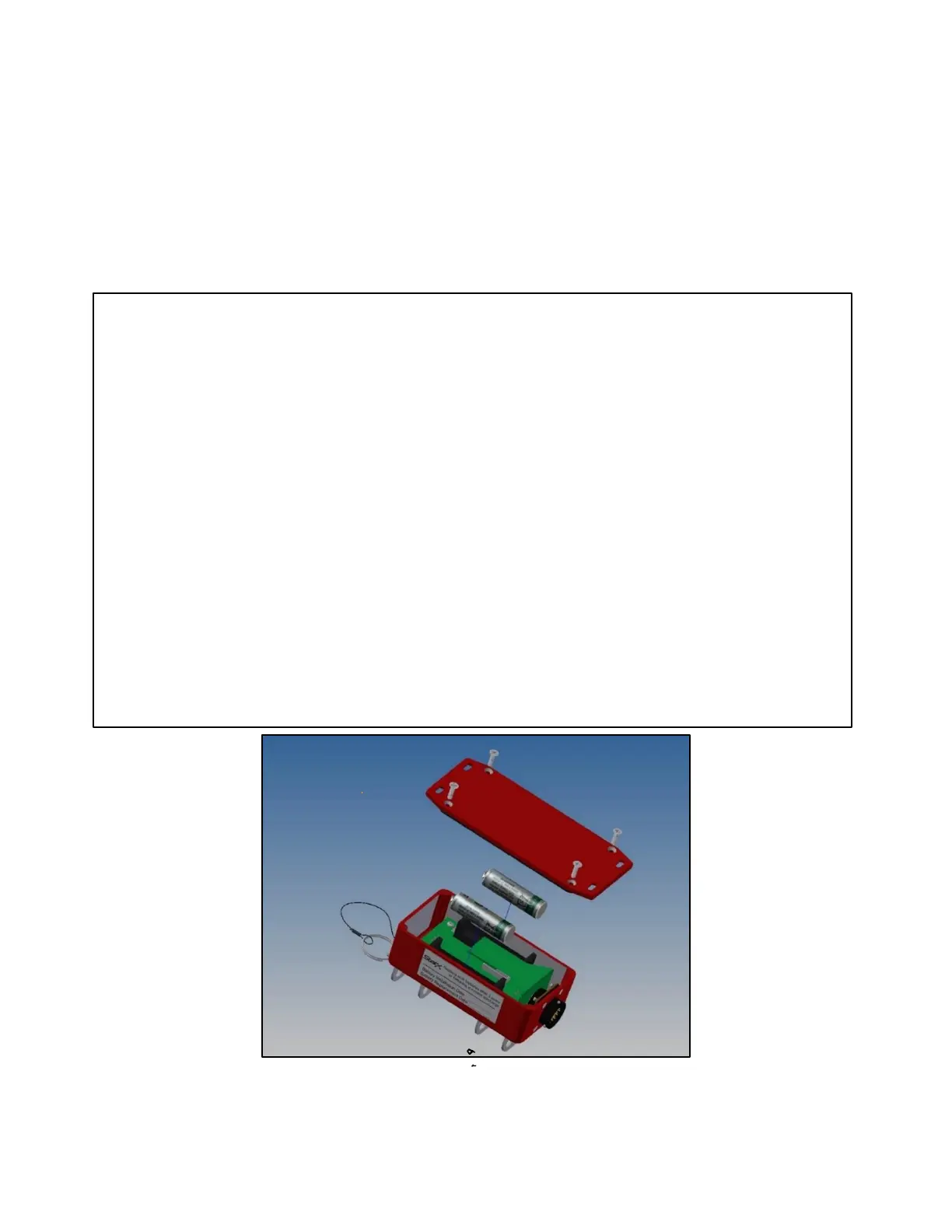

Figure 15 - Internal Battery Replacement Diagram
