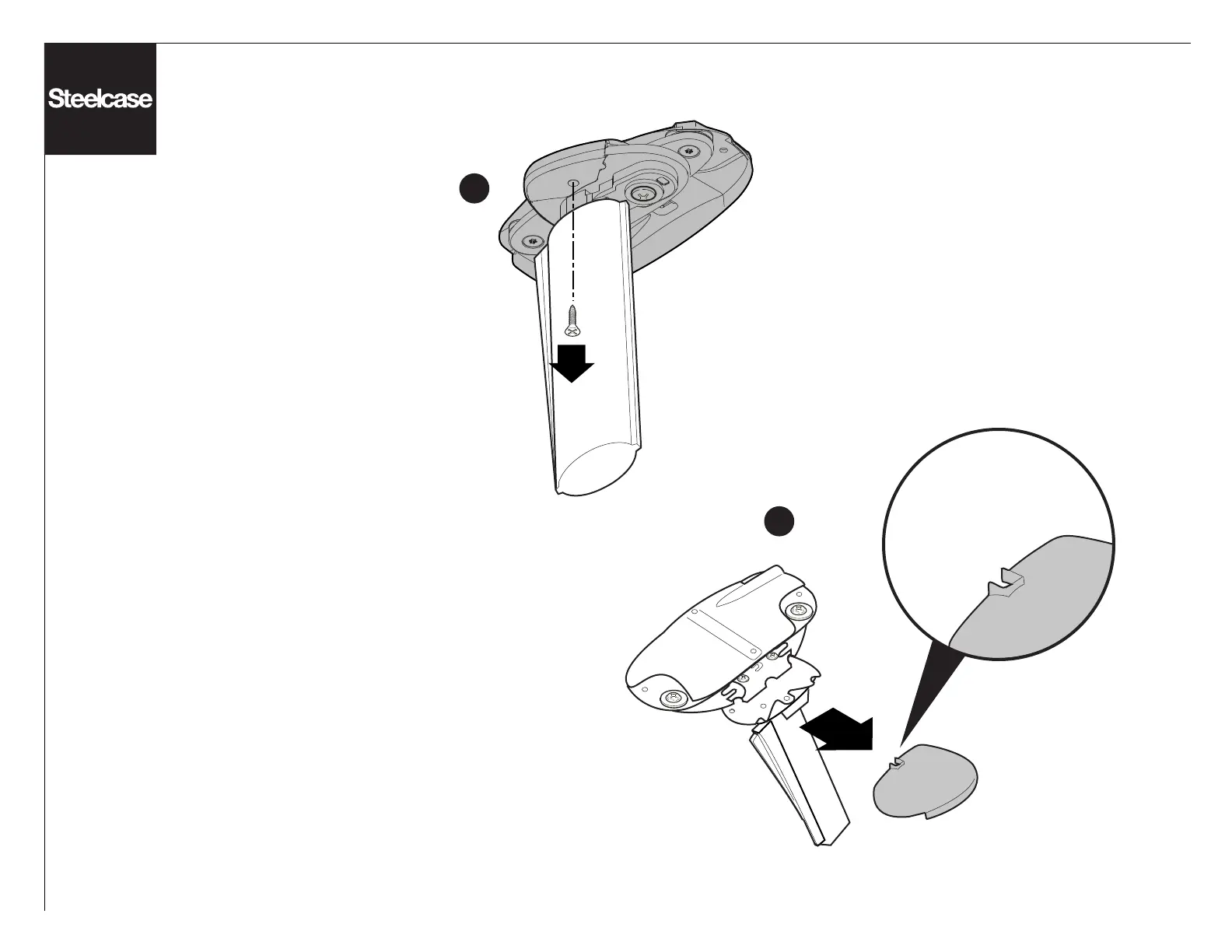

Gear Cover Replacement
1. Flip the chair to an upside down position.
2. Remove small silver screw on the underside
of the arm which will be a #2 phillips drive flat
head screw.
3. Remove cover by carefully pulling in an
outward motion.
4a. For old style, place new cover on slight
angle and insert lip under arm cover and gently
push, snapping into place being careful not to
break plastic lip and cover; reinsert screw.
4b. For new style, push cover on and replace
#2 phillips drive flat head screw.
NOTE: When replacing covers, watch for right
and left hand if replacing both sides.
