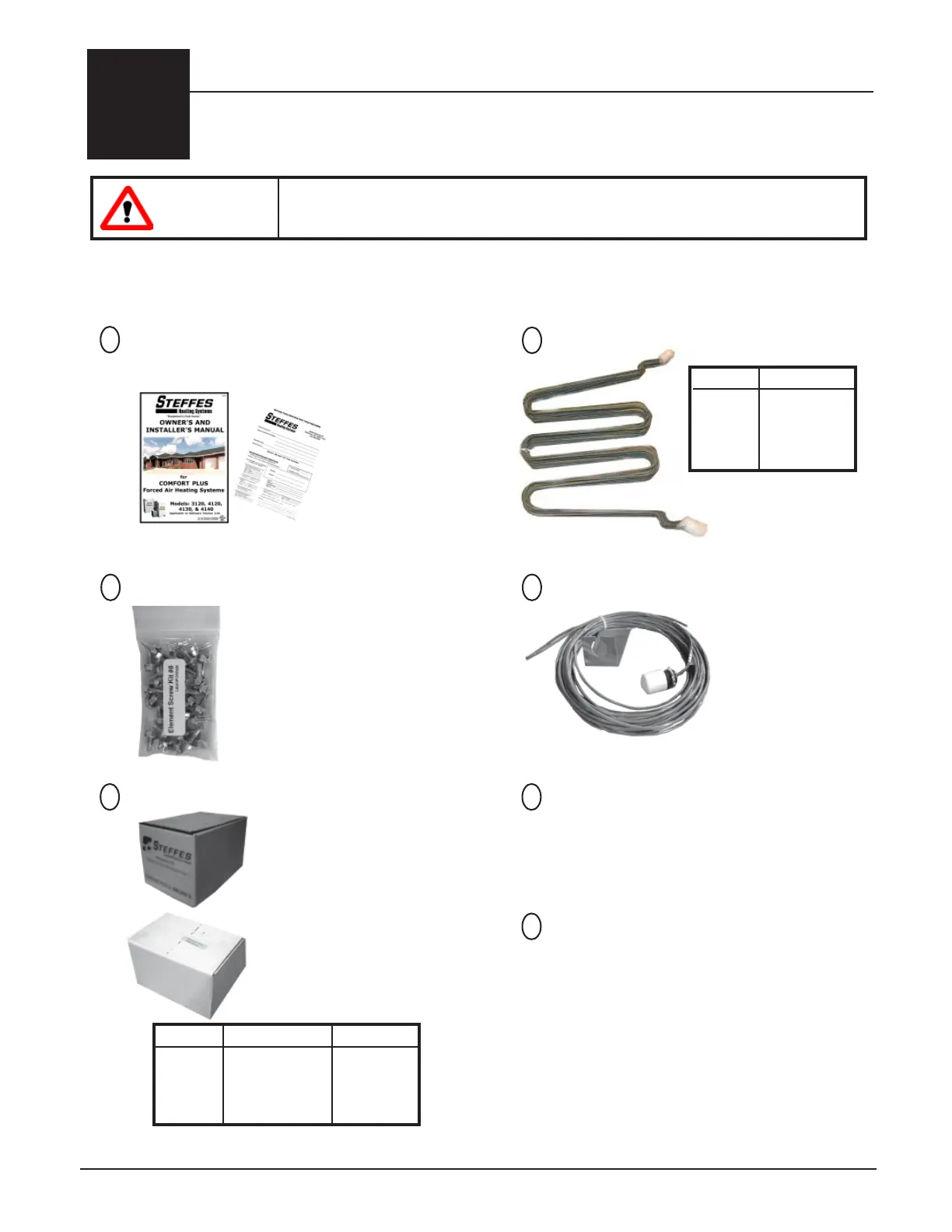

SHIPPING AND PACKAGING
The Comfort Plus system should always be transported in an upright position to avoid damage to internal compo-
nents and insulation materials. The information below describes the items shipped with each system.
CERAMIC BRICK
ELEMENT SCREW KIT
(shipped
inside the
electrical
compartment)
5
(shipped inside the
electrical compartment)
OUTDOOR TEMPERATURE SENSOR
2
3
1
INFORMATION PACKAGE
(includes Owner's Manual and
Warranty Registration Card)
(adhered to outer side of shipping box)
MODEL ELEMENTS
3120 8
4120 8
4130 12
4140 16
(shipped inside the base of
the Comfort Plus)
HEATING ELEMENTS
4
SUPPLY AIR BLOWER ASSEMBLY
(4100 SERIES)
Packaging Dimensions 26 x 24.5 x 20.5
(shipped separately)
6
MODEL FULL BRICK 1/2 BRICK
3120 18 Boxes 0 Boxes
4120 26 Boxes 1 Box
4130 37 Boxes 2 Boxes
4140 49 Boxes 2 Boxes
RETURN AIR PLENUM ASSEMBLY
(3100 SERIES)
Packaging Dimensions 27 x 40 x 4
(banded to the 3100 Series Comfort Plus for shipping)
7
Full Brick
(shipped separately
and packaged 4 brick
per box)
Half Brick
(shipped with brick and
packaged in a white box
consisting of 6 half brick
and 1 full brick)
CAUTION
Risk of sharp edges. Can cause personal injury. Use caution
when installing and/or servicing equipment.
