3

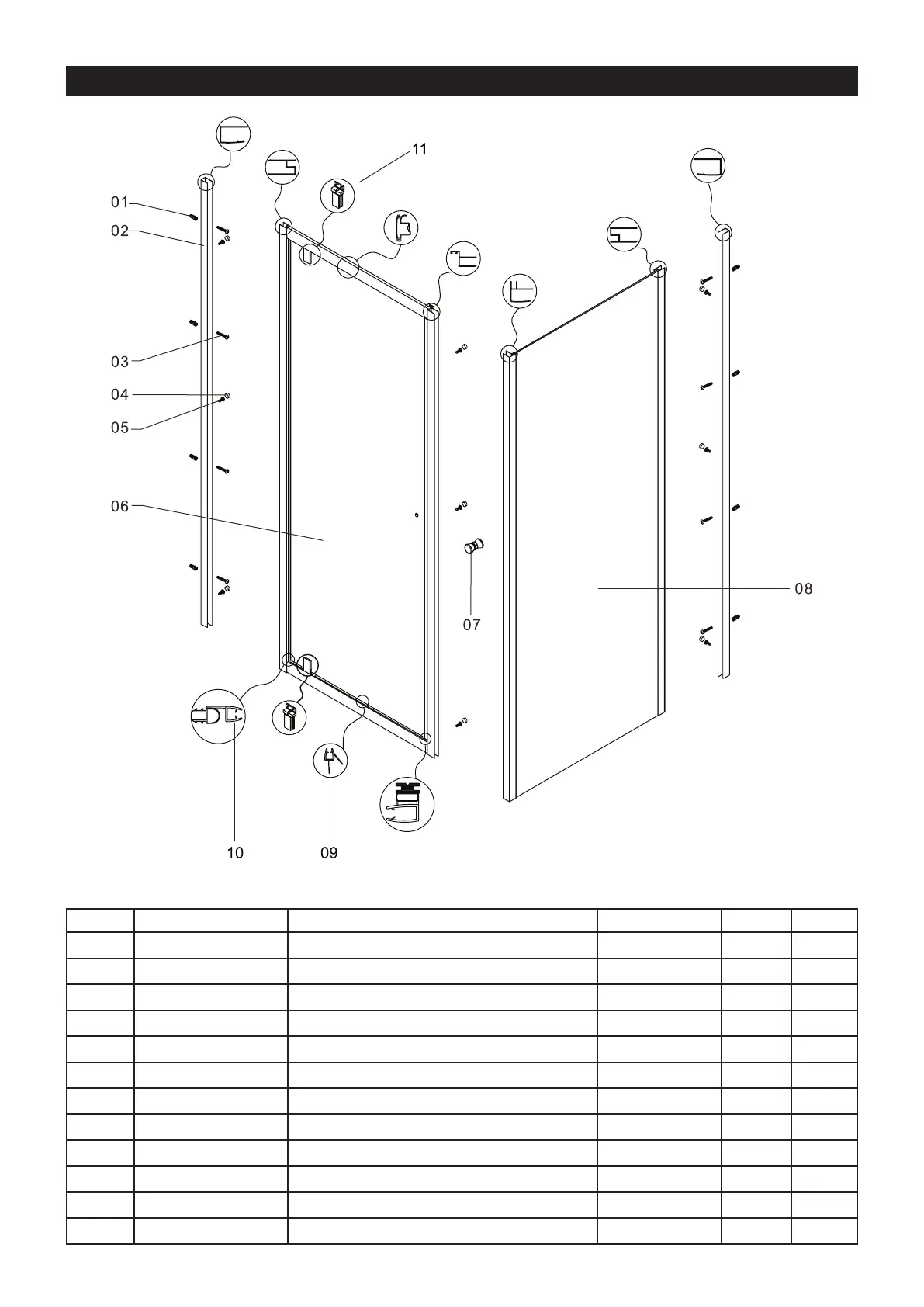

ASSEMBLY DIAGRAM
No. Stein Part Nos. Description Size (mm) Qty Unit
1 Wall Plug (Concrete) 6x30 8 Pc
2 Wall Channel 1830 2 Pc
3 Wall Channel Screws ST3. 5x35 8 Pc
4 Screw Cap 9 Pc
5 Frame to Wall Channel Screws ST4x10 9 Pc
6 Door Panel 1725x780x6 1 Pc
7 Handle 1 Pc
8 Return Panel 1830x822x5 1 Pc
9 Door Bottom Seal 780 1 Pc
10 Back Door Seal 1760 1 Pc
11 Pivots Top and Bottom 2 Pc
12 Pivot Screw Cap 2 Pc
PARTS LIST
