Steinbach Classic 310 - Mounting the Pump on the Base Plate; Hose Connections; Connecting the Return Line

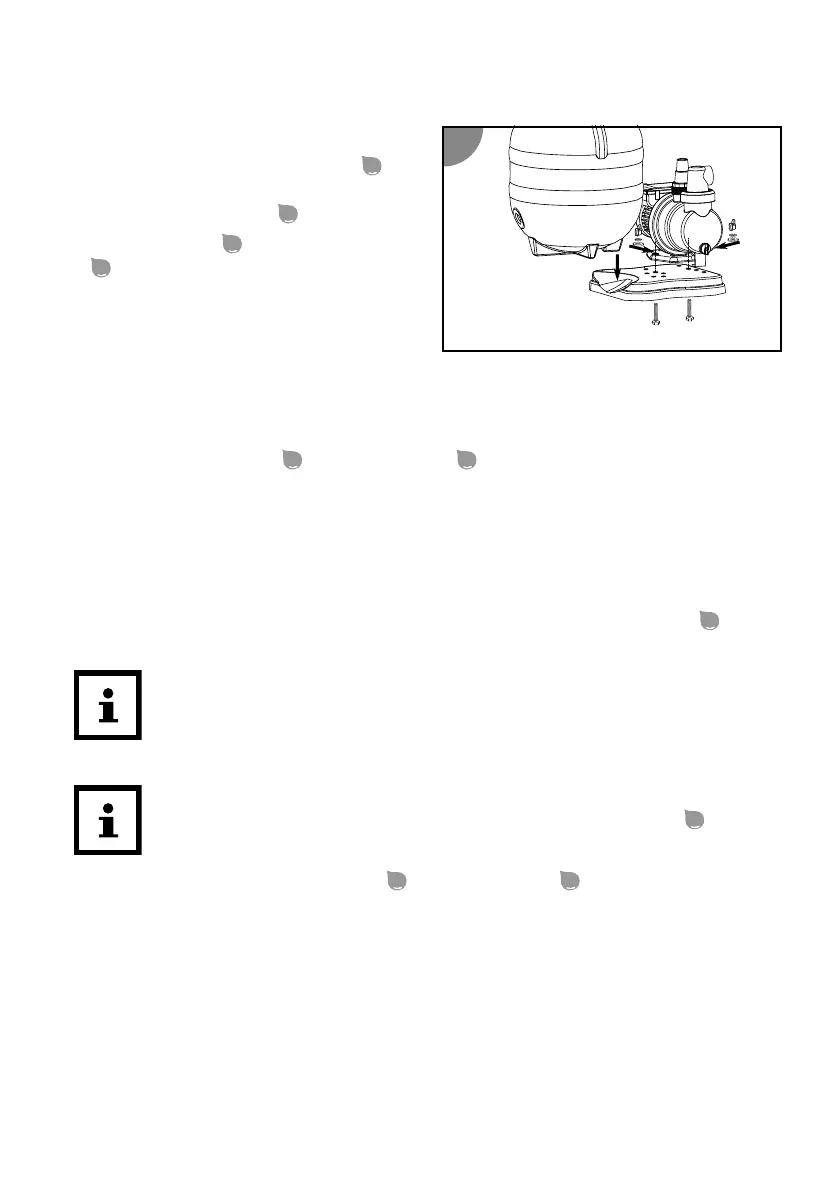

Mounting the pump on the base plate
1. Insert the threaded screws of the
screw set for fastening the pump
13
from below into the two hexagonal
holes in the base plate
12
.
2. Place the pump
3
on the base plate
12
so that the threads protrude
through the fastening opening in the
pump base.
3. Push the washer and then the serrated
lock washer over the screw thread.
4. Put on one winged screw each and ghten it.
The pump is mounted on the base plate.
5. Connect the base plate
12
to the lter vessel
2
.
The base plate is connected to the lter vessel.
Hose connections
- Fasten all aached hose connecons with hose clamps to ensure that the system
does not leak.
We recommend addionally sealing the hose connecons with Teon tape
23
.
- Use suitable pool hoses for the described connecons.
Some hoses, such as the pressure hose, are very s. Place them in the sun
before use so that the heat makes them more exible.
Connecting the return line
You can use hoses with diameters of 32 or 38 mm, or oponally aach an
adapter for INTEX pools/Steinbach 2" ext. thread x 1" int. thread
36
.
1. Press and hold down the valve lever
31
on the valve head
1
.
2. Set the valve lever to the "CLOSED" posion and release it.
37
37
14
54
