Wiring
• Before installation, make
sure that power has
been switched off at the
breaker and check that
the circuit is dead with a
voltage tester.
• After installation, verify
wiring is correct to
avoid damage to the
power pack, lighting,
and control devices.

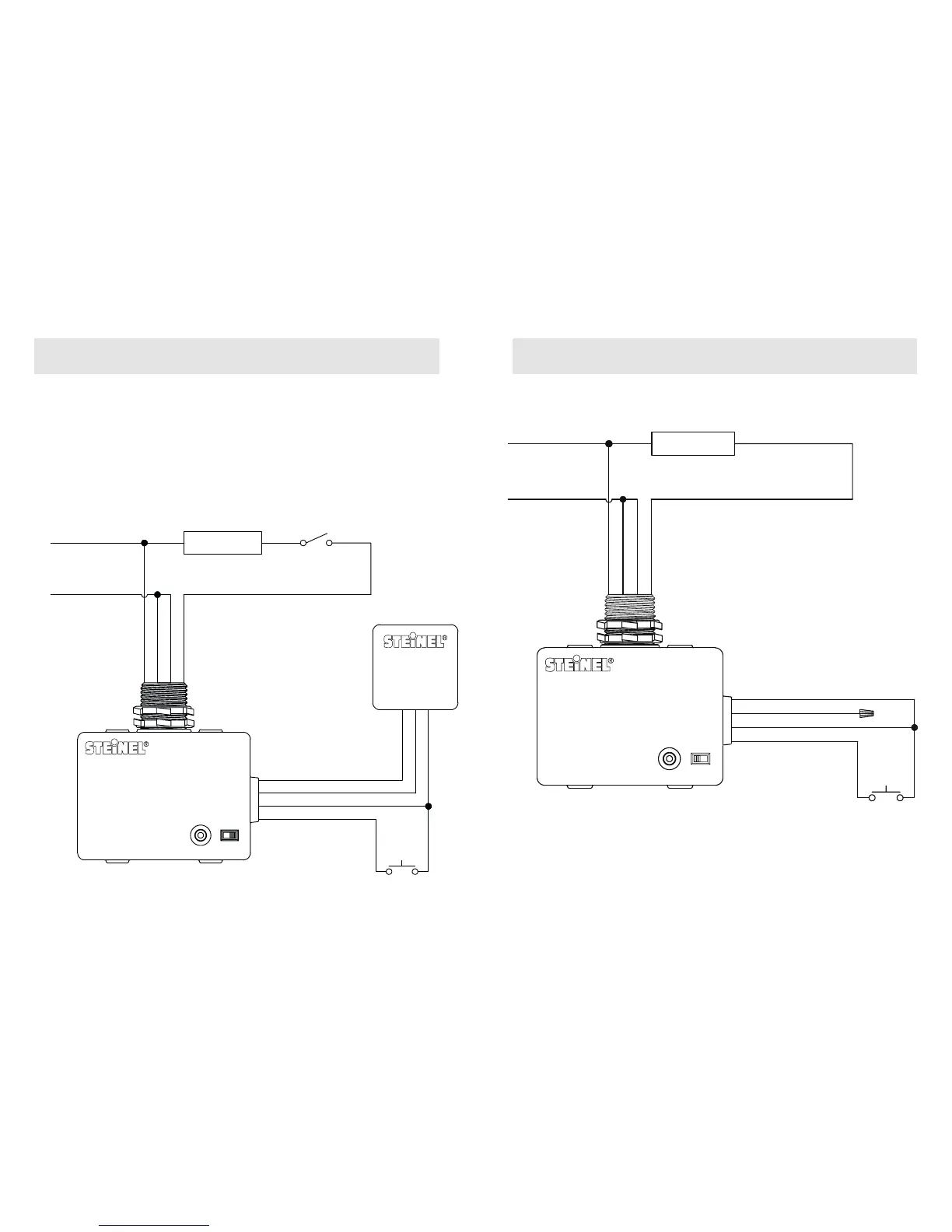

TR 100 wiring
WHITE (NEUTRAL) BLACK (HOT) RED (RELAY) RED (RELAY)
LOAD
NEUTRAL
HOT
Model#
TR100
Power Pack
24VDC
Sensor
LINE VOLTAGE
SWITCH
BLUE (CONTROL) BLACK (-24VDC) RED (+24VDC)
BLUE (CONTROL)
BLACK (-24VDC)
RED (+24VDC)
GRAY (MOMENTARY SWITCH)
Momentary switch
9
Wiring
TR 100 wiring with
momentary switch
BLUE (CONTROL)
BLACK (-24VDC)
RED (+24VDC)
GRAY (MOMENTARY SWITCH)
Momentary switch
WHITE (NEUTRAL) BLACK (HOT) RED (RELAY) RED (RELAY)
NEUTRAL
HOT
Model#
TR100
Power Pack
Manual/auto
LOAD
