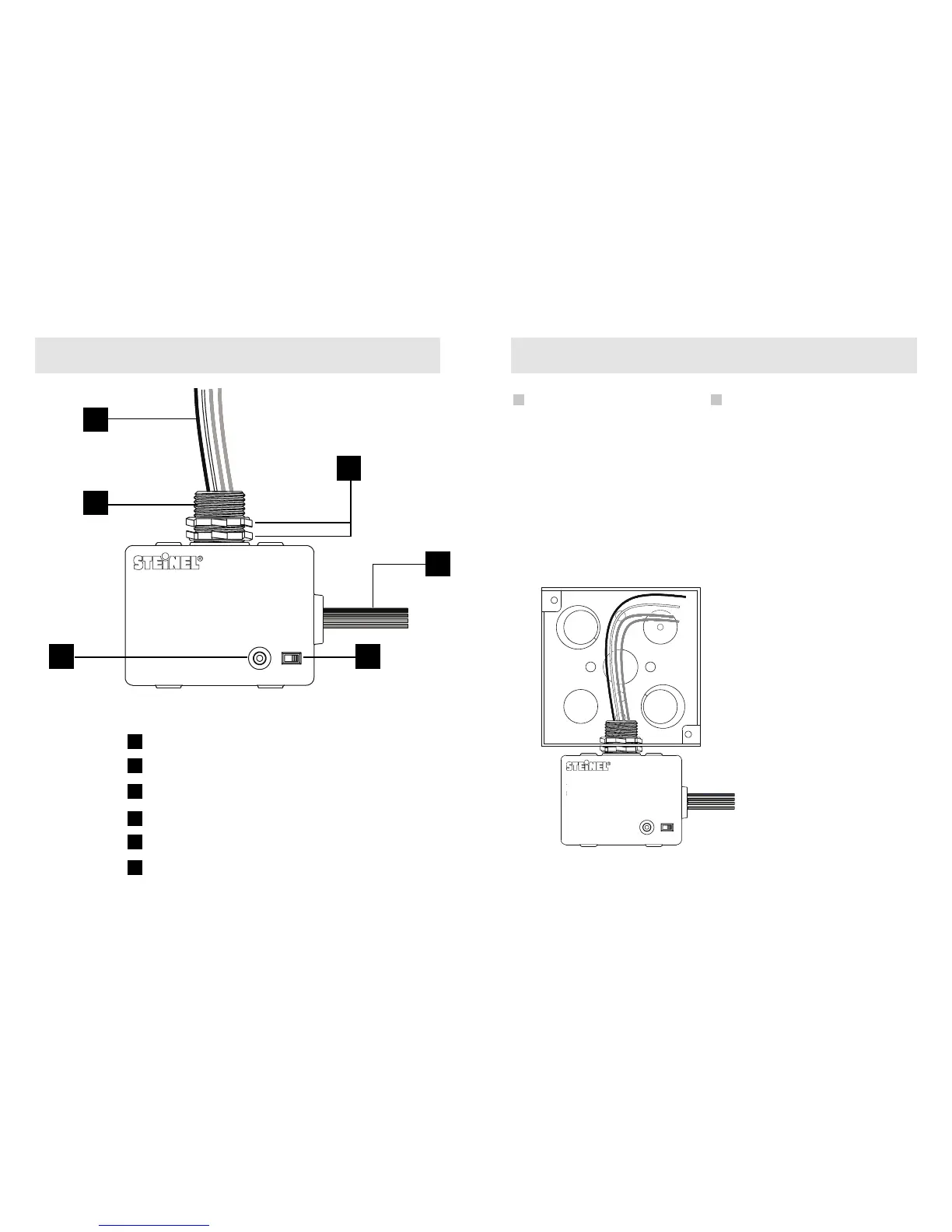

Product Overview
Model#
TR100
Power Pack
Line voltage wires
1/2 inch threaded chase nipple
Two lock nuts
Low voltage wires
Manual/automatic mode switch
LED status indicator
2
3
5
4
6
2
1
3
4
5
6
1
7
Mounting
Mounting guidelines
• The TR 100 and TR
150 power packs
mount to a junction
box with 1/2 inch
knockouts.
Mounting instructions
• Remove the top lock
nut from the 1/2”
chase nipple.
• Place line voltage
wires and 1/2” chase
nipple through 1/2”
knockout.
• Reinstall the lock nut
and tighten.
