20
The Activation Mode Selector Switch is located on the left rear of the
DBAL-I
2
housing. It is used to select between the various modes of operation
when the Remote Cable Switch or the Integrated Momentary Activation
Switch is depressed. The Activation Mode Selector Switch has six positions.
See Table 3-1.

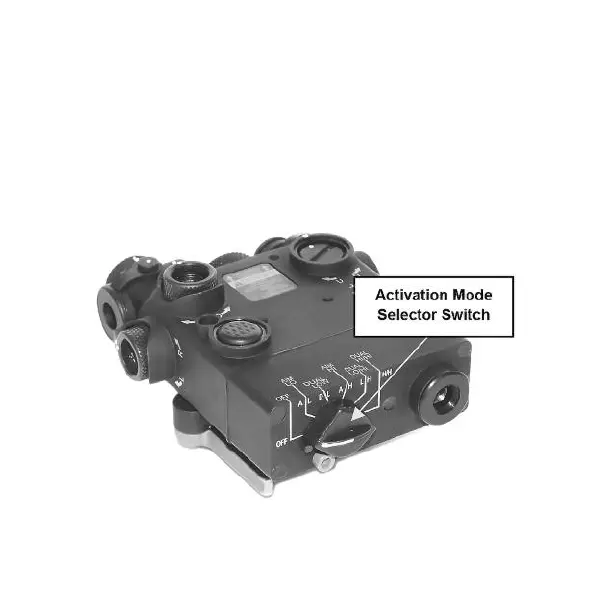

Figure 3-2 Activation Mode Selector Switch
