25

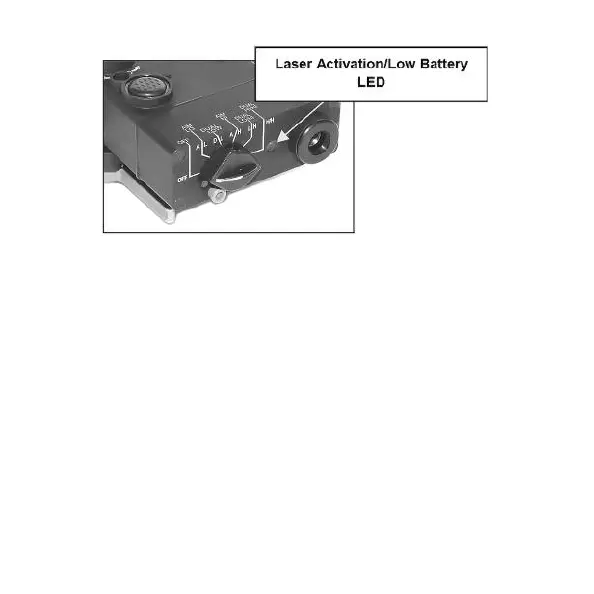

Figure 3.5 Laser Activation/Low Battery LED
3.2.f Remote Cable Switch
CAUTION
DO NOT remove the Remote Cable Switch by pulling on the cable.
NOTE
When installing the Remote Cable Switch, twist the plug into the remote cable port.
The DBAL-I
2
Activation Mode Selector Switch must be turned to a laser setting
to use the Remote Cable Switch.
DBAL-I
2
will not operate if the rotary switch is not aligned with the marked
switch position.
