The Remote Cable Switch plugs into the back of the DBAL-I
2
for weapon
mounted use as shown in Figure 3-6. Pressing the Remote Cable Switch
activates the DBAL-I
2
in the operational mode and power level selected by the
Activation Mode Selector Switch (e.g. A/L, D/L, A/H, etc). When the remote cable
switch is released, the DBAL-I
2
turns off.
In the Momentary Mode when the Remote Cable Switch has been double-
clicked, the DBAL-I
2
will be activated in a constant ON mode for 5 minutes or
until the Remote Cable Switch is pressed once again to return the unit to
momentary activation. When the Remote Cable Switch is installed into the
DBAL-I
2
, it automatically locks in place. To remove it, pull back on the plug’s
sleeve. DO NOT remove the Remote Cable Switch by pulling on the cable.

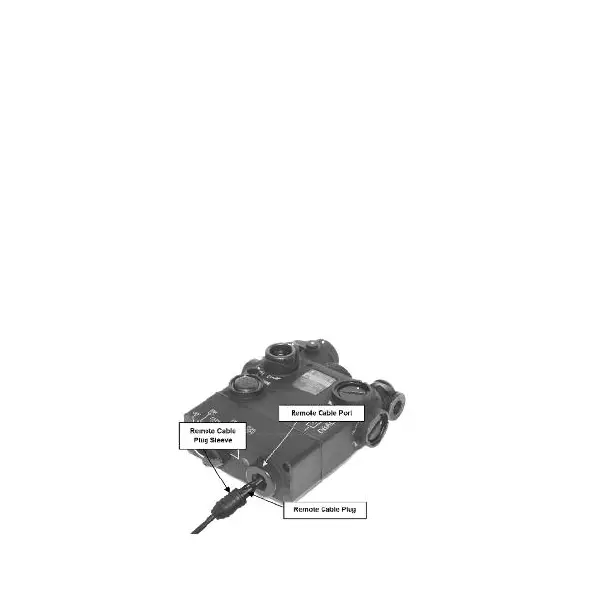

Figure 3.6 Installation of Remote Cable Switch
