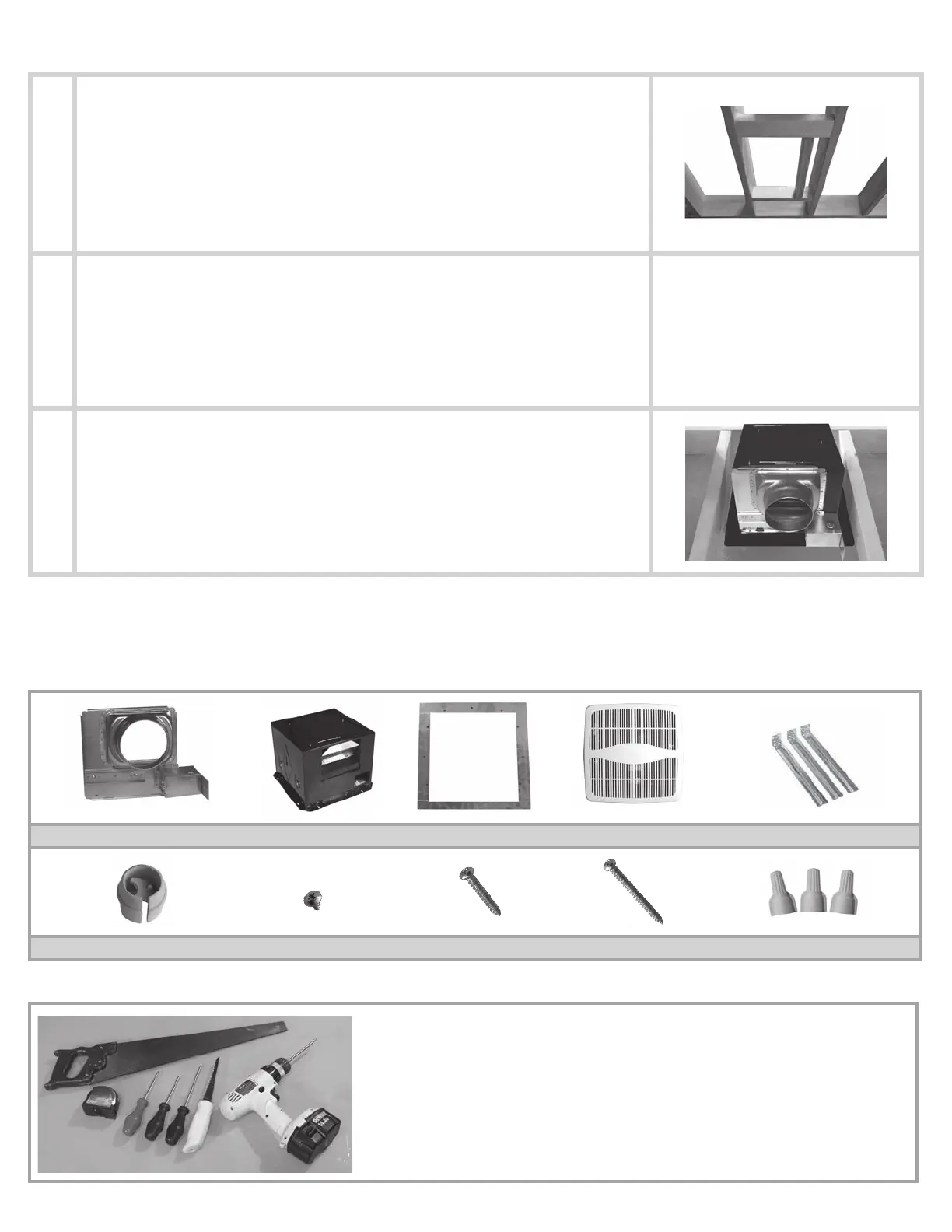

3 INSTALLATION METHODS
A)
INSTALLATION USING WOODEN HEADERS (not included)
• Method used only on unfinished ceilings (see also alternate method B).
• Requires the installation of headers between ceiling joists.
p. 4
B)
INSTALLATION USING SLIDING BRACKETS (included)
• Method used only on unfinished ceilings (see also alternate method A).
p. 6
C)
INSTALLATION IN FINISHED CEILINGS USING A
MOUNTING BRACKET (included)
• Method used on a finished ceiling or when replacing an existing fan. Access to the attic
not required.
p. 8
N.B. Some steps are easier to complete with the help of a co-worker The fan can also be wall-mounted. However, this installa-
tion could impede the proper operation of the back draft damper and, therefore, the unit performance.
COMPONENTS
Adaptor and wiring compartment Housing Mounting bracket Grill Sliding brackets (x3)
Cable clamp Screw 1⁄2 po (x4) Screw 1 po (x2) Screw 1 1⁄2 po (x8) Wire connectors (X3) (marettes)
TOOLS
• Hand saw (installation method using headers)
• Measuring tape
• Phillips screwdriver
• Flat head screwdriver
• Robertson screwdriver
• Utility knife
• Drill (optional)
3
