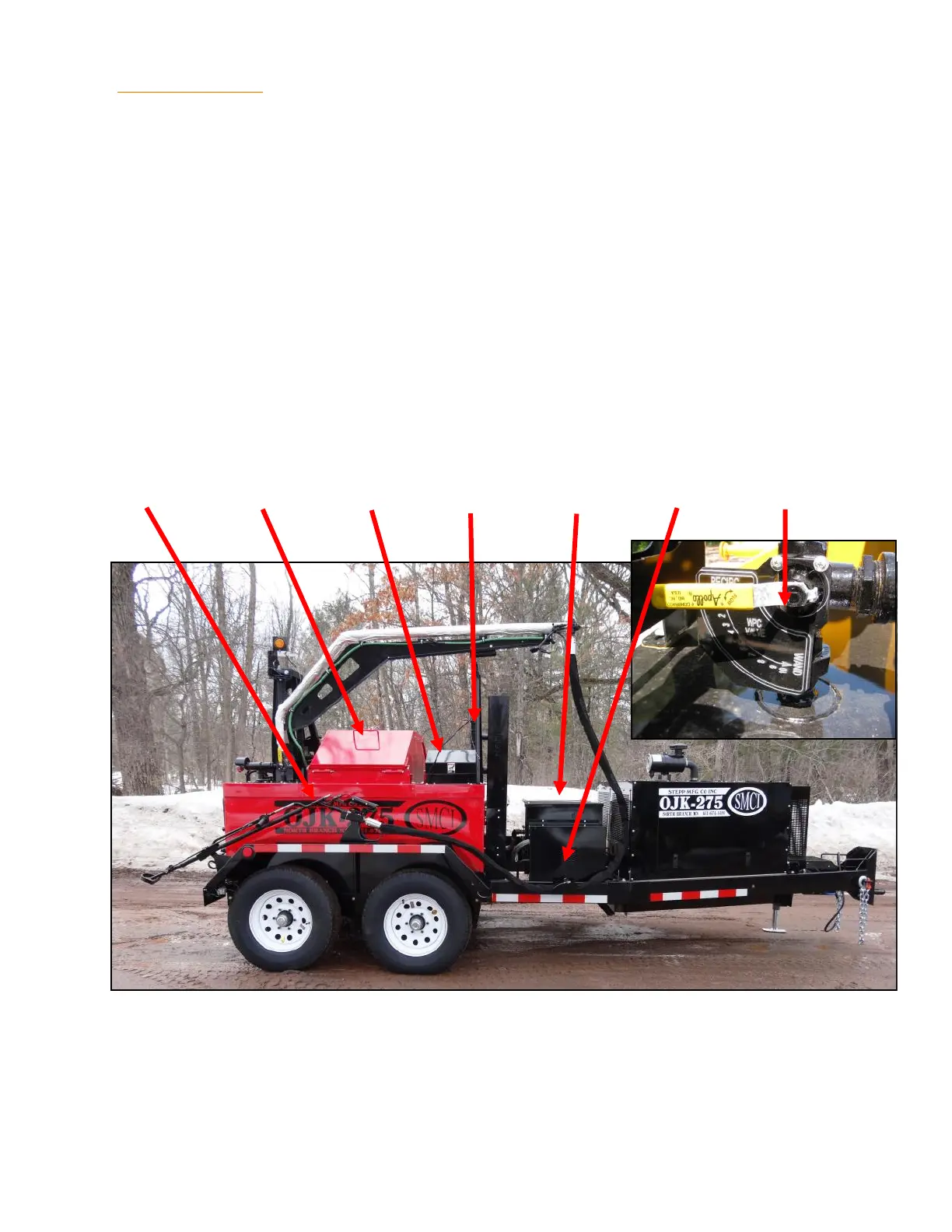

DESCRIPTION Component Location
1. Wand Pressure Control (WPC) Valve — Controls the amount of pressure being applied to
the hose & wand when the pump saver system is not being used. Also allows the operator
to divert the flow of material back to tank for circulation, or to the wand for application to
the road surface.
2. Safety Loading Chute — Provides a "splash free" way of loading product into a hot tank.
3. Dip Stick / Fill Cap — Provides a way to check and fill the heat transfer oil tank.
4. Expansion Tank — Provides room for the heat transfer oil to expand and allows the oil to
cool. This creates a "cold seal" effect allowing safer operation at elevated oil tempera-
tures.
5. Heat Exchanger Chamber — Exchanges heat from the burner to the heat transfer oil.
6. Oil Pump Drive Motor — Drives the heat transfer oil circulation pump.
7. Wand and Hose — Provides a means of applying the product to the road surface.
1.
3.
2.
4.
5.
7. 6.
