Sterling SHA8 - Connections

6
SHA8
PROFESSIONAL 8-CHANNEL HEADPHONE AMP
CONNECTIONS
The SHA8 uses the connector types below, for which the pin
assignment must comply with the following specification. Always
make sure to use good connectors and cables to ensure proper
operation. Balanced connections are to be preferred over
unbalanced connections where applicable and feasible. Avoid
unbalanced connections exceeding 2m of cable length for
optimum results.

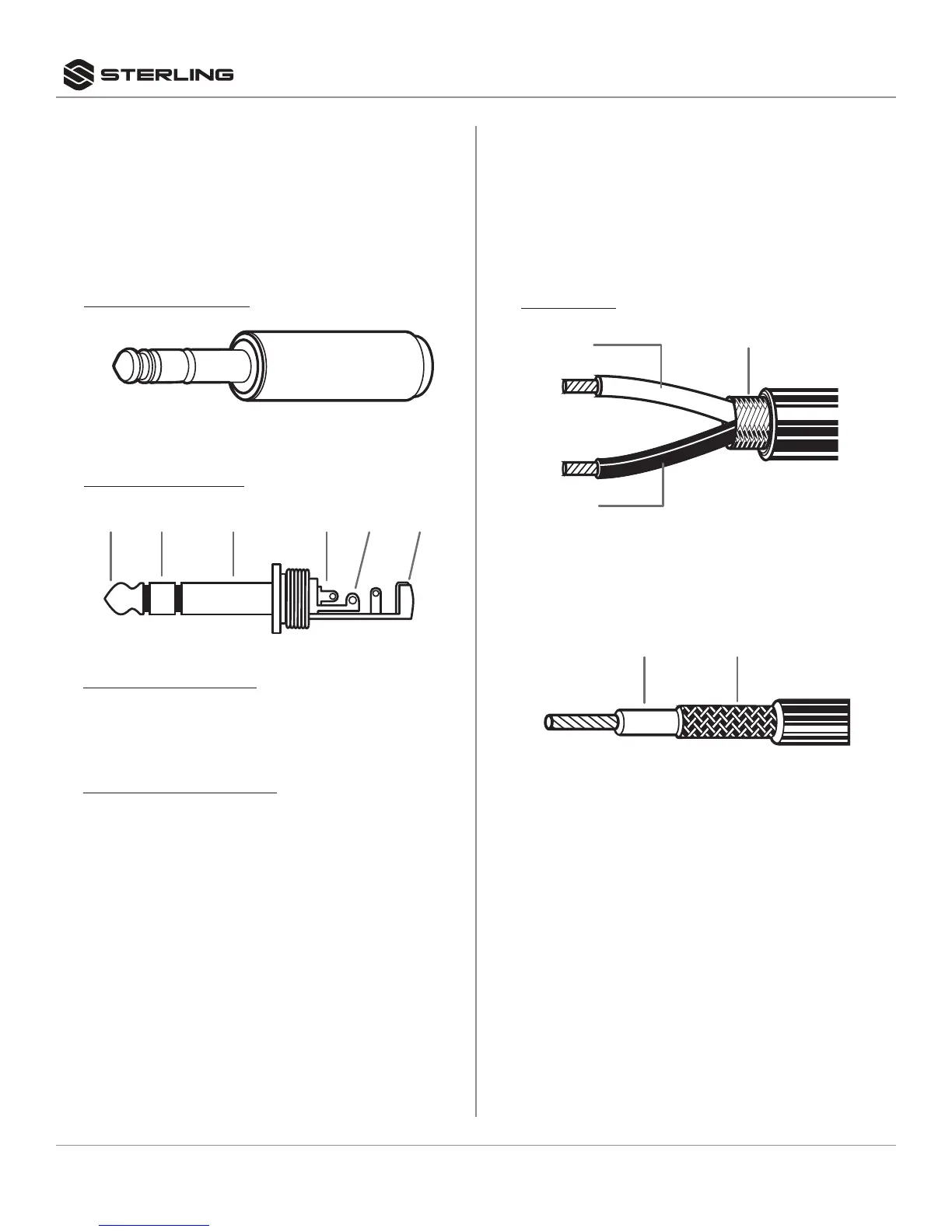

1/4”MM TRS-STEREO TIP
CABLE TYPES
CABLE TIP STRUCTURE
BALANCED CONNECTION
Red = Tip
Black = Ring
Shield = Sleeve
UNBALANCED CONNECTION
Mono Wiring
Red = Tip
Shield = Sleeve + Ring
Stereo Wiring (Headphones)
Left = Tip
Right = Ring
Shield = Sleeve
Tip Tip Ring SleeveRing Sleeve
1-conductor shielded cable
(for balanced connections)
ShieldRed
2-conductor shielded cable
(for balanced connections)
Red
Black
Shield
