Operation Manual (Version: B) 35 Type SP
6. Lower the movable tube until it rests in the bracket on the front angle.
7. Place the locking pin back in the best fitting hole and secure it with the spring
cotter.
8. Switch the main switch to "1".
9. Press [deck up] briefly. The deck and the lip will descend until it rests on the
maintenance support.

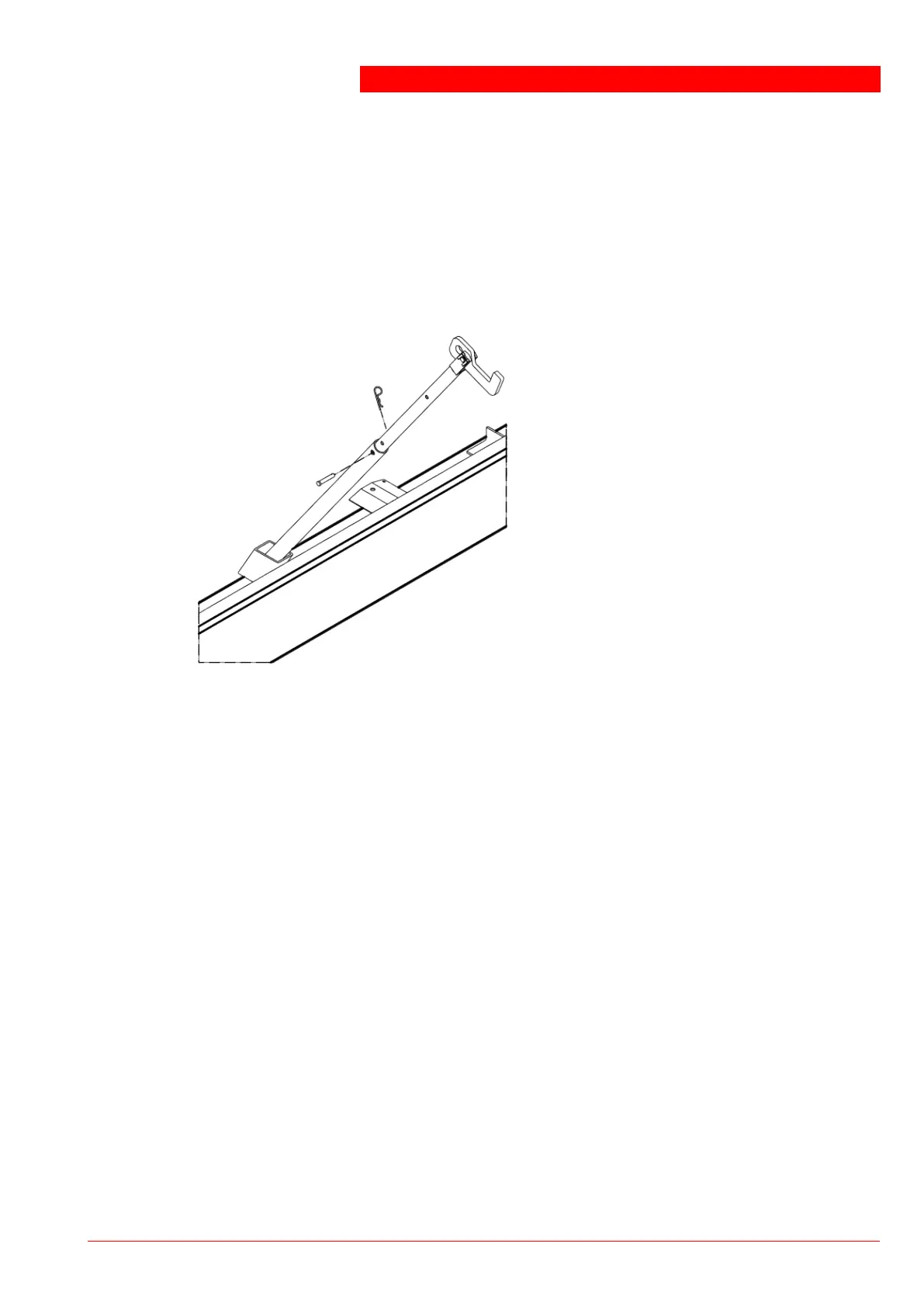

Maintenance support
Remove the maintenance support
To remove the maintenance support:
1. Press [deck up] continuously to move the deck to the highest position with the lip
completely extended.
2. When the deck is at the highest position, switch the main switch to "0". The deck
will stay in the highest position.
3. Release [deck up].
4. Remove the spring cotter and remove the locking pin.
5. Slide the movable tube of the maintenance support upwards until you have the
minimum length.
6. Place the locking pin back in the best fitting hole and secure it with the spring
cotter.
7. Place the maintenance support back into its brace under the deck.
