Assembly procedures
 S25R
1. Check the contents//Accompanying parts, required tools, & others…

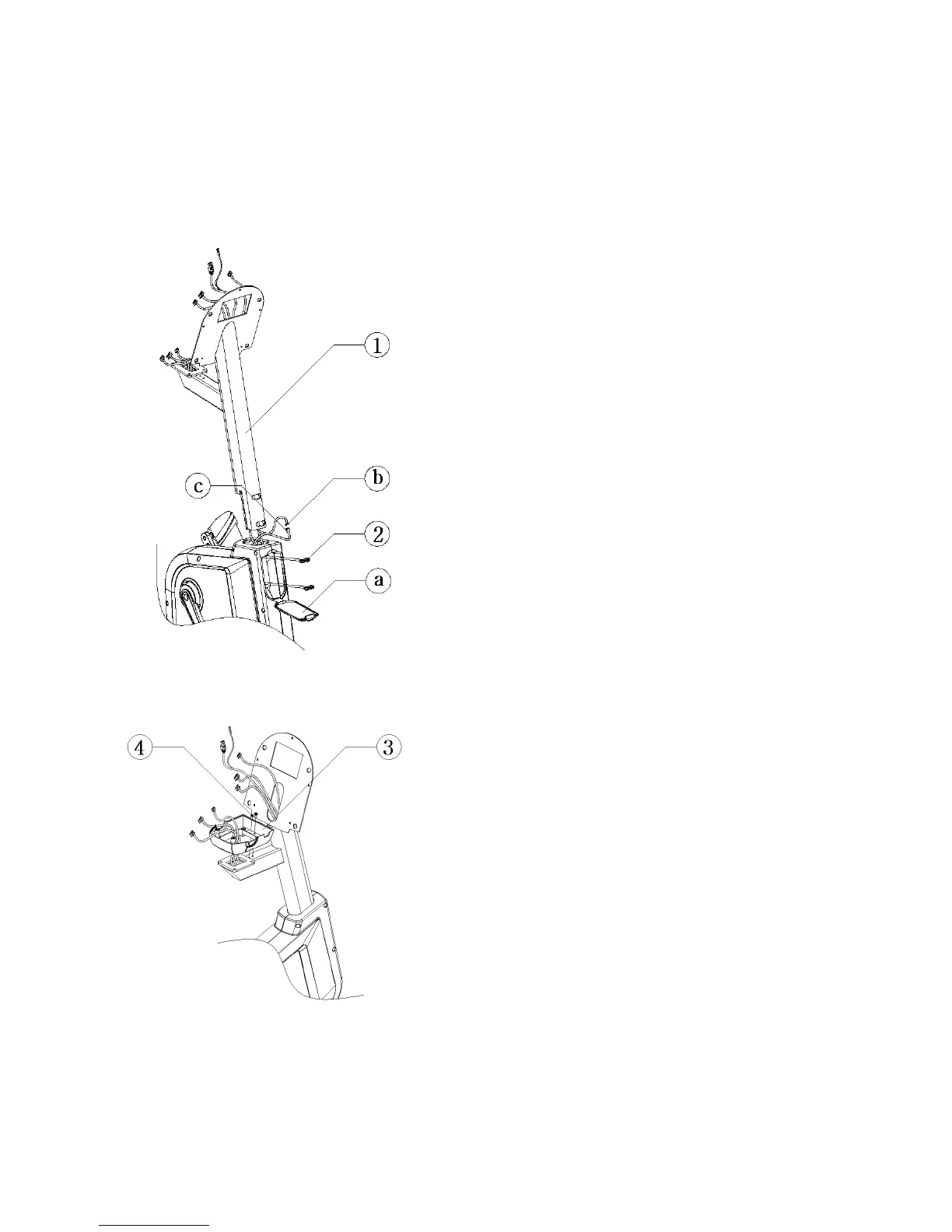

2. Secure the DISPLAY CONSOLE SUPPORT COLUMN(1).
1) Open the FRONT CAP(a) of the base frame.
2) Feed the wires through the DISPLAY CONSOLE SUPPORT
COLUMN(1).
3) Connect the HEART RATE CABLE(b) leading from the
DISPLAY CONSOLE SUPPORT COLUMN to the wire(c)
leading from the base frame.
4) Slide the DISPLAY CONSOLE SUPPORT COLUMN over
the front part of a base frame as shown. Secure the DISPLAY
CONSOLE SUPPORT COLUMN using four M620mm
SCREWS(2).
5) Close the FRONT CAP of the base frame.
Note: Be careful not to pinch wires.
3. Secure the FAST TRACK_BOTTOM COVER(3).
1) Position the FAST TRACK_BOTTOM COVER(3) as shown.
2) Secure the FAST TRACK_BOTTOM COVER using two
M512mm SCREWS(4).
Note: Be careful not to pinch wires.
