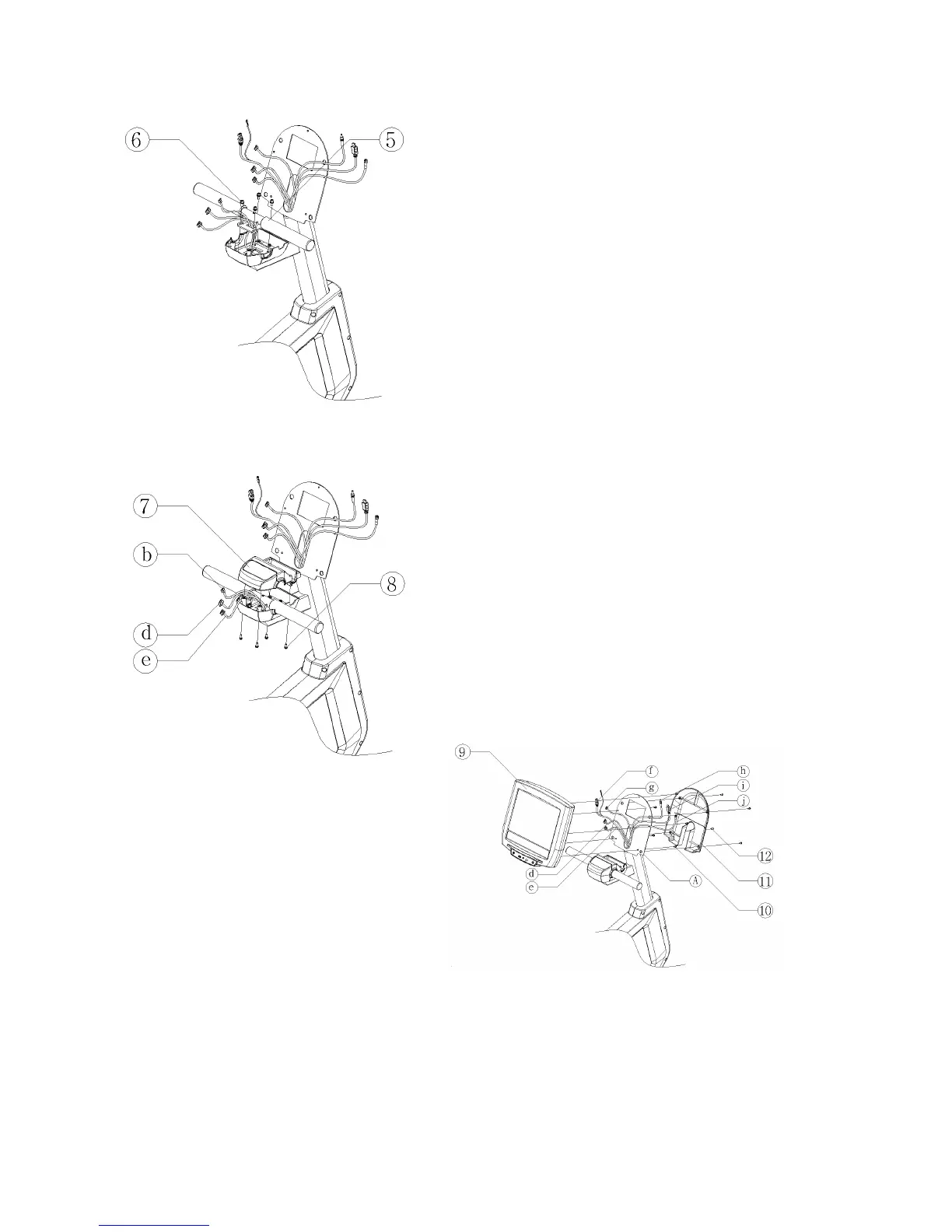

1) Position the front HANDLEBAR(5) as shown near the upper
DISPLAY CONSOLE SUPPORT COLUMN.
2) Secure the HANDLEBAR to the upper DISPLAY CONSOLE
SUPPORT COLUMN using four M615mm SCREWS(6).
Note: Be careful not to pinch wires.
5. Secure the FAST TRACK_TOP COVER(7).
1) Position the FAST TRACK_TOP COVER(7) as shown.
2) Connect the HEART RATE CABLES(b, d) and FAST
TRACK CABLE(e) leading from the upper DISPLAY
CONSOLE SUPPORT COLUMN to their respective locations
in the back of the FAST TRACK_TOP COVER.
3) Secure the FAST TRACK_TOP COVER using four
M512mm SCREWS(8).
Note: Be careful not to pinch wires.
6. Secure the DISPLAY CONSOLE(9).
1) Position the DISPLAY CONSOLE(9) as shown.
2) Connect the HEART RATE CABLE(d) and FAST TRACK CABLE(e), the MAIN CONSOLE CABLE(f) and RS-232
CABLE(g, optional) the POWER CABLE(h), the HDMI CABLE(i, optional), and COAXIAL CABLE(j) leading
from the upper DISPLAY CONSOLE SUPPORT COLUMN to their respective locations in the back of the DISPLAY
CONSOLE.
Note: Be careful not to pinch wires and be sure all connectors are fully seated.
