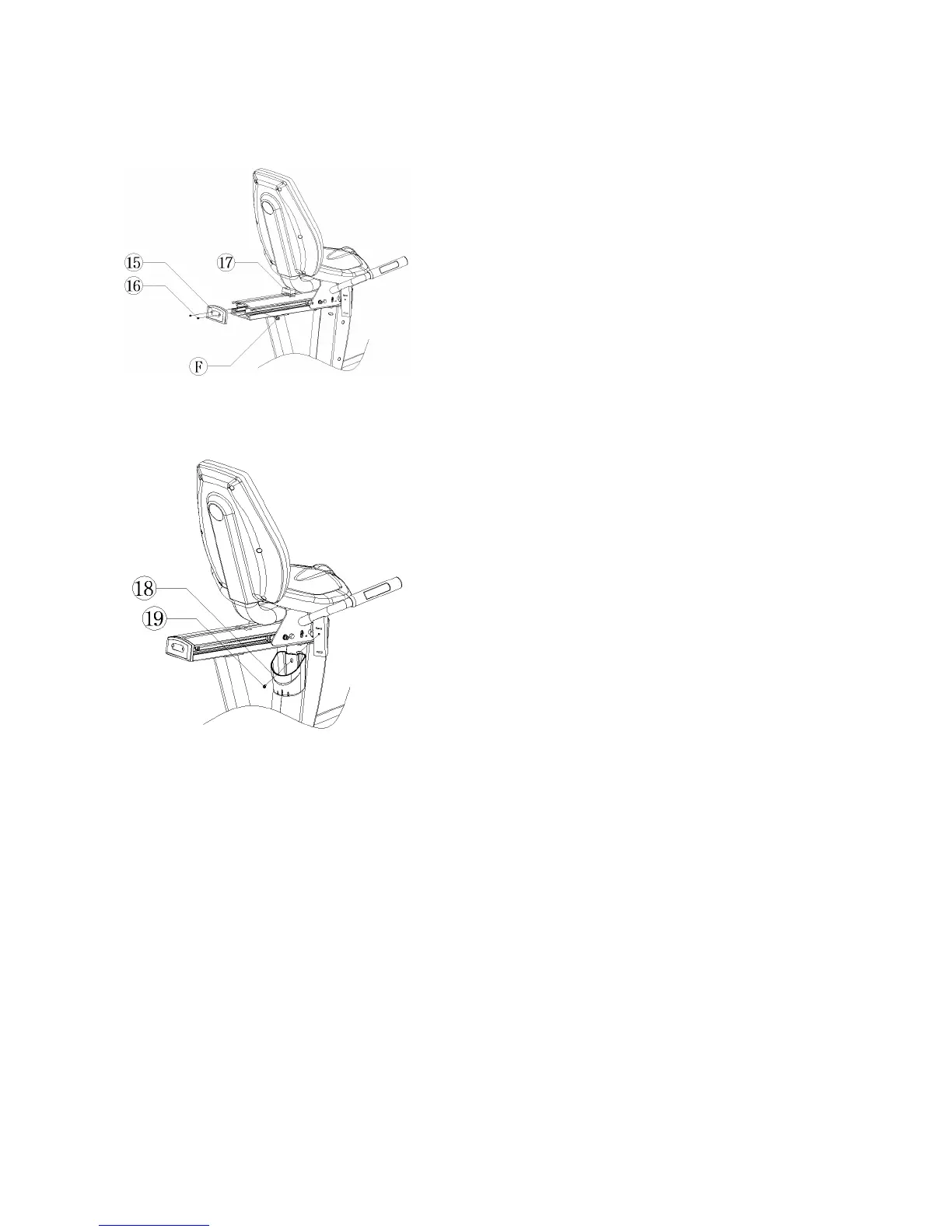

9. Secure the LM GUIDE CAP(15) and insert the RUBBER(17).
1) Position the LM GUIDE CAP(15) as shown with the flat
surface facing outside.
2) Secure the LM GUIDE CAP to the Aluminum LM GUIDE
using two M410mm SCREWS(16).
Note: → Be careful not to over-tighten the screws.
3) Fasten the M820mm SCREW(F) as shown.
Note: → Be careful not to over-tighten the screws.
Note: → Insert the nut and flat washer.
4) Insert the RUBBER(17) as shown.
10. Attach the CUP HOLDER(15).
1) Position the CUP HOLDER(18) as shown.
2) Secure the CUP HOLDER using one M512mm SCREW(19).
Note: Do not overtighten the SCREW.
11. Turn a leveler.
① Place the exercise bike in its intended location for use.
② Check the stability of the bike. If the exercise bike is not level, turn a leveler in the front & rear foot-pipe in either
direction until the rocking motion is eliminated. Tighten the nut when the exercise bike is level.
12. Connect external wires.
