12 | DHE AU www.stiebel-eltron.com
INSTALLATION

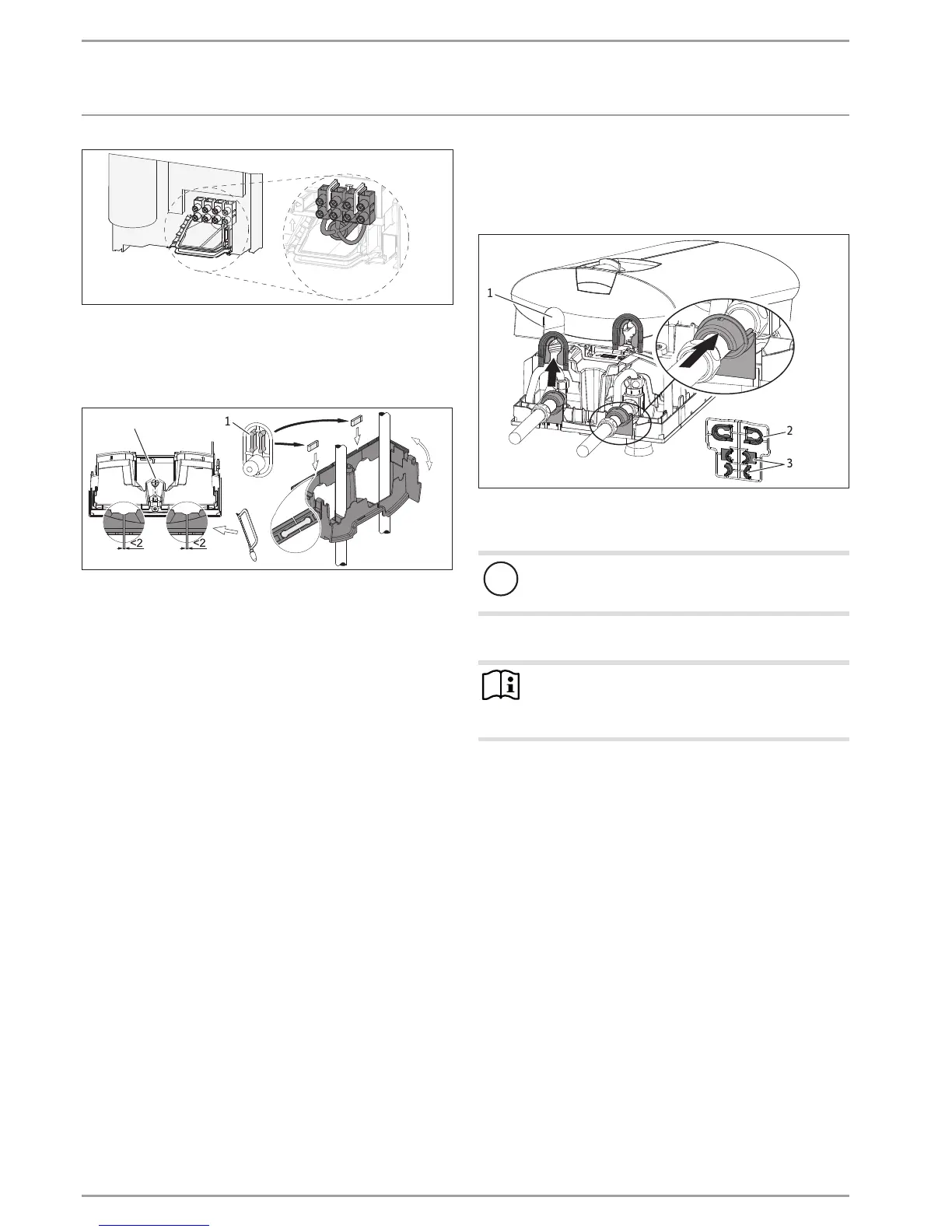

Installation
26�02�02�1122�
Connect the power cable to the mains terminal (see chapter
"Specification/ Wiring diagram"). The specified voltage must
match the mains voltage.
Lower back panel installation
1
2
26�02�02�1080
1 Connection pieces delivered in the pack
2 Screw
Cut open the lower part of the back panel (see illustration).
Fit the lower back panel by bending it out at the sides and
guiding it over the pipes.
Insert the connection pieces into the lower back panel from
behind.
Click the lower back panel into place.
Align the mounted appliance by loosening the fixing toggle,
aligning the power supply and back panel, and then re-tight-
ening the fixing toggle.
Secure the lower back panel with a screw.
10.2 Completing the installation
Open the shut-off valve in the cold water inlet line.
Fitting the sealing elements for the appliance cover
1
2
3
D0000040777
1 Pipe aperture
2 Cover guides
3 Back panel guides
!
Material losses
If you cut open the wrong knock-out in the appliance
cover by mistake, you must use a new appliance cover.
Cleanly cut or break out the knock-out openings in the appli-
ance cover. If necessary, use a file.
Note
You can compensate for a slight connection pipe offset
using the tabs on the cover guides. If the connection pipes
are offset, do not fit any back panel guides.
When installing connection pipes that are not offset, break
off the tabs on the cover guides.
Click the cover guides into place in the pipe apertures.
Position the back panel guides on the extensions. Push them
together. Then push the guides until they are resting against
the back panel.
