WORKSHOP MANUAL



EDITION

PAGE
90 / 124 
▶▶  






















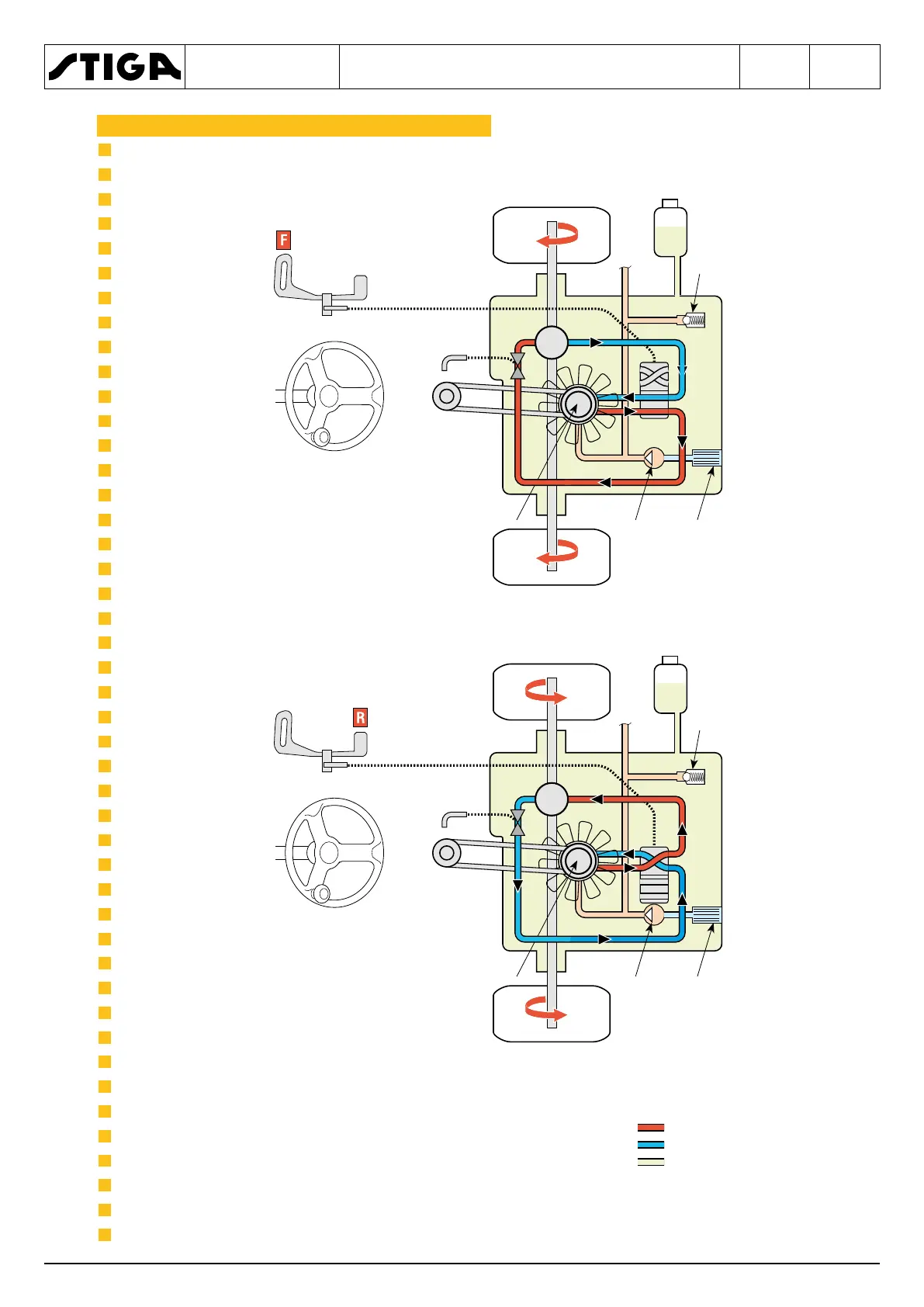

1. Rear axle
1a Loading pump (35-45 bar)
1b Main pump
1c Pressure limiter of the loading
pump
1d Oil filter
1e Rear hydraulic motor
2. Oil tank
3. Connection with the hydraulic
steering valve
4. Rear by-pass valve
10. Drive pedal

= Delivery (150 bar)
= Return
= Drainage (<1 bar)
