6

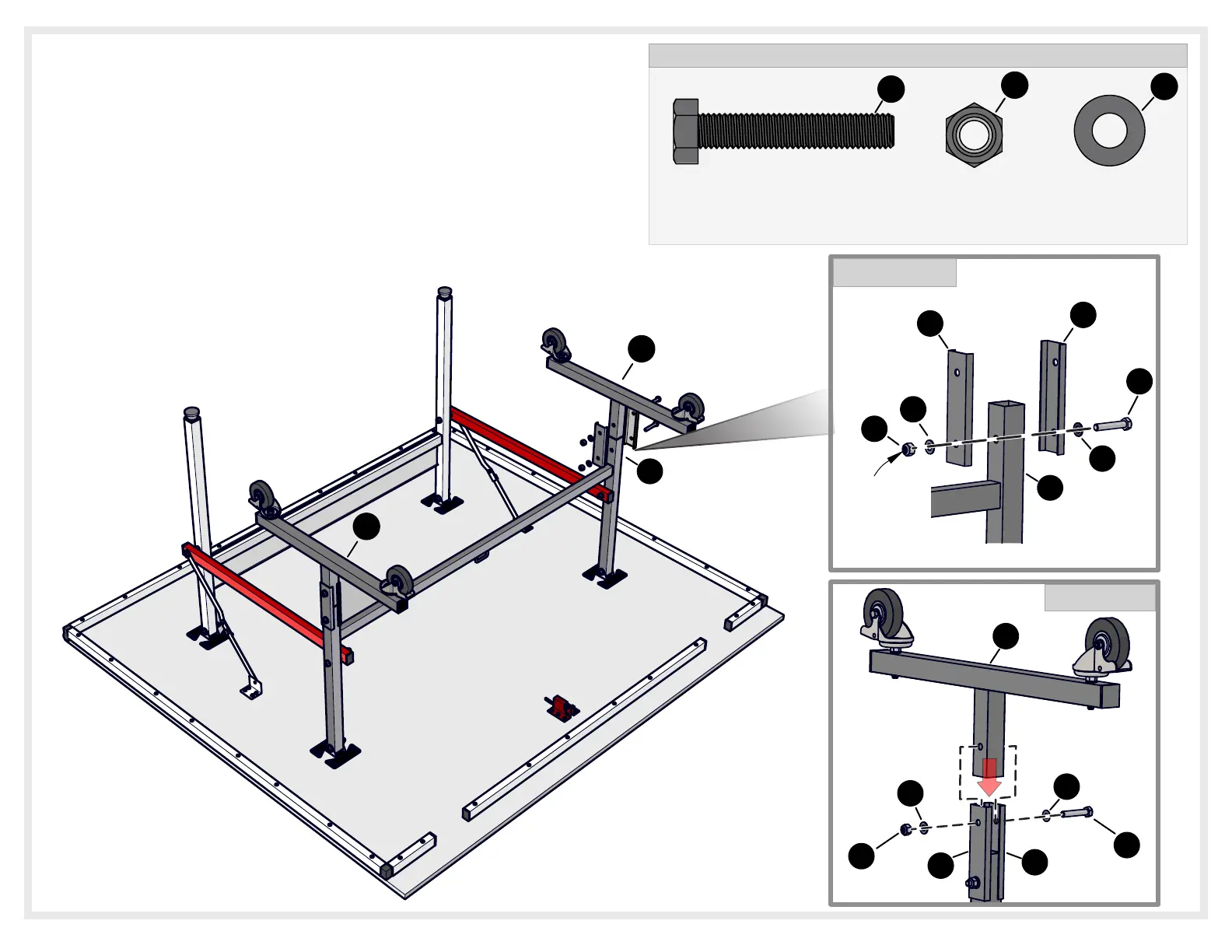

4. Insert Bolt (#4) through the Plastic Washer (#5), Connector Channel
(#3), H legs (#19), another Connector Channel (#3), another Plastic
Washer (#5) and a Locknut (#6) but do not tighten the hardware yet.
See DETAIL C.
2
8
4
2
4
6
5
DETAIL C
7B-4069-00
PLASTIC WASHER
5/16”
(QTY. 8)
5
HEX HEAD BOLT
5/16-18 X 1-3/4”
1B-4170-00
(QTY. 8)
6
NYLON LOCKNUT
5/16-18”
2B-6009-03
(QTY. 8)
5
DETAIL D
3
3
4
5
6
5
3
3
19
Do not tighten
until the next step
19
5. Insert the Caster Beam Assembly (#2) between the Connector
Channels (#3) then secure the assembly using bolts (#4), Washers
(#5), and Locknuts (#6) as shown in DETAIL D. Tighten all
hardware at this time.
2
6. Repeat steps 1-5 to assemble a second table
half.
HARDWARE NEEDED (ACTUAL SIZE)
