WORKSHOP MANUAL
T...102/122 - TC...102/122
Reattach the accelerator cable and ...
Adjust the «MINIMUM» position.
Ret the front hood.
Re set the adjuster (1) and check the spring ten-
sion.

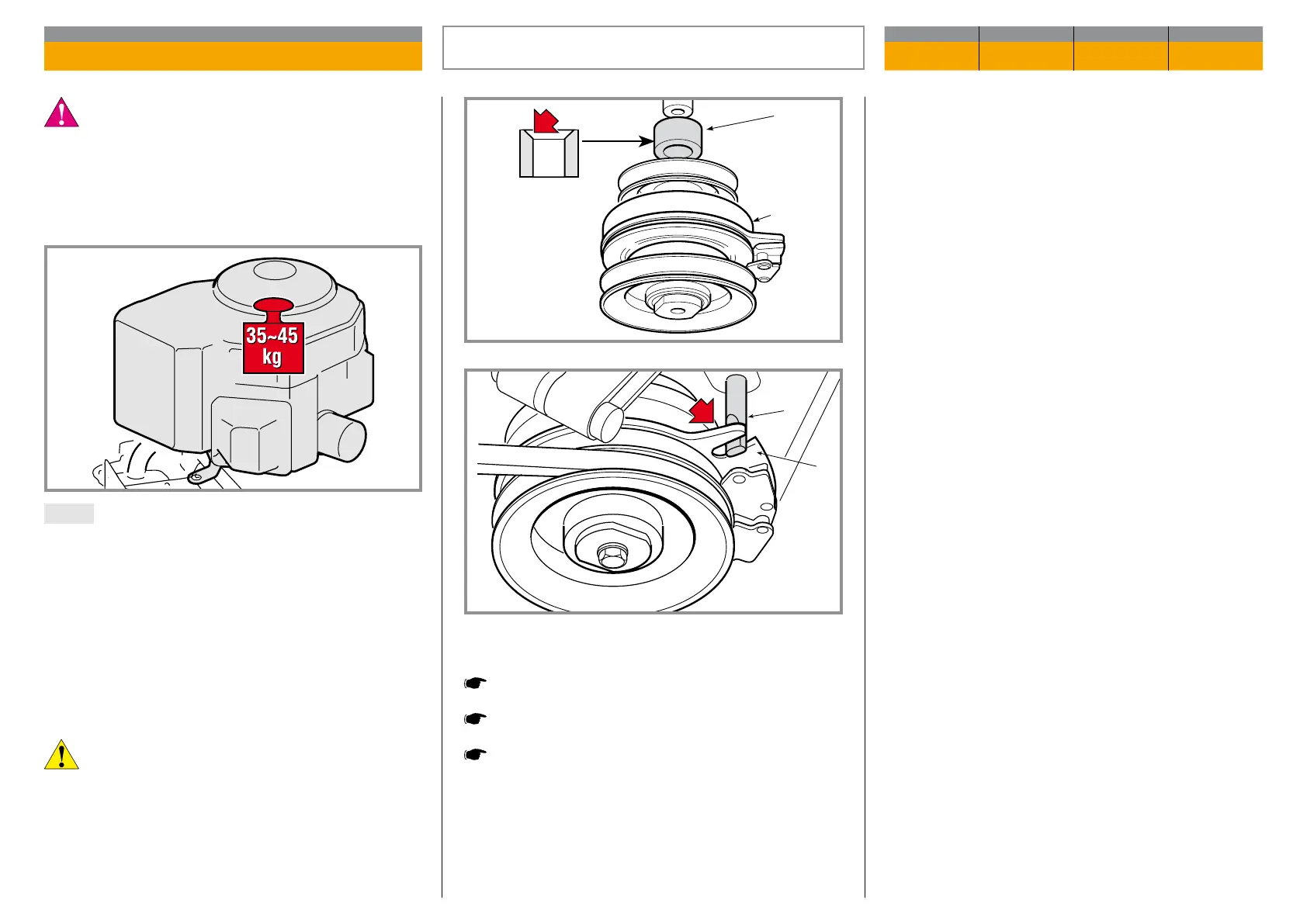

Identify and undo all the screws that fasten the
engine to the chassis, then carefully lift and remove
the engine using equipment suitable for the weight of
the engine (about 35-45 kg) and the designated lifting
points to guarantee safe working conditions.
NOTE Some engines are held with screws of dier
ent length and in dierent positions, so it is best to
label them so that no errors are made on reassembly.
On reassembly, fully tighten the screws for the en gi ne
and the pulley to the amounts shown.
Reassemble the spacer (9), with the countersink fac-
ing the engine. En su re that the pin (11) is inserted into
the clutch spli ne (7) and remember to ret the spring
(6).
Remember to t the clamps back on the fuel
pipe and check that it does not leak.
Reattach all the electrical and earth contacts and ret
the protection covers.
Reset the stret cher spring tension should it have been
slacke ned.
REMOVAL OF THE ENGINE
CHAPTER REVISION FROM ... PAGE
5.5 1 2018 2 of 2
