WORKSHOP MANUAL

T...102/122 - TC...102/122

Map of functional units

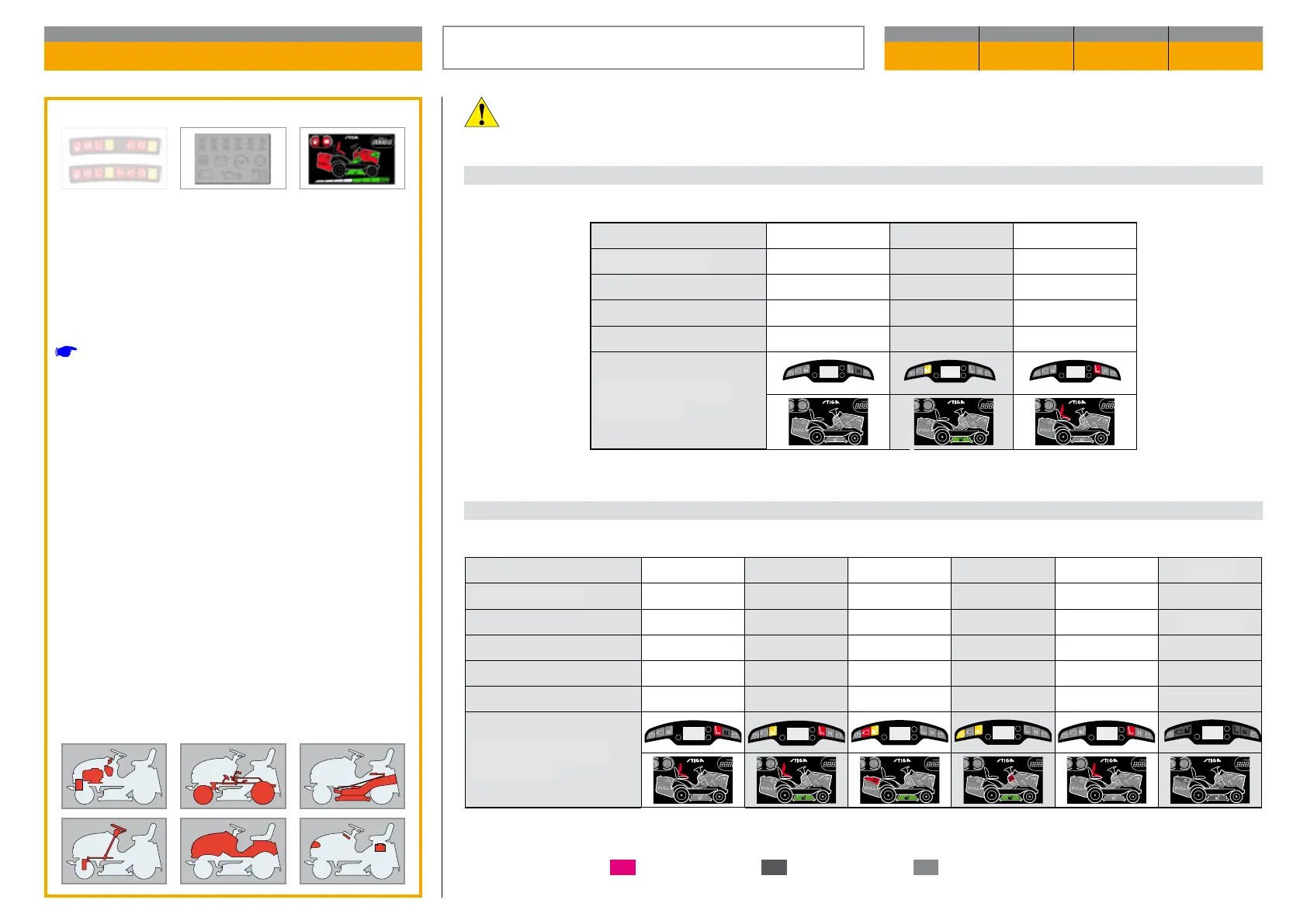

This table shows the various situations in which the sa fety devices intervene.

A) STARTING («START» position)

The engine DOES NOT start, when:

Operator –/– –/– Absent

Grass-Catcher –/– –/– –/–

Blades –/– Engaged –/–

Drive Engaged –/– –/–

Parking –/– –/– –/–

Indication on the

Dashboard

B) WHILE CUTTING

The engine STOPS start, when:

Operator Absent Absent –/– –/– Absent Seated

Grass-Catcher –/– –/– Missing –/– –/– Fitted

Blades –/– Engaged Engaged Engaged –/–

Engaged

Drive Engaged –/– –/– –/– –/– Reverse

Consent Button –/– –/– –/– –/– –/– Released

Parking –/– –/– –/– Engaged –/– –/–

Indication on the

Dashboard

–/– Irrelevant condition for the triggering of safety devices

Ж = Pilot lamp on Ж = Pilot lamp o Ж = Pilot lamp uninuential

CHAPTER REVISION FROM ... PAGE

7.12 1 2018 1 of 1

CUTTING IN OF THE SAFETY DEVICES

Validity

General informations


