Edition Manual Chapter Page
2008-05-19 Workshop Manual, Stiga Villa/Ready 3 Steering 4
Chain/Wire

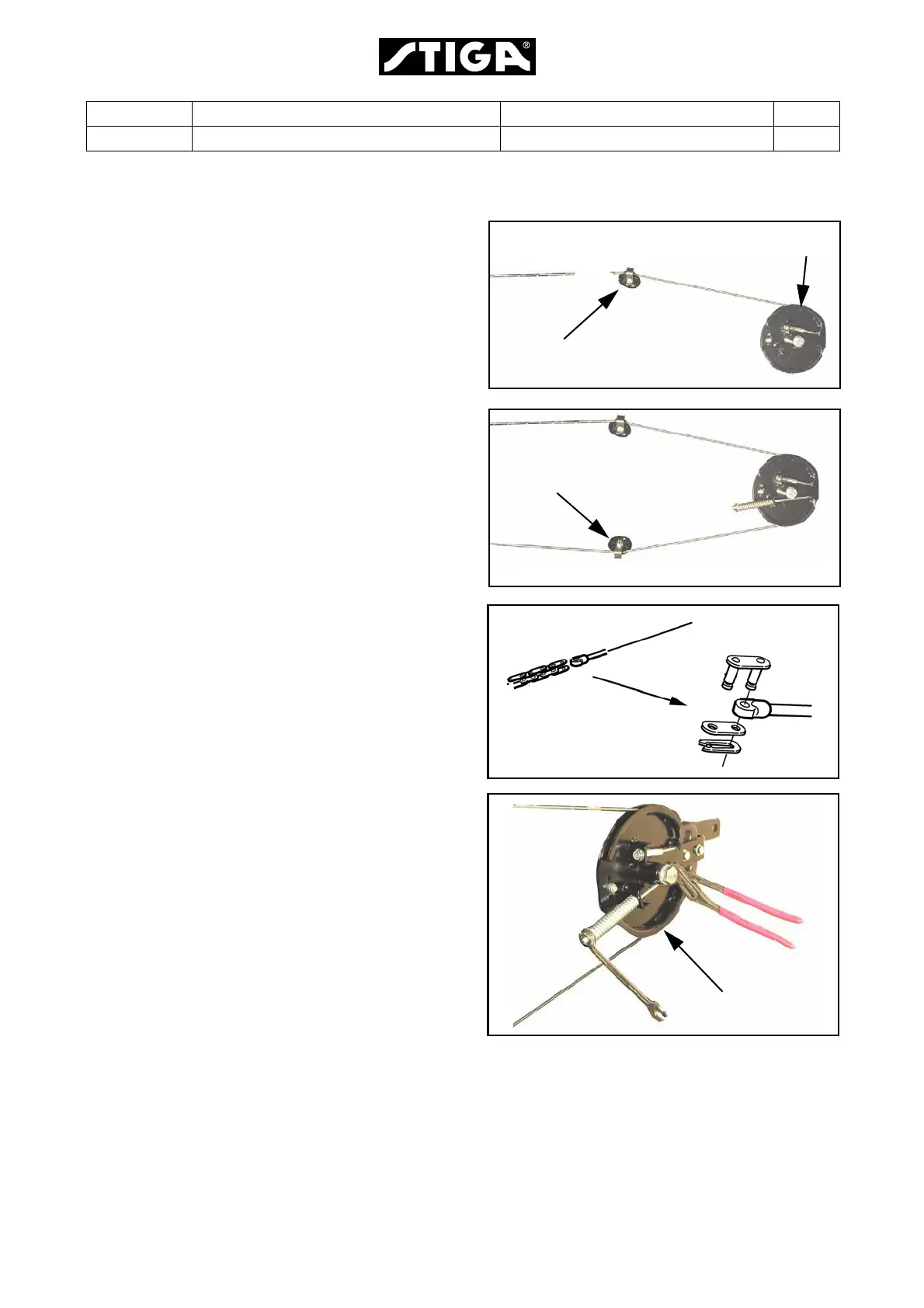

1. Assemble the left wire part into the left
steering pulley (AL). Fit the pulley into place.
See “3.1.4 Steering pulleys”.
2. Locate the wire in the recess (C) in the
steering disc and fasten with the screw. Use
a 13 mm wrench and a pliers to hold the wire
end.
3. Assemble the right wire part into the right
steering pulley (AR). Fit the pulley into place.
See “3.1.4 Steering pulleys”.
4. Connect the wires to the chain with the chain
locks.
5. Stretched up the wire and and locate it in the
recess (D) in the steering disc and fasten
with the parts below. Use a 13 mm wrench
and a pliers to hold the wire ends.
•Spring
• Washer
• M8 self locking nut
Adjust the wire.
See “3.1.5 Adjusting the steering wire”.
AL
C
AR
D
