2008-05-19 Workshop Manual, Stiga Villa/Ready 6 Control wires 4
6.4 Throttle wire
6.4.1 Dismantling
1. Open the engine casing.
2. Loosen the wire conduit at the engine and
at the throttle lever. At machines with the
throttle lever in the front panel, remove the
upper casing for acess to the lever. See
section 2.

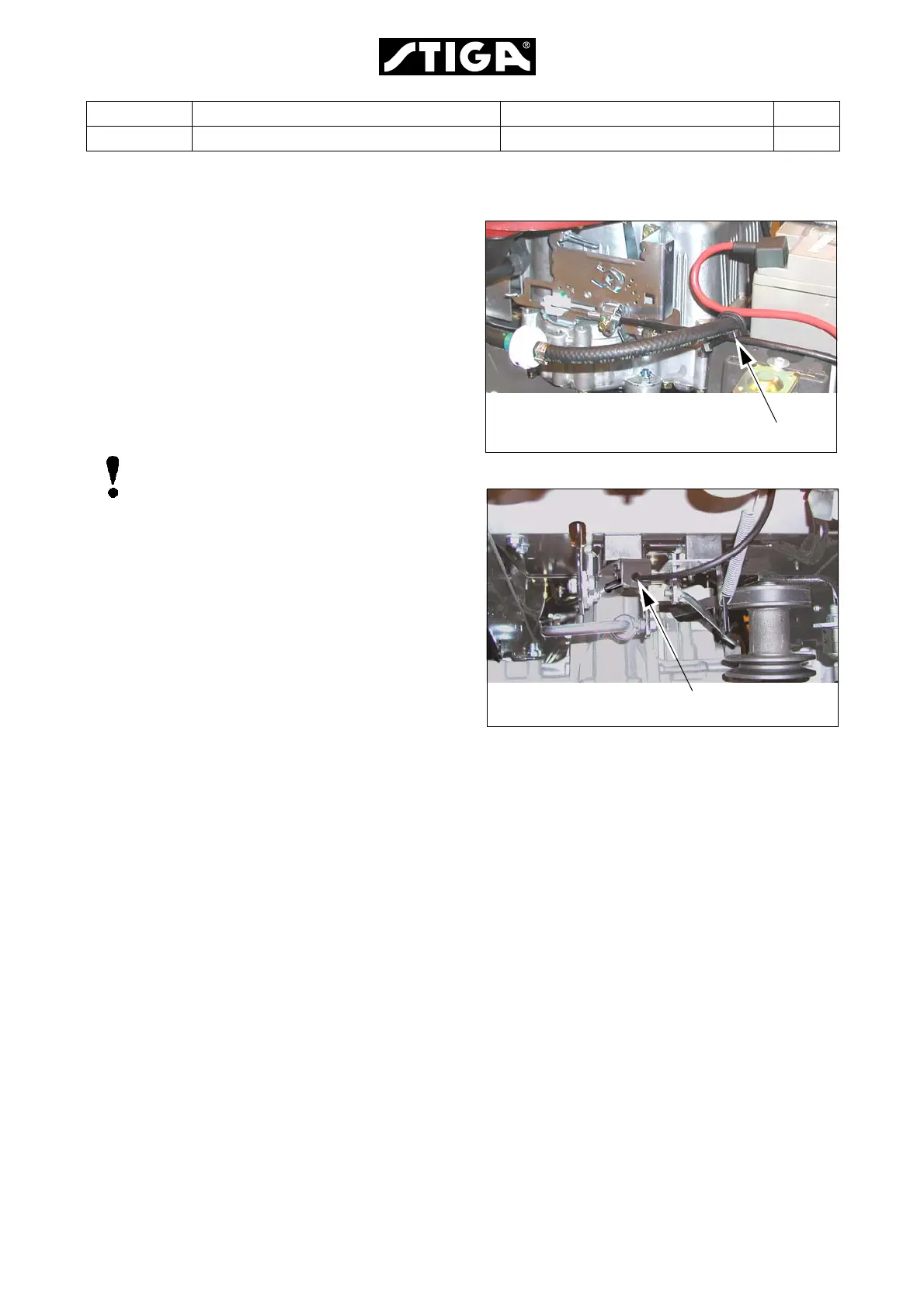

Note!
.It is not nessecary to cut the holding
strap (A).
3. Remove the wire.
6.4.2 Assembly
1. Apply a couple of oil at the wire ends while
moving it in its conduit.
2. Assemble in the reverse order.
3. Thread the wire through the holding strap
(A) and at machines with the throttle lever in
the front panel, through the holes (B).
4. Adjust the wire. See below.
6.4.3 Adjustment
1. Adjust the wire conduits at the ends until
the throttle lever can reach its end posi-
tions.
2. Fasten the conduit clamps.
3. Check the following:
• Function of the choke position
• Full throttle position
If nessecary repeat the adjustment procedure.
B
A
