Edition Manual Chapter Page
2008-05-19 Workshop Manual, Stiga Villa/Ready 5 Belts 7

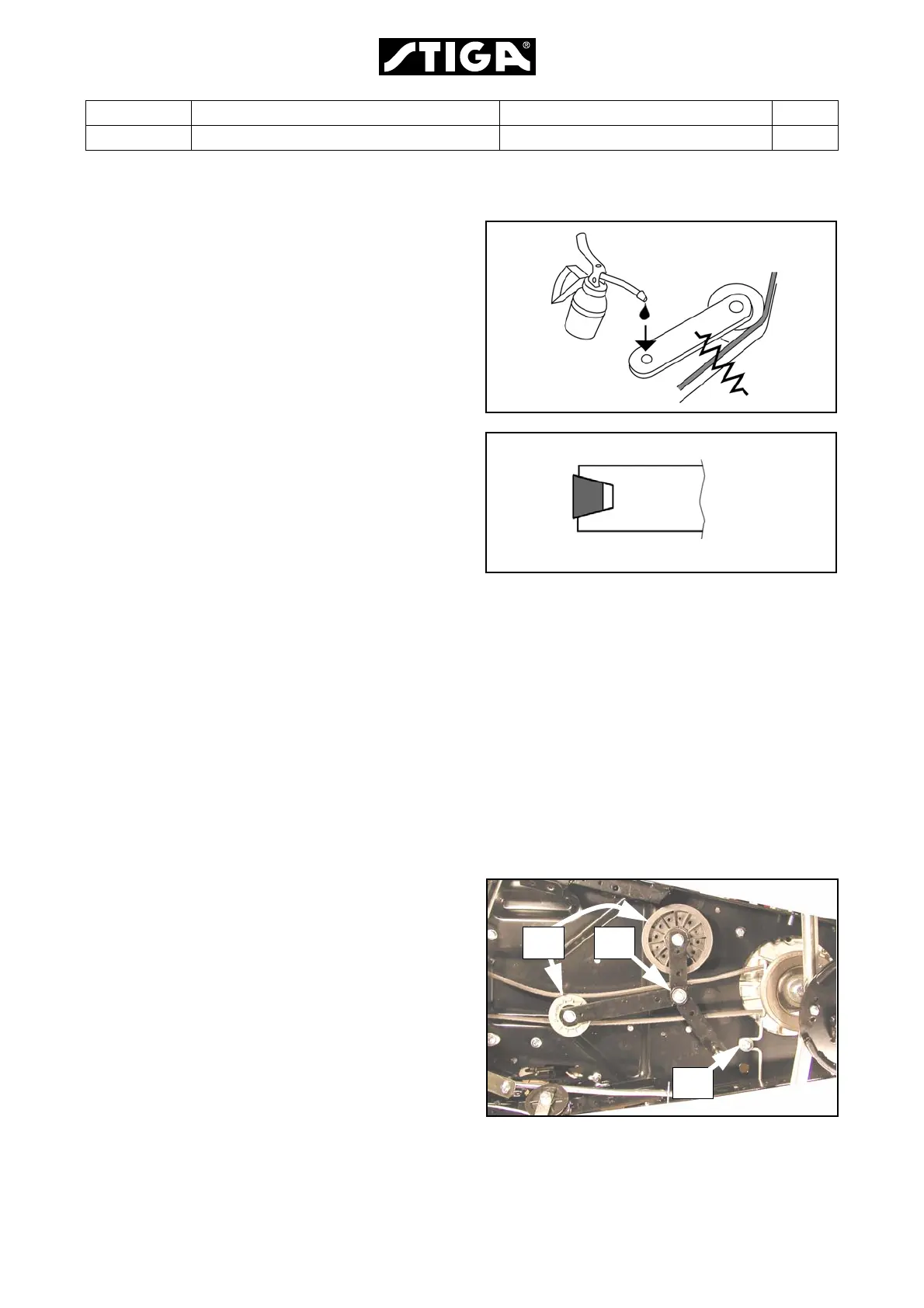

5.3.2 Inspection and measures
1. Check and lubricate all links.
• The links shall move easily and not have
any major play.
• Lubricate all pivot linkages with machine
oil.
2. Check the belts.
• The belt shall rest with its angled sides
against the pulleys. There must be a
space between belt and pulley bottom.
• The belt shall be intact. No loose parts or
cracks.
3. Check all ball bearings with respect to the
following:
• No radial play.
• The sealing shall be intact.
• No abnormal noise when rotating. Shall
rotate evenly without stop tendency.
Replace all defective parts with genuine
spare parts.
5.3.3 Assembly of belt D
Assemble all part in the reverse order.
Note the following at the assembly procedure:
1. Be carefully not to damage the fan when
fitting the belt D around the transmission
pulley (4).
2. The belt guides shall be mounted with a play
of 2-3 mm to the belt when it is stretched.
3. If the screws (H and I) cannot be tightened,
hold the respective nut at the upper side.
H
I
5
