2008-05-19 Workshop Manual, Stiga Villa/Ready 5 Belts 6

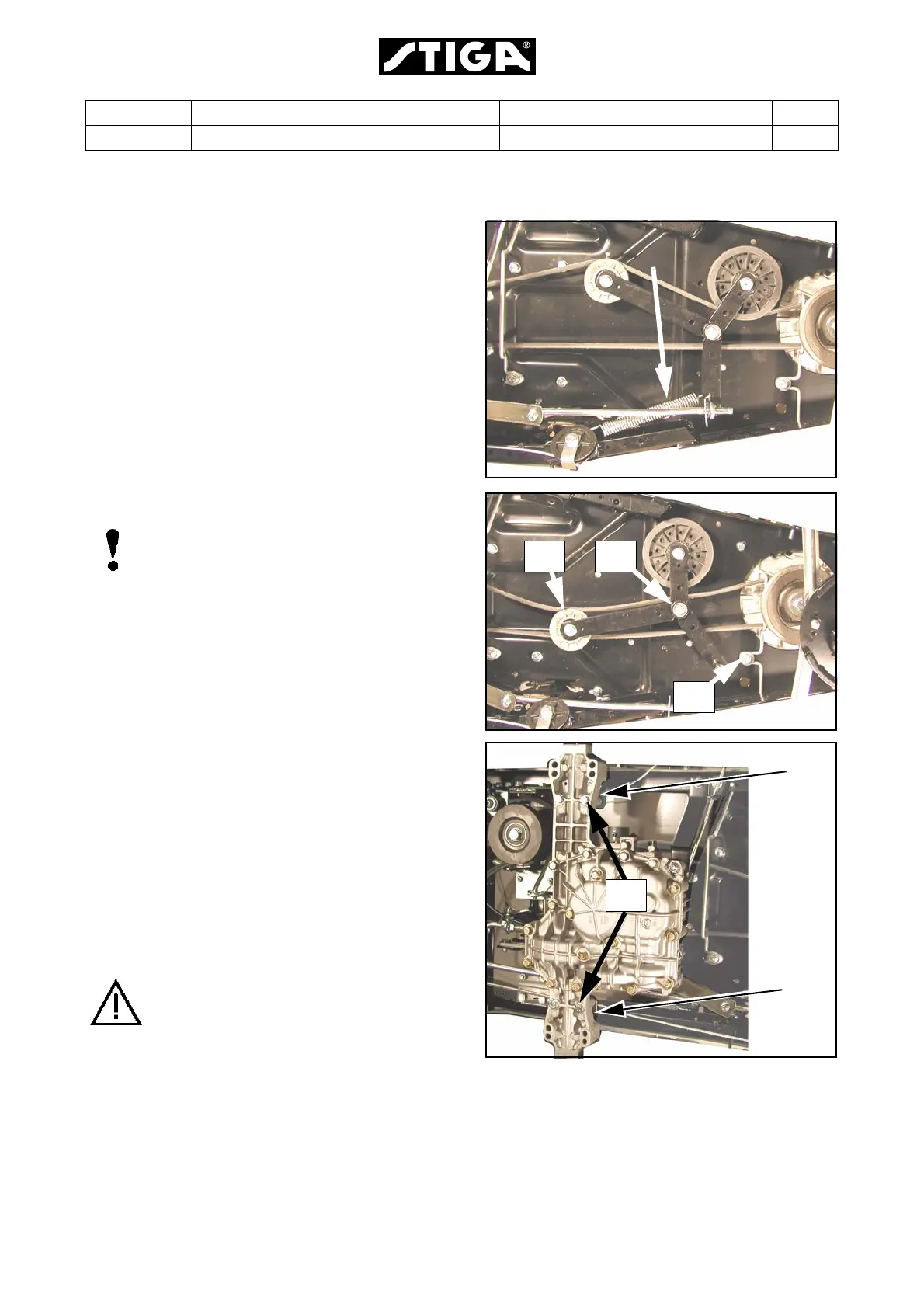

6. Unhook the clutch spring.
7. Remove the pulley (5). Use a 15 mm and a
17 mm wrench.
Note!
Pivot and belt guide nuts; Hold the nuts
at the upper side if nessecary.
8. Loosen the pivot screw (H) a couple of turns.
9. Loosen the belt guide screw (I) a couple of
turns.
10.Remove the four front axle screws (J) and
heighten the body (or lower the
transmission) about 3 cm. Preferably put a 3
cm distance (K) between the axle and the
body at both sides.
Be carefully not to damage the trans-
mission fan. A damaged fan will in-
crease the heating and cause gearbox
damages.
11.Work off the belt D.
5H
I
J
K
K
J
