Edition Manual Chapter Page
2008-05-19 Workshop Manual, Stiga Villa/Ready 5 Belts 8

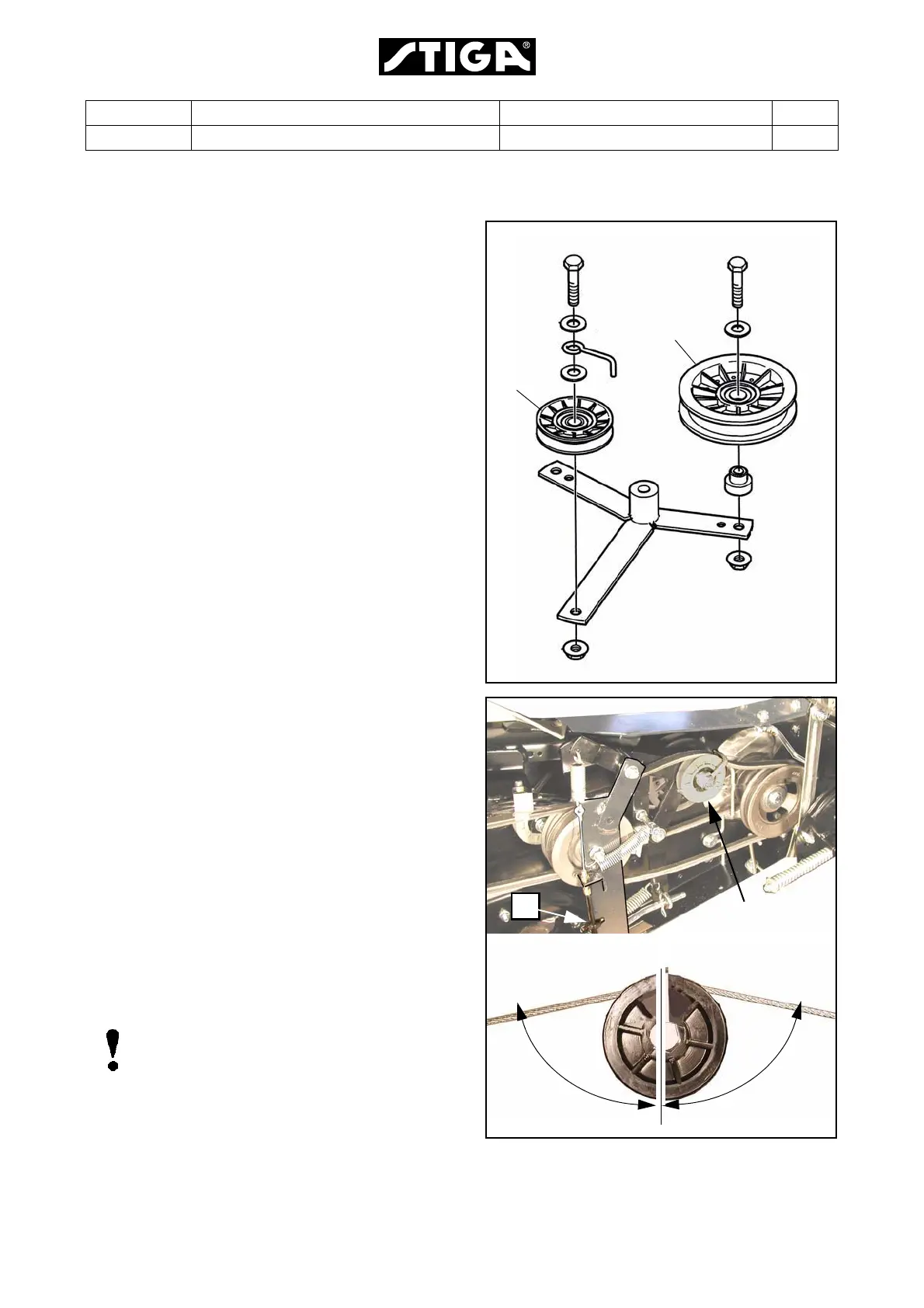

4. The pulleys (5 and 7) shall be mounted with
washer etc. as illustrated. The small pulley
shall face with its prolonged part
downwards.
5. The belt guide at pulley (7) shall be centered
over the belt when the clutch is engaged.
Note!
The prolonged part of the pulley hub
shall face against the lever.
5
7
7
E
