Edition Manual Chapter Page
2008-05-19 Workshop Manual, Stiga Villa/Ready 1 General 8

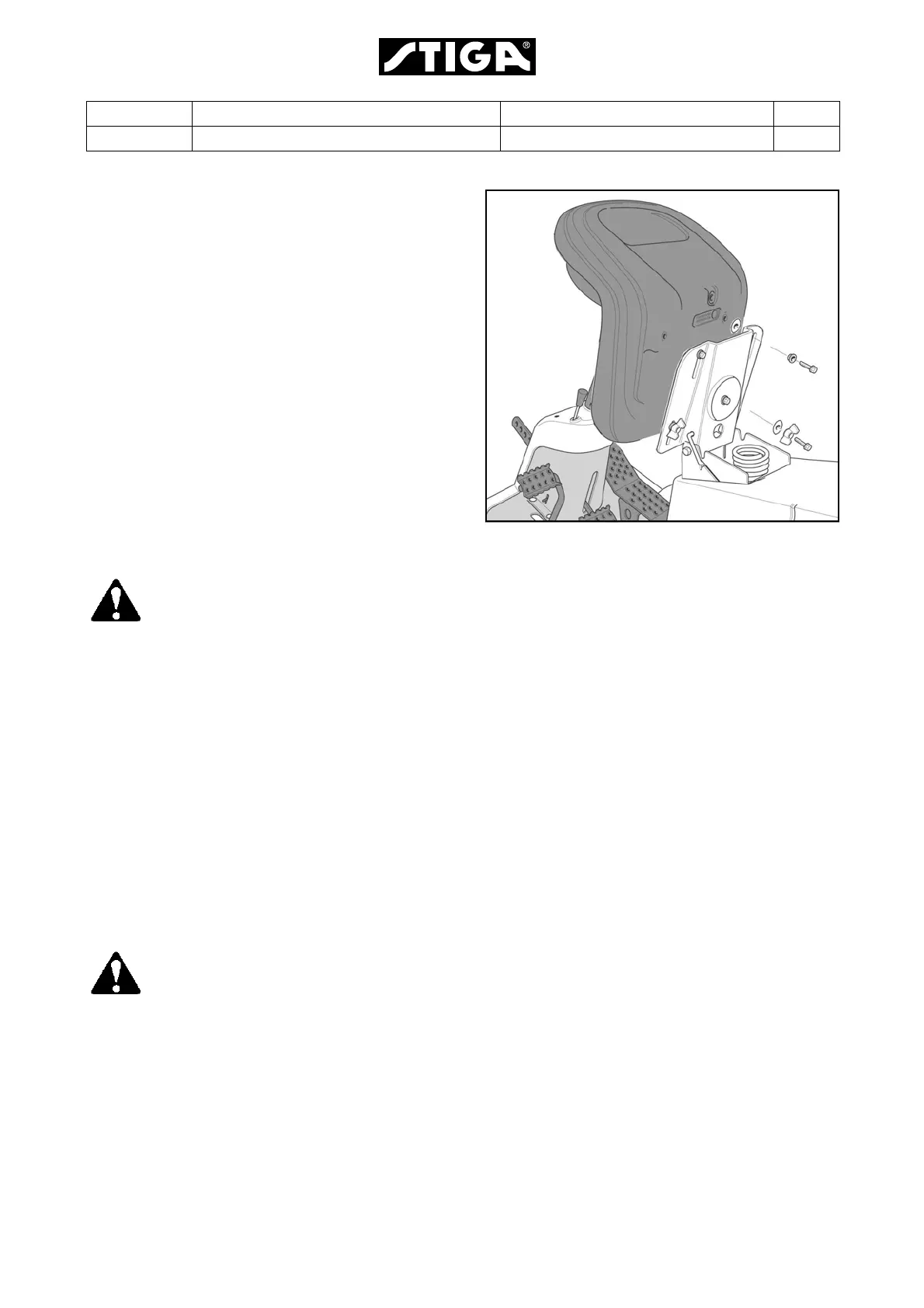

Assembly of seat (adjusting wings under)
Release the catch (S) and fold up the seat
bracket.
NOTE! To facilitate installation of the seat,
apply a drop of oil to the four screws before
screwing them into the seat.
Install the mounting in the rear (upper) holes as
follows:
1. Install the shoulder washers (F) on the screws
(K).
2. Insert the screws through the slots in the
bracket. Place a washer (I) between the seat
and the bracket.
3. Tighten the screws in the seat. Tightening
torque: 9±1.7 Nm.
If the screws are tightened more than
9±1.7 Nm, the seat will be damaged.
4. Check that the seat moves easily in the slots
in the bracket.
Install the mounting in the front (lower) holes as
follows:
1. Install the screw knobs (H) on the screws (G).
2. Install a washer (I) on each screw.
3. Insert the screws through the slots in the
bracket and tighten by hand in the seat.
4. Fold the seat down and place it in the desired
position.
5. Tighten the screw knobs (H) by hand.
The screw knobs (H) and the seat will
be damaged if tools are used.
Towing plate
Fitting according to customer requirements.
Engine oil
Check the oil level in the engine and top up if
necessary.
F
K
I
H
G
S
I
