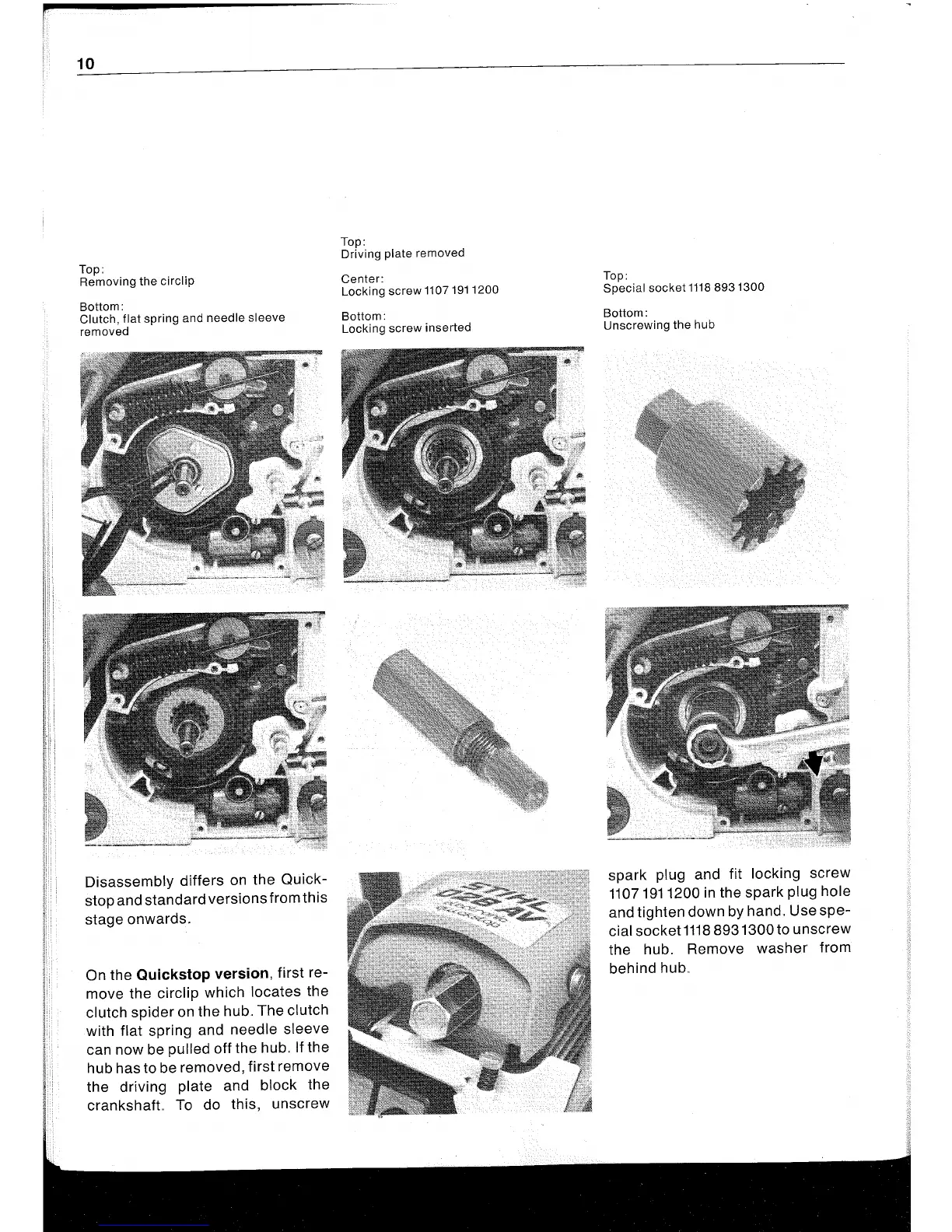

10
Top:
Removing
the
circlip
Bottom:
Clutch,
flat
spring
and
needle
sleeve
removed
Disassembly differs on the
Quick-
stop and standard versions from this
stage onwards.
On the Quickstop version, first re-
move
the
circlip which locates the
clutch spider on the hub
..
The
clutch
with flat spring and needle sleeve
can now be pulled
off
the hub
..
If the
hub has to be removed, first remove
the driving
plate and block the
crankshaft..
To
do this, unscrew
Top:
Driving
plate
removed
Center:
Locking
screw
11071911200
Bottom:
Locking
screw
inserted
Top:
Special
socket
11188931300
Bottom:
Unscrewing
the
hub
spark
plug and fit locking
screw
11071911200 in the spark plug hole
and tighten down by hand
..
Use
spe-
cial socket 11188931300 to
unscrew
the hub. Remove
washer
from
behind hub
..
