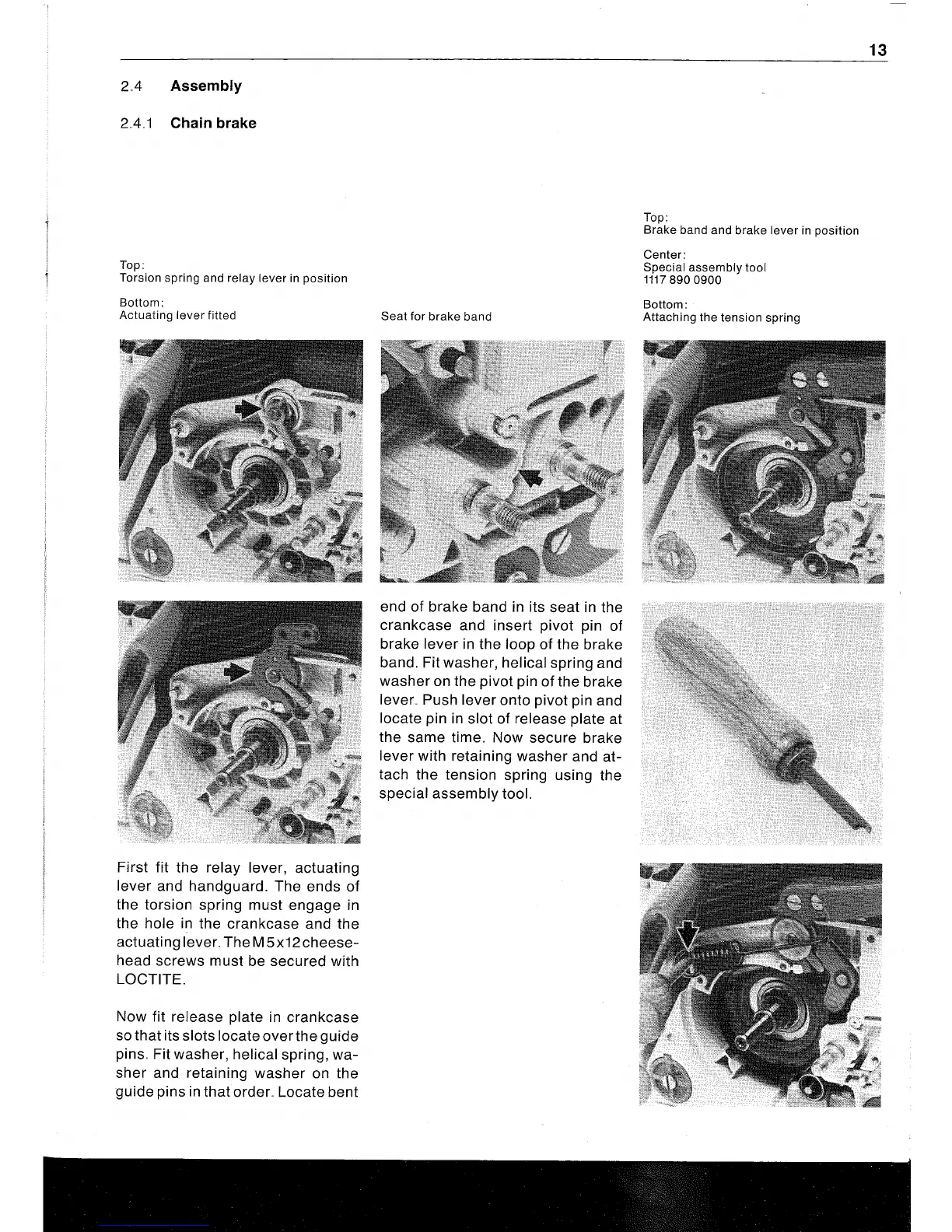

2..4 Assembly
24..1 Chain brake
Top:
Torsion
spring and relay lever in position
Bottom:
Actuating lever fitted
First fit the relay lever, actuating
lever and handguard. The ends of
the torsion spring must engage in
the
hole in the crankcase and the
actuating
lever .. The M 5 x12 cheese-
head screws must be secured with
LOCTITE.
Now fit release plate in crankcase
so
that its slots locate overthe guide
pins
.. Fit washer, helical spring, wa-
sher and retaining washer on the
guide pins in
that order .. Locate bent
Seat for brake band
end of brake band in its seat in the
crankcase and insert pivot pin of
brake
lever in the loop of the brake
band
.. Fit washer, helical spring and
washer on the pivot pin
of the brake
lever .. Push lever onto pivot pin and
locate pin in slot of release plate at
the same time. Now secure brake
lever with retaining washer and at-
tach the tension spring using the
special assembly tool.
Top:
Brake band and brake lever in position
Center:
Special assembly tool
11178900900
Bottom:
Attaching the tension spring
13
