BG 56, BG 56 C, BG 66, BG 66 C, BG 86, BG 86 C, SH 56, SH 56 C, SH 86, SH 86 C
English
12

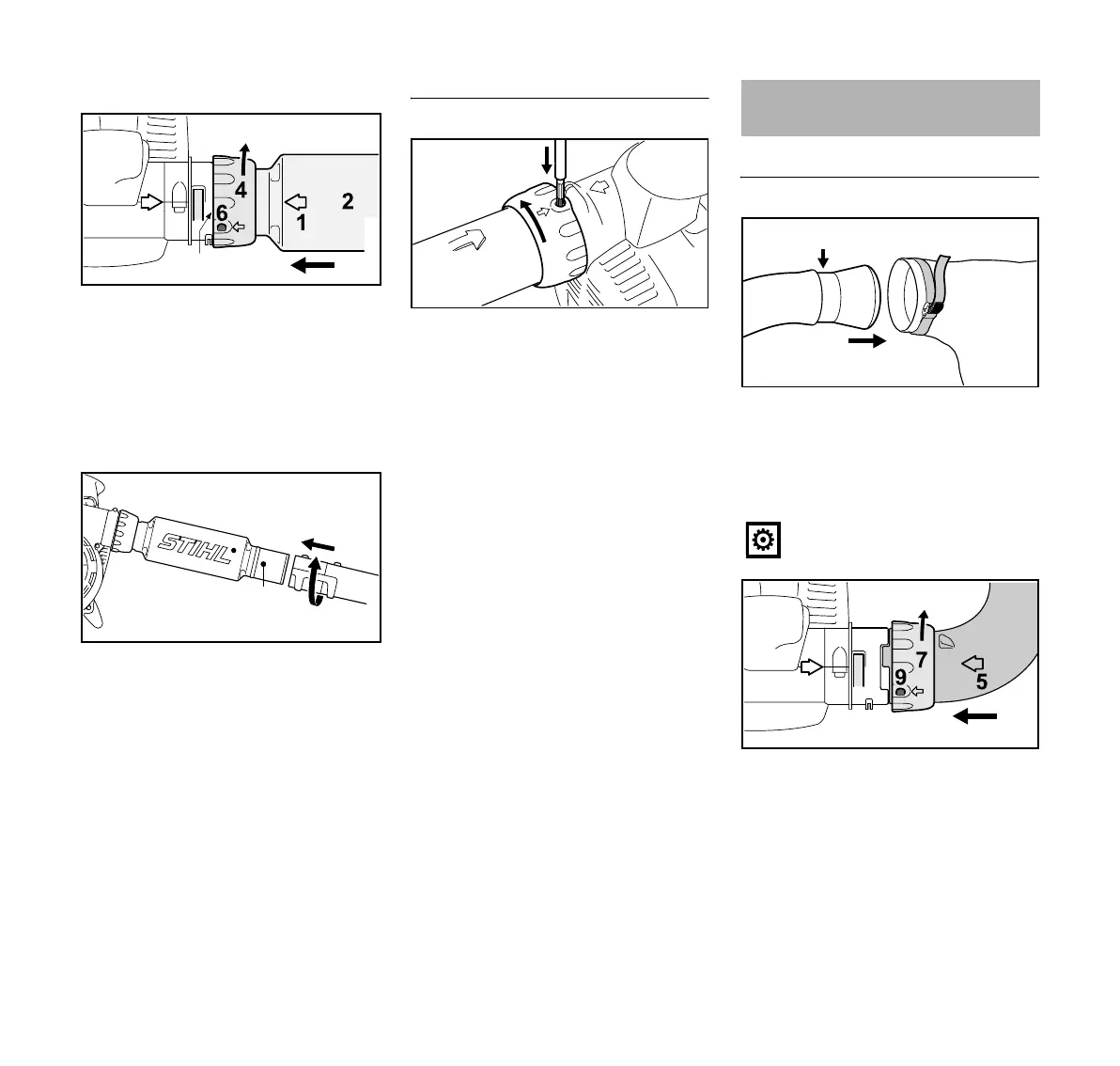

BG 66
N Line up the arrows (1).
N Push the blower tube (2) into the fan
housing stub (3).
N Push the union nut (4) over the fan
housing stub (3) and turn it in the
direction of the arrow until the
tab (5) engages the opening (6).
N Push the nozzle (7) in position (a)
onto the blower tube (2) as far as
lug (8) and rotate it in the direction
of the arrow to lock in position.
Removing the Blower Tube
N Shut off the engine.
N Insert a suitable tool through the
opening in the union nut to press
down the tab.
N Rotate the union nut in the direction
of the arrow as far as the stop.
N Remove the blower tube.
Mounting the Elbow
N Push the elbow (1) into the catcher
bag (2) as far as the mark (smaller
arrow).
N Tighten strap (3) on catcher bag
and press down the tab (4).
N Line up the arrows (5).
N Push the elbow into the fan housing
stub (6) as far as stop.
N Push the union nut (7) over the fan
housing stub and turn it in the
direction of the arrow until the
tab (8) engages the opening (9) in
the union nut.
3
5
1
296BA005 KN
296BA004 KN
a
7
8
2
295BA057 KN
Assembling the Vacuum
Shredder
Make sure the zipper on the
catcher bag is closed.
4
295BA058 KN
3
2
1
6
8
5
295BA059 KN
