ADG 2
English
8

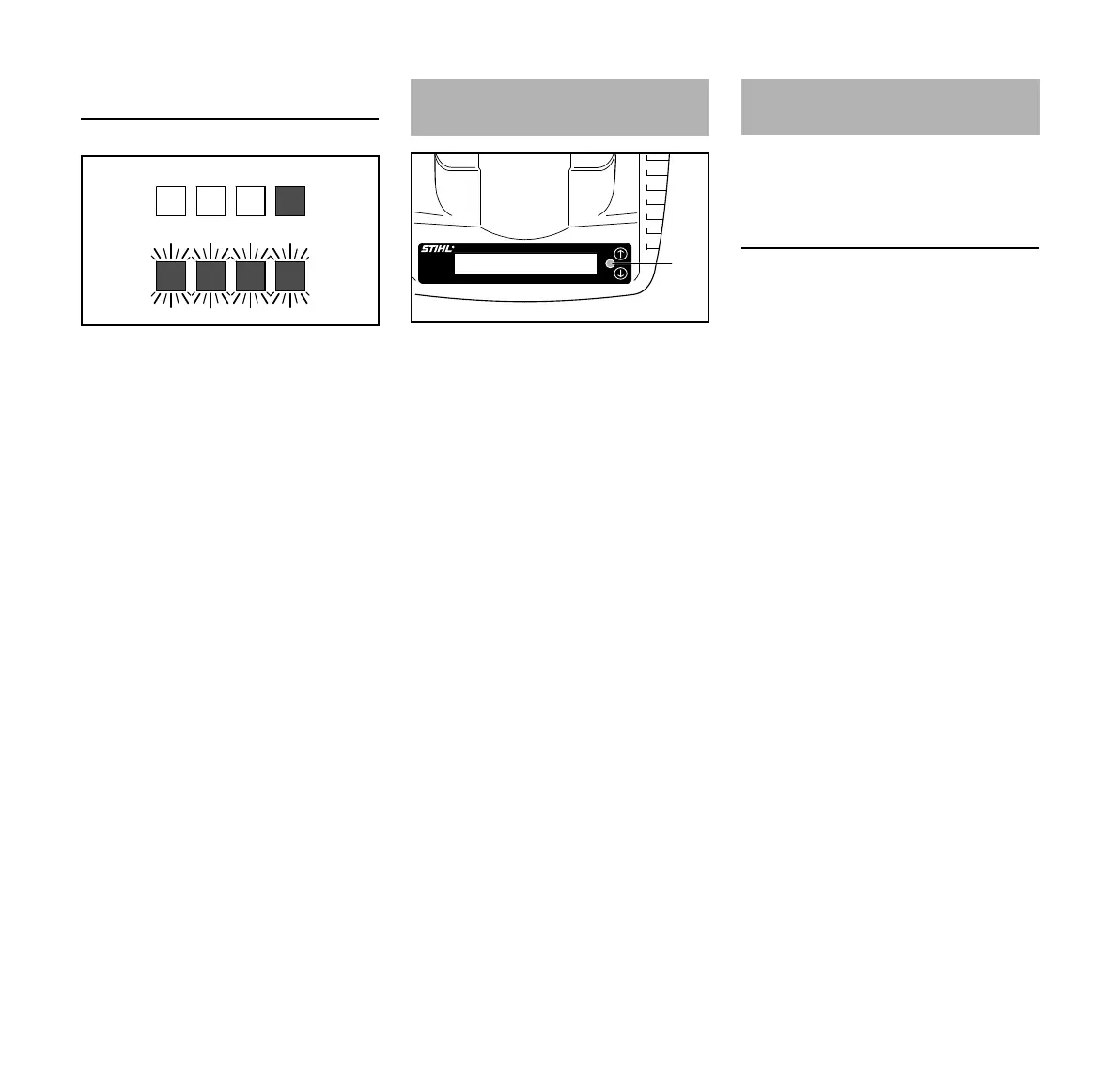

If the red light emitting diodes glow /
flash
The light emitting diode (1) on the
analyzer can glow or flash green, yellow
or red.
Green continuous light
– Cordless power tool or function in
order.
Yellow continuous light
– Intermittent fault in cordless power
tool in the past (e.g. loose contact),
power tool ready for operation at the
moment – the fault can be called up
in the power tool's fault memory.
Red continuous light
– Active fault in cordless power tool,
power tool is not ready for operation
at the moment – a fault code is
displayed.
– Problem – see "Troubleshooting"
Red flashing light
... may mean the following:
– Observe safety information on
display
– Fault in analyzer (analyzer's display
remains blank) – software update
required.
STIHL diagnostic software can be used
only with the MDG 1, ADG 1 and ADG 2
analyzers.
System Requirements
Install STIHL diagnostic software only
on a computer that meets the system
requirements. You must have
administrator rights to install the
software on a computer running
Microsoft
®
Windows
®
, contact your
system administrator if necessary.
Operating System
– Microsoft
®
Windows
®
XP SP 3 or
– Microsoft
®
Windows Vista
®
or
– Microsoft
®
Windows
®
7
Software Requirements
– Microsoft
®
.NET 3.5 or higher
– Adobe
®
Acrobat
®
Reader 9 or
higher
Hardware Requirements
Minimum requirements
– CPU 1 GHz
– 256 MB free memory
– minimum of 100 MB hard disk
space
– Resolution – SVGA monitor
(minimum resolution 1024 x 768)
– USB interface 1.1 or higher
– CD-ROM or DVD drive
1 light emitting diode
glows continuously
red:
Battery too
hot/cold
1)
1)
Remove the battery from the
analyzer to cool it down/warm it up.
After cooling down/warming up,
restart the test – insert the battery
in the analyzer.
2)
Take the battery out of the analyzer
and refit it again – if the LEDs still
flash, the analyzer is faulty and
must be replaced.
4 light emitting diodes
flash red:
Fault in battery
2)
4901BA008 KN
Light Emitting Diodes (LEDs)
on Analyzer
1
7BA006 KN
Diagnostic software
