ADG 2
English
7
N Press the lower button to confirm
that the fault memory should be
cleared.
N Insert the adapter in the cordless
power tool.
N Switch on the cordless power tool
see power tool's instruction manual.
Fault memory is cleared. To avoid
damage to the electronic module, the
adapter must not be removed from the
cordless power tool and the battery must
not be removed from the analyzer while
the memory is being cleared.
On completion, the analyzer's display
confirms that the memory has been
cleared.
The test is restarted by pressing the
lower button.
After the test
N Remove the battery from the
analyzer.
When the battery is removed, the data of
the cordless power tool that has been
tested is deleted from the analyzer. The
analyzer can then be used to test further
cordless power tools.

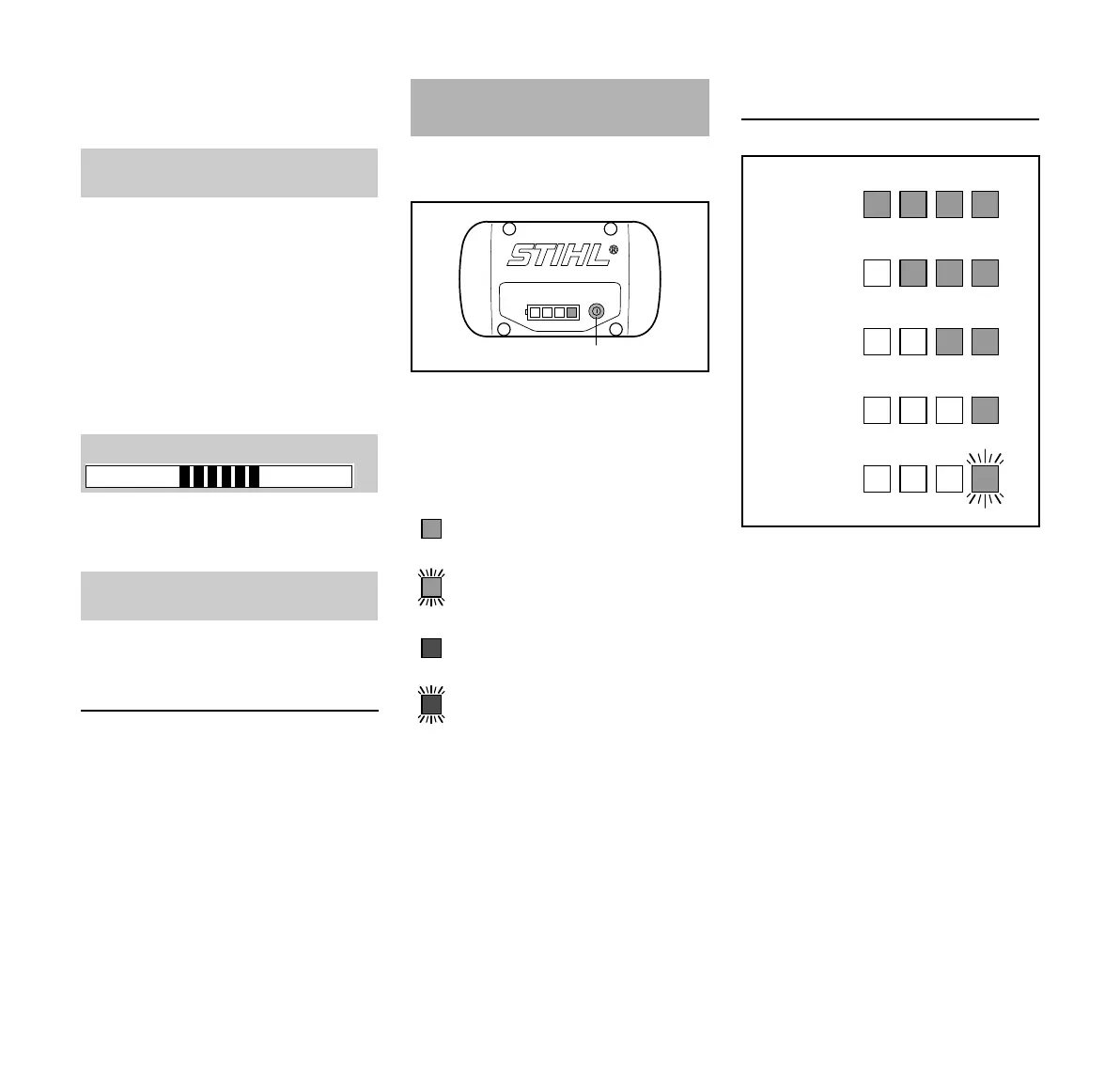

Four light emitting diodes indicate the
condition of the battery.
N Press button (1) to activate the
display – the display goes off
automatically after 5 seconds.
The light emitting diodes can glow or
flash green or red.
If the green light emitting diodes glow /
flash
The green light emitting diodes indicate
the battery's state of charge by glowing
and flashing continuously.
Insert adapter,
Switch on the saw.
Do not remove unit
Memory cleared
End of test
Light Emitting Diodes (LED)
on Battery
Light emitting diode glows con
-
tinuously green.
Light emitting diode flashes
green.
Light emitting diode glows con
-
tinuously red.
Light emitting diode flashes red.
1
3901BA010 KN
3901BA016 KN
80 - 100 %
60 - 80 %
40 - 60 %
20 - 40 %
0 - 20 %
