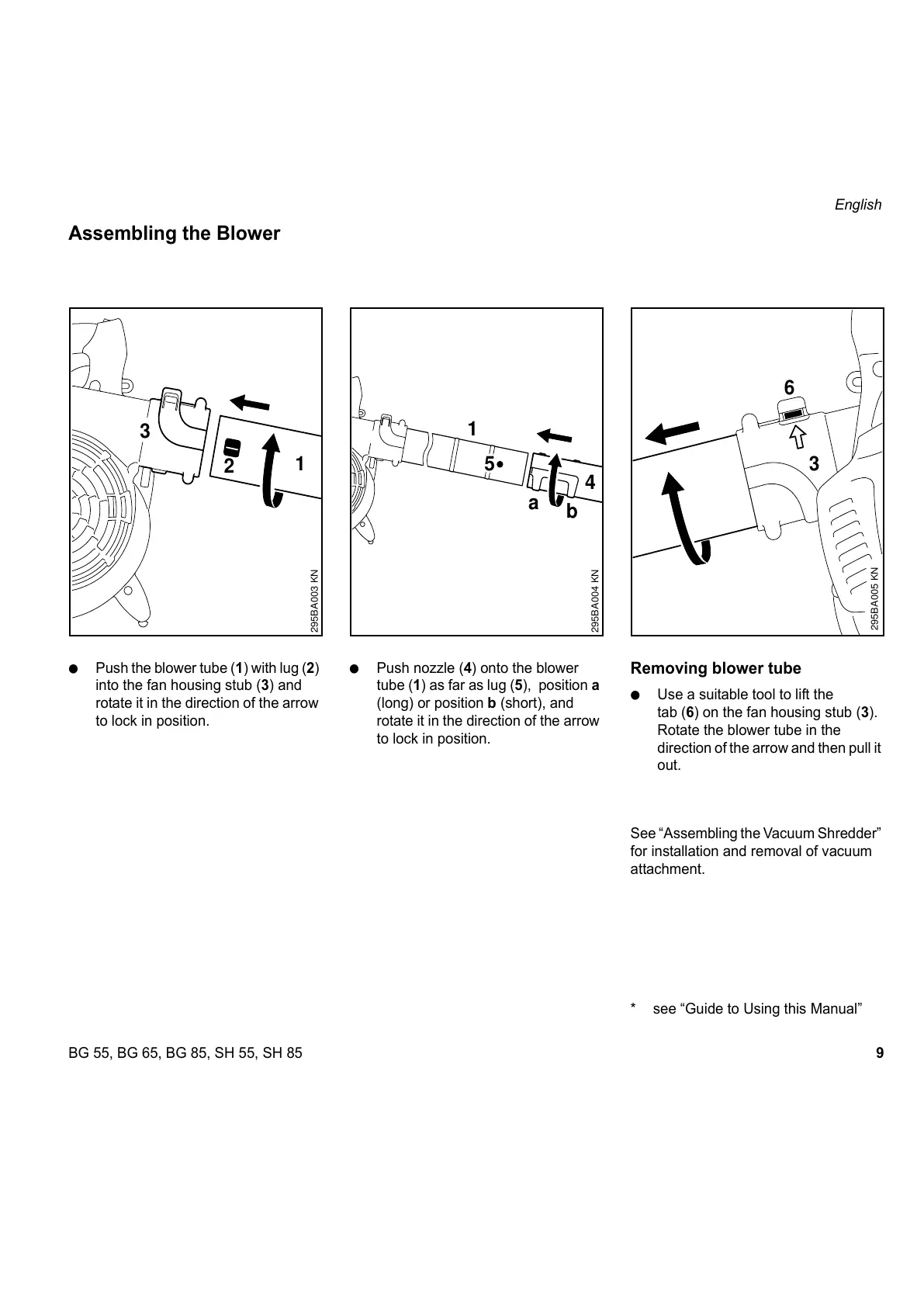

Stihl BG 85 - Assembling the Blower

9BG 55, BG 65, BG 85, SH 55, SH 85
English
: Push the blower tube (1) with lug (2)
into the fan housing stub (3) and
rotate it in the direction of the arrow
to lock in position.
: Push nozzle (4) onto the blower
tube (1) as far as lug (5), position a
(long) or position b (short), and
rotate it in the direction of the arrow
to lock in position.
Removing blower tube
: Use a suitable tool to lift the
tab (6) on the fan housing stub (3).
Rotate the blower tube in the
direction of the arrow and then pull it
out.
See “Assembling the Vacuum Shredder”
for installation and removal of vacuum
attachment.
* see “Guide to Using this Manual”
