13BR 500, BR 550, BR 600
English

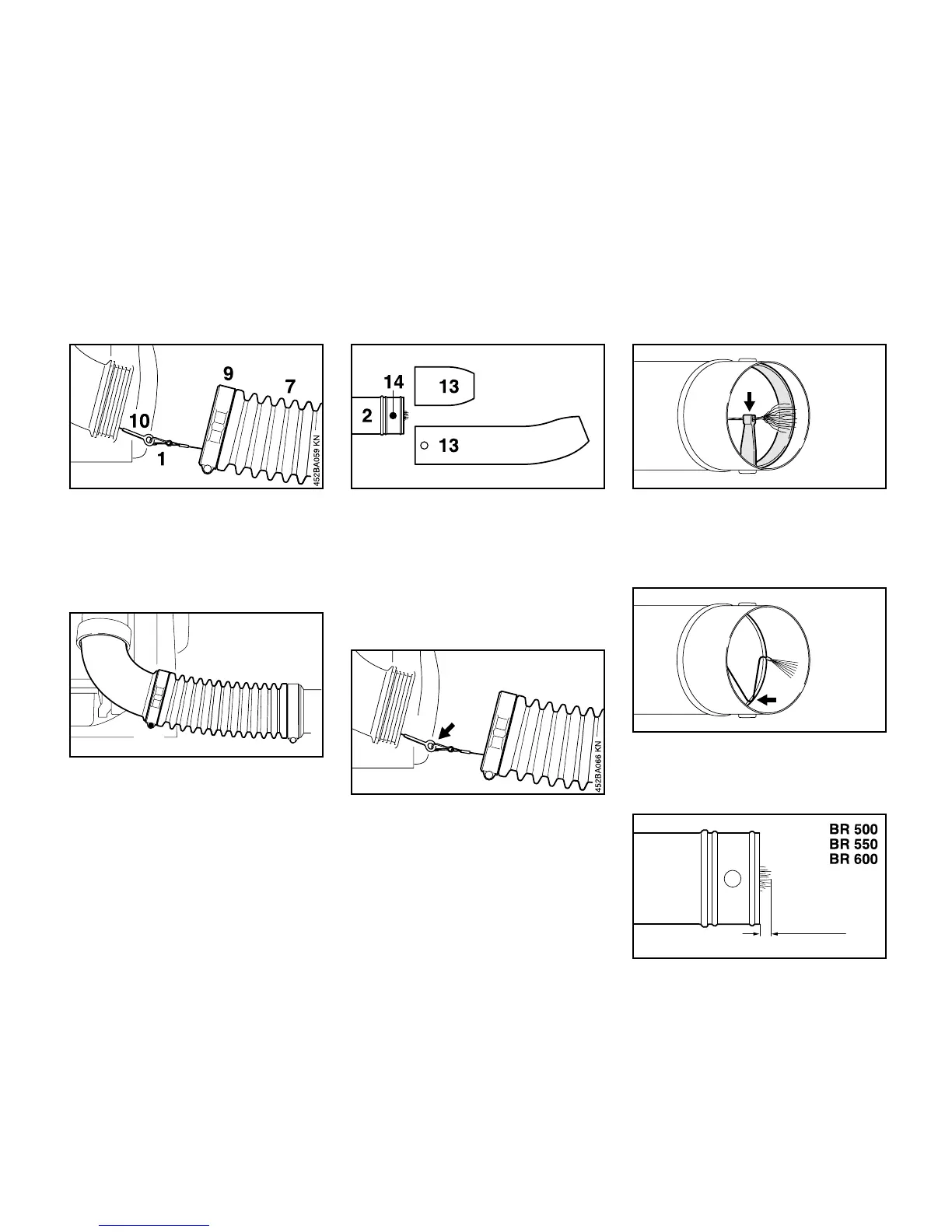

: Fit the hose clamp (9) on the
pleated hose (7).
: Attach hook (1) of the discharge
wire to the eye (10).
: Push the pleated hose (7) with hose
clamp (9) over the elbow (11) in the
position shown.
: Tighten down the screw (12) firmly.
: Push the nozzle (13) (curved or
straight, depending on market) onto
the blower tube (2) and engage it on
the lug (14).
Operate the machine only with a
properly fitted discharge wire
– The hook on the discharge wire
must be attached to the eye (arrow).
– The sleeve on the discharge wire
must be clipped to the retainer
(arrow).
– The discharge wire must engage
the groove (arrow).
– The discharge wire must project at
least 1 cm.
452BA060 KN
7
9
12
11
452BA018 SC
452BA072 KN
BR 500
BR 550
BR 600
452BA071 KN
452BA046 SC
min. 1 cm
min. 1/2"
