29BR 500, BR 550, BR 600
English

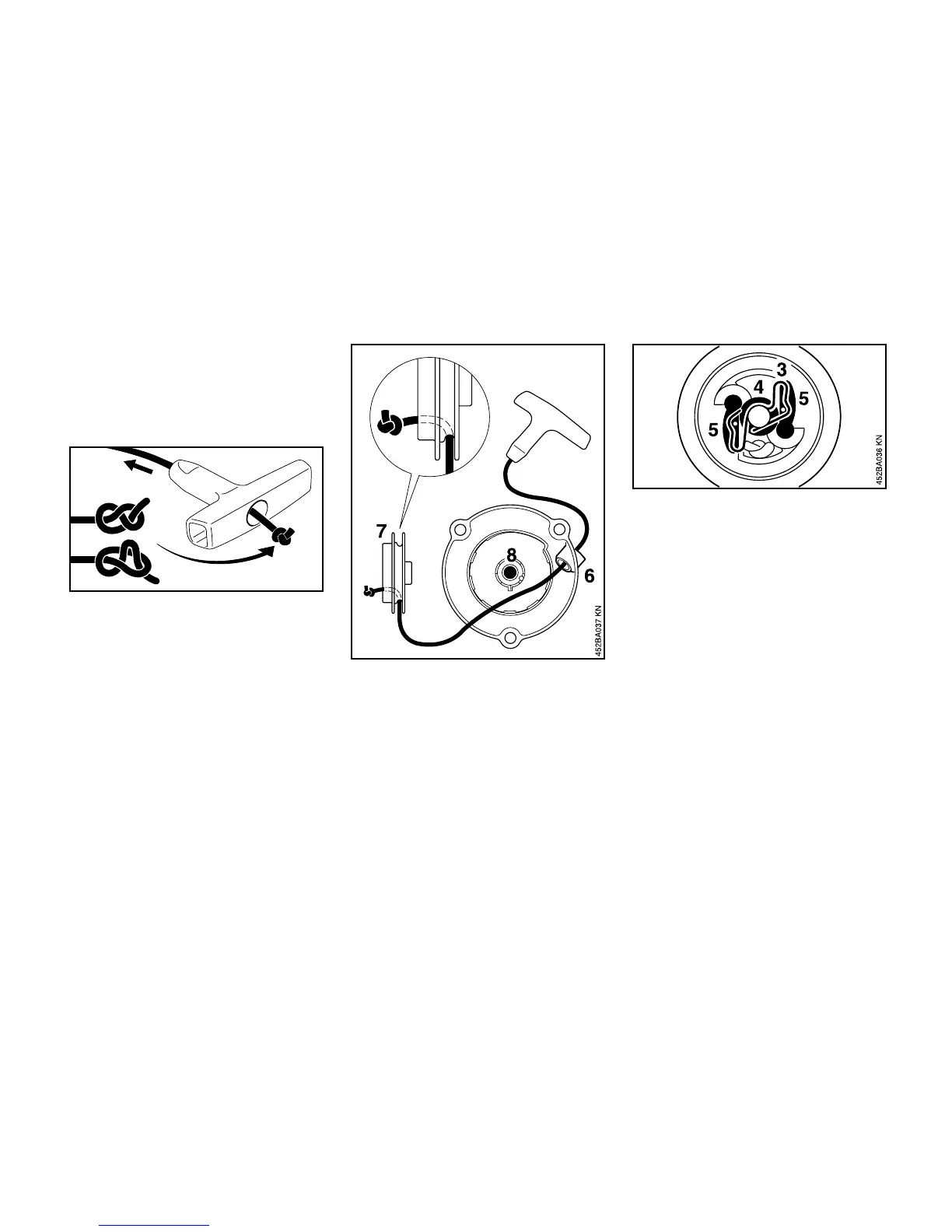

: Use a screwdriver to pry the rope
out of the starter grip.
: Remove remaining rope from the
rotor and grip.
: Thread the new rope through the
top of the starter grip and secure it
with one of the special knots shown.
: Pull the knot into the starter grip.
: Thread the end of the rope through
the top of the rope bushing (6) and
the rotor (7) and secure it with a
simple overhand knot.
: Lubricate the rope rotor bore with
non-resinous oil.
: Push the rope rotor onto the starter
post (8) and turn it back and forth to
engage the rewind spring’s anchor
loop.
: Fit the pawls (5) in the rotor.
: Fit the washer (4) on the starter
post.
: Use a screwdriver or suitable pliers
to install the spring clip (3) on the
starter post and engage it on the
pawls’ pegs – the spring clip must
point clockwise – see illustration.
213BA018 KN
