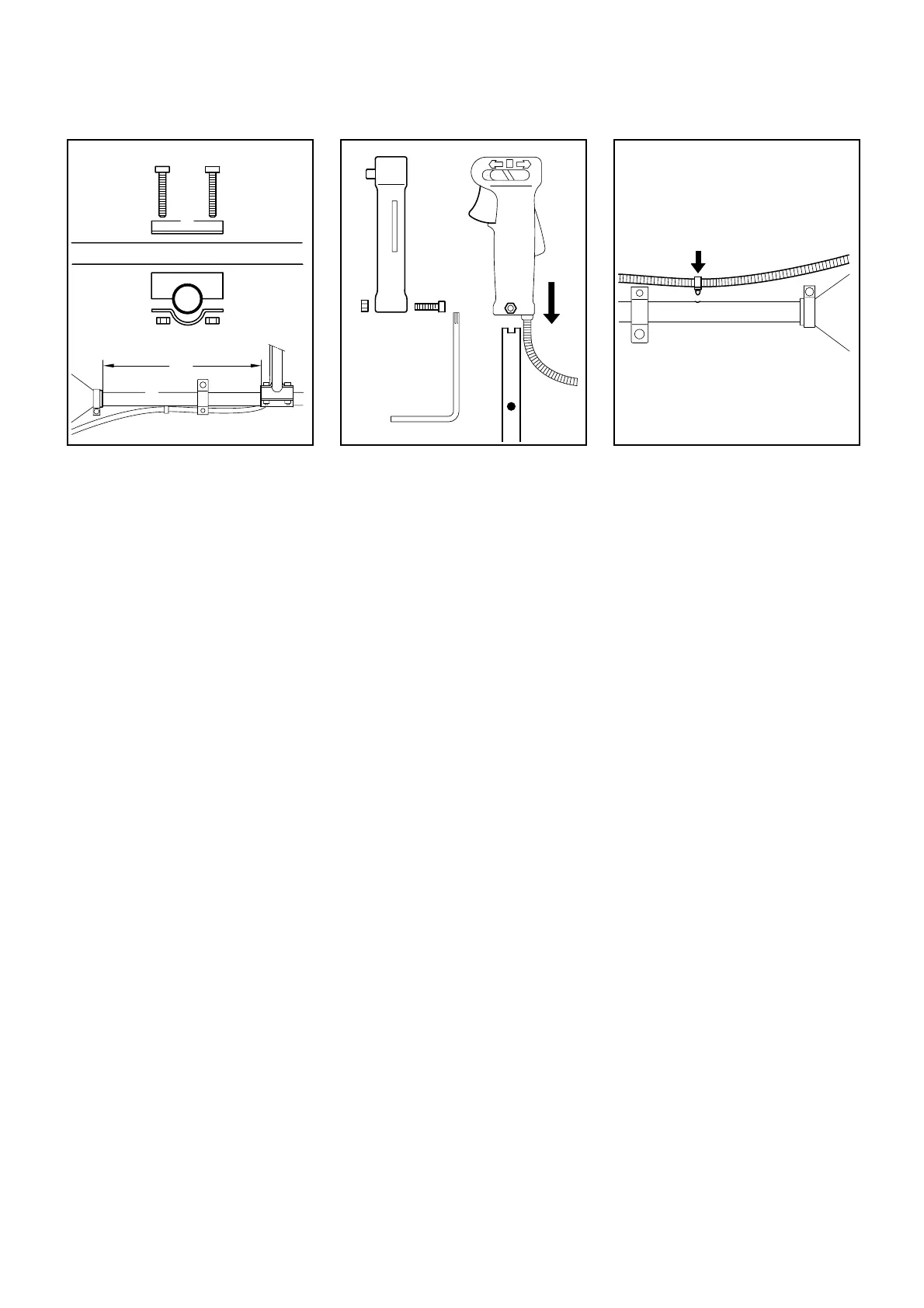

Mount the bike handle  on the
drive tube  - 30cm/12" $
forward of the engine.
•
Position the clamp  and
support  on the drive tube.
•
Place the bike handle  in the
support so that the molded handle
is on the left (looking at handle from
engine).
•
Fit clamp  on support.
•
Insert screws  in holes.
•
Fit nuts  on screws - fingertight.
•
Line up the bike handle as required.
•
Tighten the screws firmly.
0RXQWLQJWKHFRQWUROKDQGOH
•
Remove the screw 
from the nut .
•
Take both parts out of
the control handle .
•
Push the control handle
onto the bike handle  -
throttle trigger  must
point in direction of gear head.
•
Line up the holes .
•
Fit nut and screw in the
control handle.
•
Tighten the screw firmly.
6HFXULQJWKHWKURWWOHFDEOH
•
Lay your brushcutter on its back
with the gear gear facing up.
•
Push the throttle cable retainers
 into the holes on the underside
of the drive tube.
0RXQWLQJWKH%LNH+DQGOH
1
6
1
4
3
5
6
7 7
2
A
2
9
12
1
12
8
10
11
13

