Stihl Brushcutter - Mounting the Loop Handle Version A

O
n
l
i
n
e
v
e
r
s
i
o
n
-
n
o
t
f
o
r
r
e
p
r
i
n
t
•

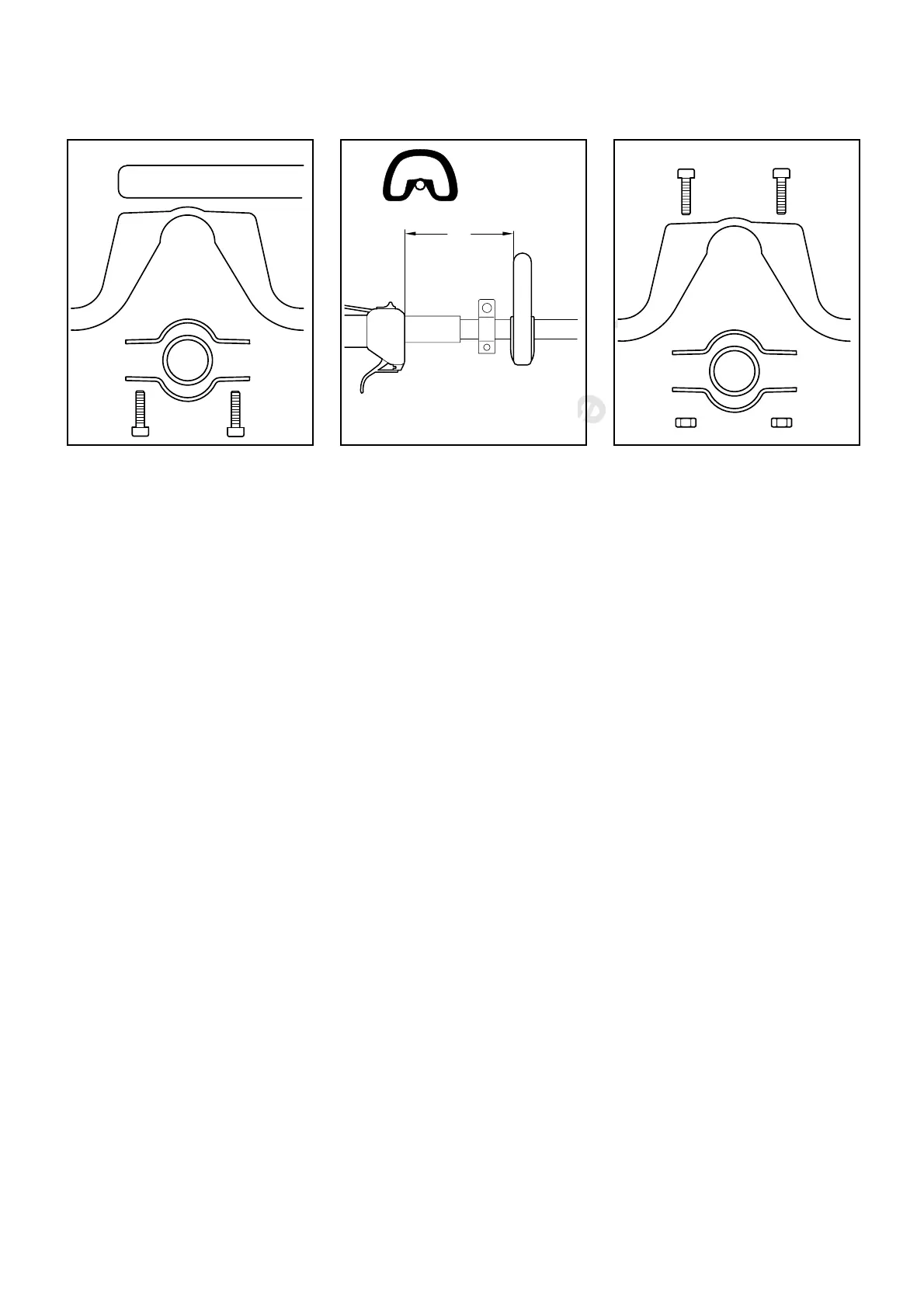

Place the clamp  in the loop
handle  and position them both
against the drive tube .
•
Fit the clamp  and place standoff
lever  in position -
line up the holes.
•
Insert screws  in holes and
screw them into standoff lever
fingertight.
•
Align the loop handle.
•
Tighten the screws firmly.
•
Mount the loop handle 
20 cm/8" $ forward of the
control handle .
•
Place the clamp  in the loop
handle  and position them both
against the drive tube .
•
Fit the clamp  -
line up the holes.
•
Insert screws  in holes and
screw on the nuts  fingertight.
•
Align the loop handle.
•
Lock the nuts and tighten
the screws firmly.
