$GMXVWLQJLGOHVSHHG
5HPRYHWKHDXJHUIURPWKHPDFKLQH
EHIRUHDGMXVWLQJWKHFDUEXUHWRU
Check air filter and fit a new one if
necessary.
Check spark arresting screen and
clean or replace as necessary.
Carefully screw the idle speed
screw /'down onto its seat coun-
terclockwise (left-hand thread).
Then open it two turns clockwise.
This is the standard setting.
Start and warm up the engine
Now adjust idle speed correctly with
the idle speed screw /': the dril-
ling spindle must not rotate.
(QJLQHVWRSVZKLOHLGOLQJ
Turn the idle speed screw /'
clockwise until the engine runs
smoothly - drilling spindle must not
rotate.
'ULOOLQJVSLQGOHURWDWHVZKHQ
HQJLQHLVLGOLQJ
Turn the idle speed screw /'
counterclockwise until drilling
spindle stops rotating - then turn the
screw about another one full turn
in the same direction from that
position.
,IWKHUHLVDQRWLFHDEOHORVVRI
HQJLQHSRZHU

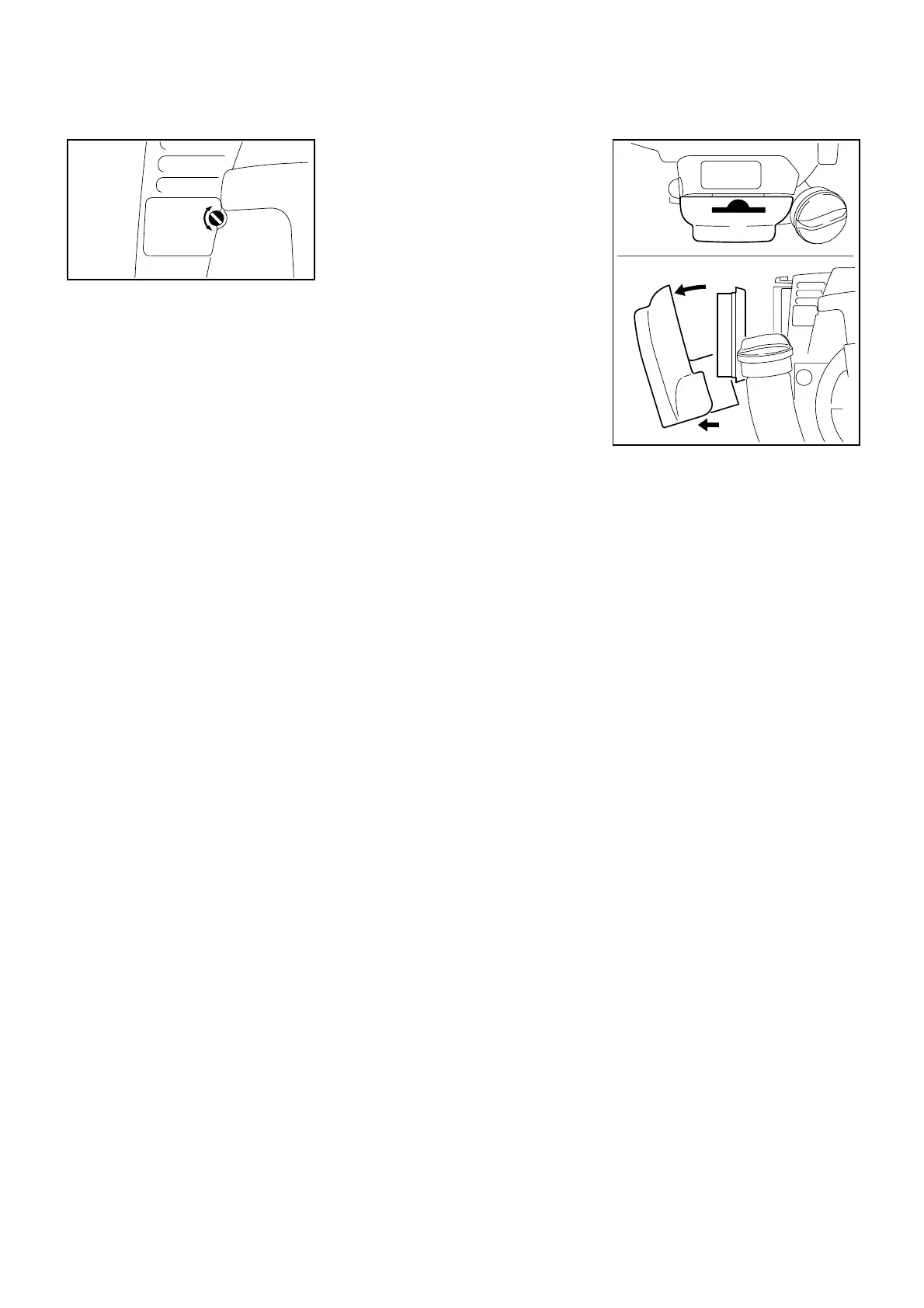

Move choke knob to J
Press in the tab .
Remove the filter cover .
Clean away loose dirt from inside
filter cover and around the filter.
Remove filter  and inspect -
replace if dirty or damaged.
Install filter in the filter cover.
Refit the filter cover.
250BA021 KN
+
LD
-
1
2
3
250BA022 KN
$LU)LOWHU
Dirty air filters reduce engine power,
increase fuel consumption and make
starting more difficult.
0RWRU0DQDJHPHQW
Exhaust emissions are controlled by the
design of the fundamental engine
parameters and components
(e.g. carburetion, ignition, timing and
valve or port timing) without the addition
of any major hardware.
$GMXVWLQJWKH&DUEXUHWRU
This carburetor does not have a high
speed adjusting screw (H screw) or a
low speed adjusting screw (L screw).
The carburetor is set at the factory to
guarantee an optimum fuel-air mixture
under all operating conditions.
%7& 
