15BT 121
English / USA
: Shut off the engine. Put the earth
auger on the ground so that the
drilling spindle faces up.
: Engage the auger brake.

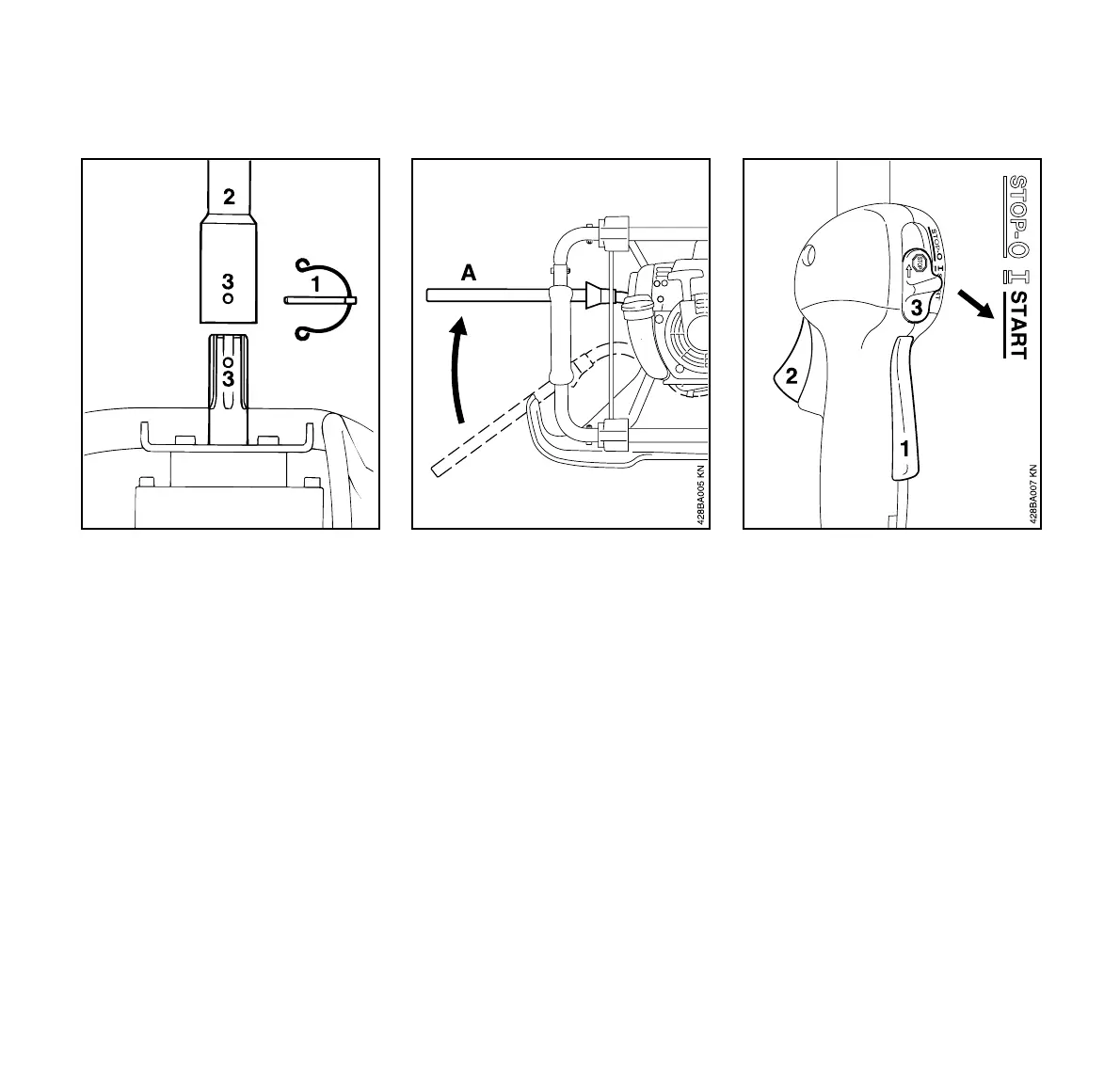

: Pull retaining pin (1) out of the
auger's shank.
: Push the auger (2) onto the drilling
spindle so that the holes (3) line up.
: Push retaining pin into the hole.
: Spring clip on retaining pin must fit
snugly around auger's shank.
: Observe safety precautions – see
chapter on "Safety Precautions".
Engaging Auger Brake
: Move the activating lever to
position A.
Starting
: Press down the throttle trigger
interlock (1), squeeze the throttle
trigger (2) and hold them in that
position.
: Move the slide control (3) to START
and hold it there.
: Now release the throttle trigger,
slide control and throttle trigger
interlock in that order. This is the
starting throttle position.
Fitting the Auger
24BA006
Starting / Stopping the
Engine
