Stihl FS 110 Manual

58 Series 4180 Powerhead

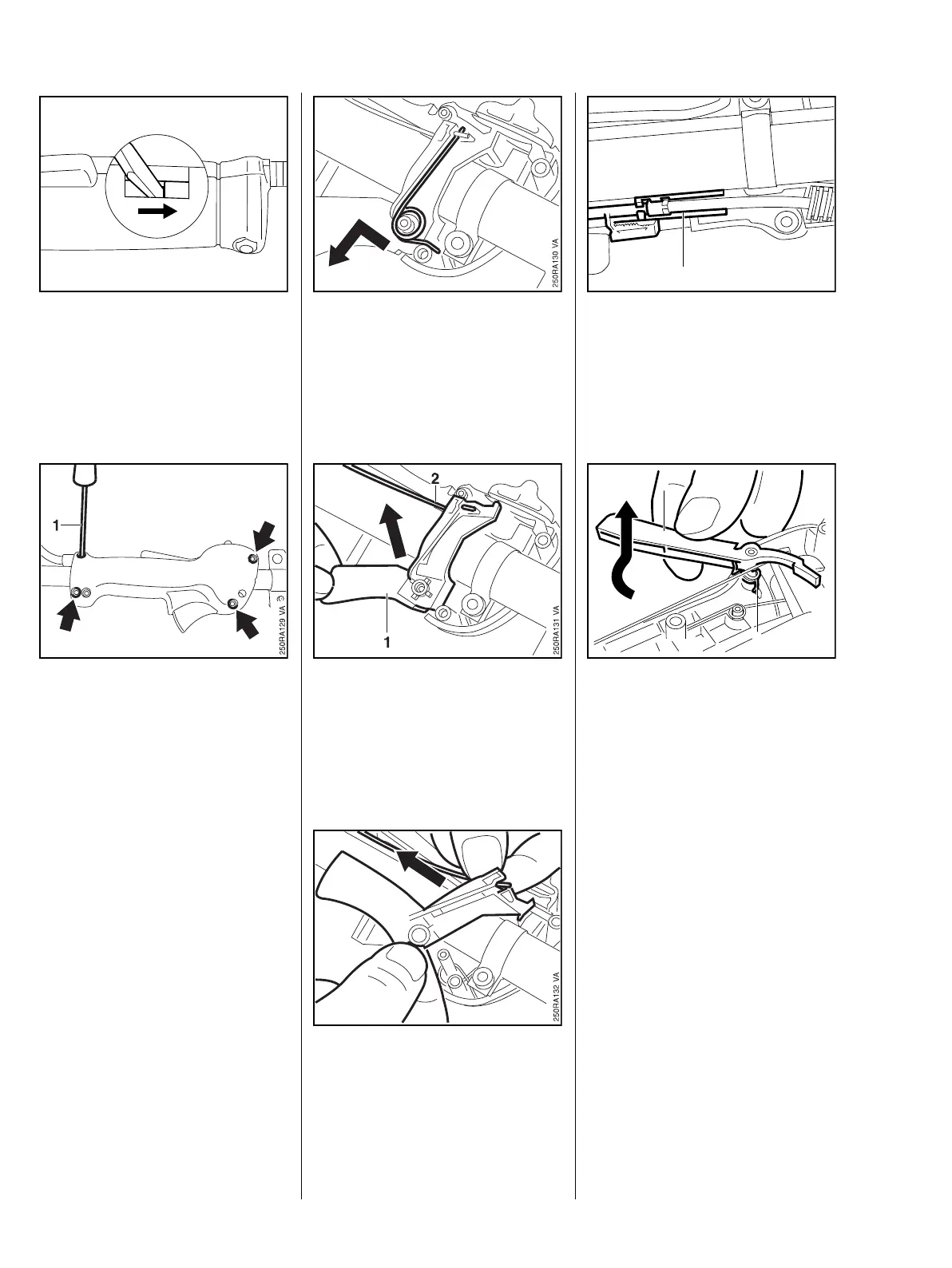

: Use a screwdriver to push the
slide (if fitted) to the bottom end
of the slot (arrow).
249RA199 BL
To avoid the risk of electrocution, do
not start the unit while the control
handle is open.
: Take out the screws (arrows).
– Remove handle molding.
: Remove the torsion spring.
: Remove the trigger (1) with
attached throttle cable (2) from
the pivot.
: Disconnect throttle cable from
the trigger.
: Take the tensioner (1) out of the
guide and remove the throttle
cable.
VA
249RA104
1
: Lift the lockout lever (1) a little
and turn it to the side until the
torsion spring (2) is relieved of
tension.
– Pull the lockout lever off the pivot.
392RA085
VA
1
2
9. Throttle Control
9.1 Throttle Trigger, Lockout
Lever

Stihl FS 110 Specifications

General

Engine Displacement	31.4 cc
Fuel Type	Gasoline
Handle Type	Bike handle
Shaft Type	Straight
Engine Type	2-stroke
Starter	Recoil
Weight	5.8 kg
Engine Power	1.05 kW (1.4 bhp)
Overall Length	180 cm (70.9 in)
