FS 110, FS 110 R
English
21
N Remove the tommy screw –
washer (6) remains on the tommy
screw
N Separate clamps – springs (4, 5)
remain in the lower clamp!

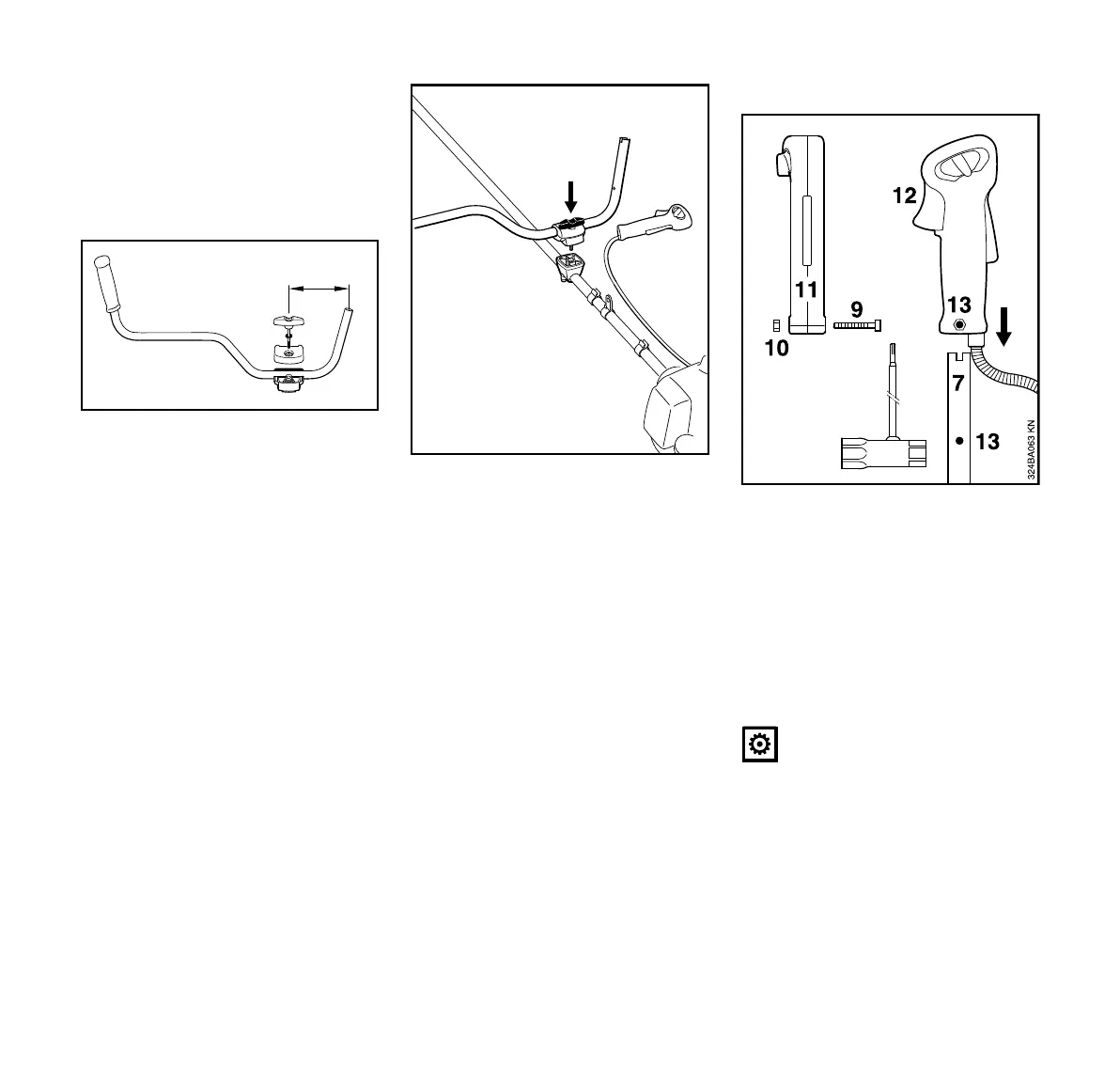

Fastening the handlebar
N Position the handlebar (7) in the
lower clamp (1) so that distance (A)
is not more than 6 in. (15 cm)
N Place the upper clamp on top and
hold both clamps together
N Insert the tommy screw with the
washer on it through both clamps as
far as it will go – hold all parts
together and secure them
N Position the entire secured
assembly on the handlebar
support (8) with the tommy screw
facing the motor
N Press the tommy screw into the
handlebar support as far as it will go
and then screw it in – do not tighten
it down yet
N Align the handlebar so that it is
perpendicular to the shaft – check
distance (A)
N Tighten tommy screw
Attaching the control handle
N Unscrew the bolt (9) – the nut (10)
remains in the control handle (11)
N Push the control handle with the
throttle trigger (12) facing toward
the gearbox onto the end of the
handlebar (7) until the holes (13)
align
N Screw in and tighten the bolt (9)
Fastening the throttle cable
Do not kink the throttle cable or run it in
tight radiuses – the throttle trigger must
move freely!
