Stihl FS 120 R User Manual

FS 120, FS 120 R, FS 250
English
15

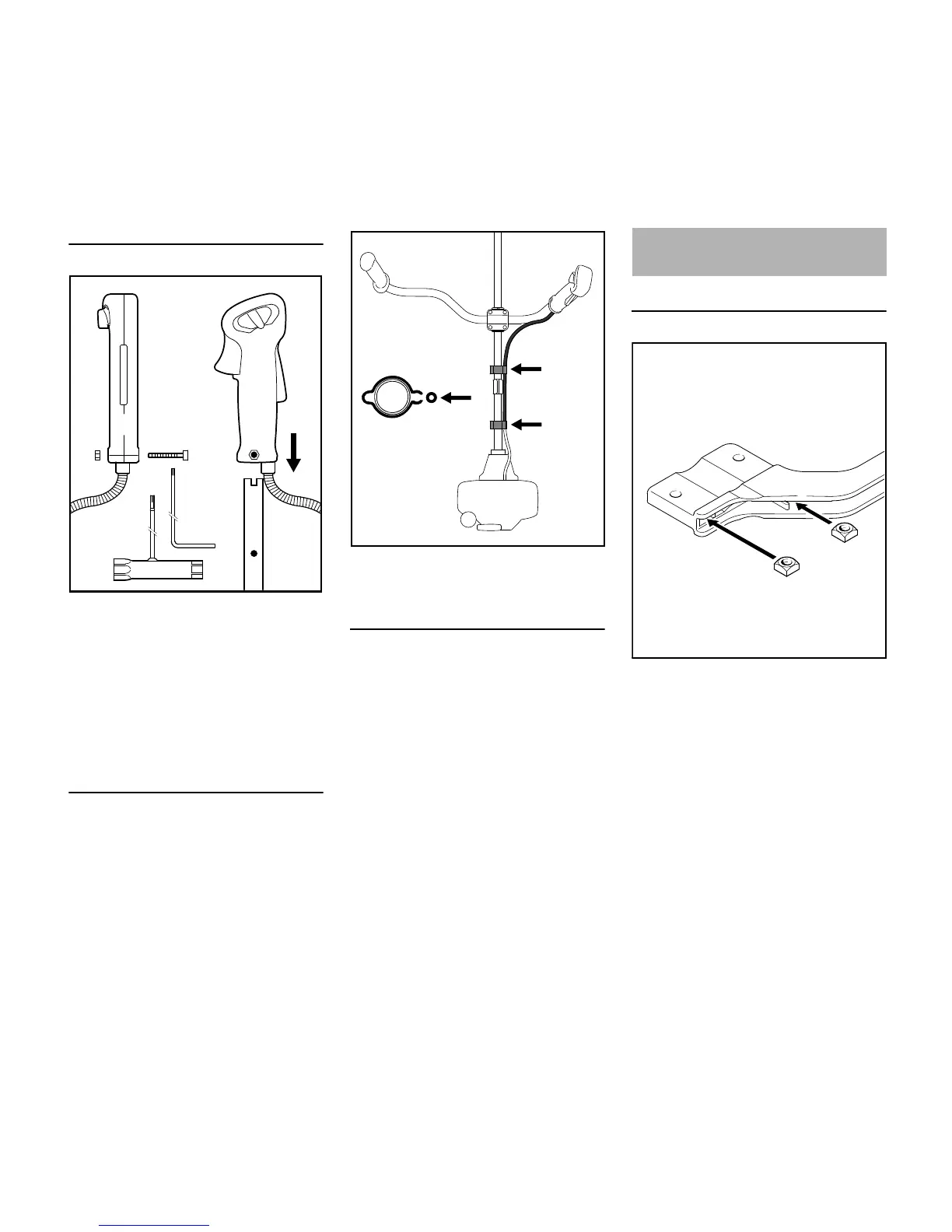

Mounting the Control Handle
N Take out the screw (1) – the nut (2)
remains in the control handle (3).
N Push the control handle onto the
handlebar (5) until the holes (6) line
up – the throttle trigger (4) must
point towards the gearbox.
N Insert the screw (1) and tighten it
down firmly.
Fitting the Throttle Cable
NOTICE
Do not kink the throttle cable or lay it in
tight radii – make sure the throttle trigger
moves freely.
N Push the throttle cable (1) into the
retainers (2).
Adjusting the Throttle Cable
N Check adjustment of throttle cable –
see chapter on "Adjusting the
Throttle Cable".
Mounting Loop Handle with Barrier Bar
N Fit the square nuts (1) in the barrier
bar (2); the holes must line up.
6
1
3
4
5
6
250BA077 KN
2
2
2
0000-GXX-1240-A0
1
1
2
Mounting the Loop Handle
2
002BA098 KN
1
1
