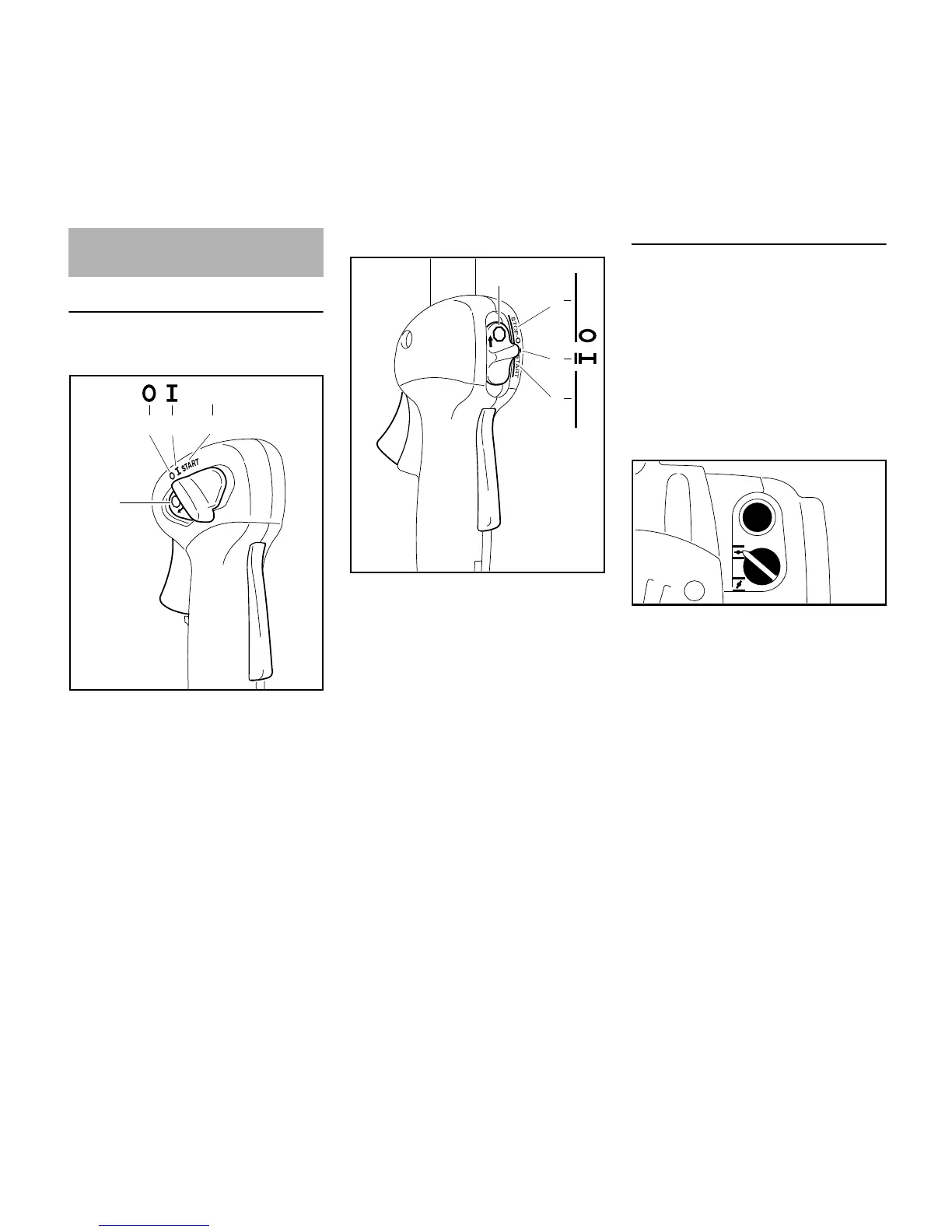

Controls
Control handle on handlebar
1 Throttle trigger lockout
2 Throttle trigger
3 Slide control
Control handle on drive tube
1 Throttle trigger lockout
2 Throttle trigger
3 Slide control
Positions of slide control
4STOP-0 – engine off – ignition is
switched off
5 F – normal run position – the engine
is running or can start
6START – ignition is switched on –
the engine can start
Symbol on slide control
7 h – stop symbol and arrow. To stop
the engine, push the slide control in
the direction of the arrow on the stop
symbol (h) to STOP-0.
Starting
N Press down the trigger lockout lever
and squeeze the throttle trigger
N and hold them in that position.
N Move the slide control to START
and hold it there.
N Now release the throttle trigger,
slide control and trigger lockout
lever in that order. This is the
starting throttle position.
N Set the choke knob (8) to:
N Press the manual fuel pump
bulb (9) at least five times – even if
the bulb is filled with fuel.
Starting / Stopping the
Engine
START
3
STOP
5 6
4
7
002BA668 KN
1
2
3
STOP
2
5
6
4
7
002BA181 KN
START
STOP-
1
g if the engine is cold
e for warm start – also use this posi-
tion if the engine has been running
but is still cold.
250BA018 KN
9
8
