: Place the secured assembly on the

handle support (8) with the wing

screw at the engine side.

: Push the wing screw into the handle

support as far as stop and then

screw it down – but do not finally

tighten yet.

: Line up the handlebar at a right

angle to the drive tube – check

dimension A again.

: Tighten down the wing screw firmly

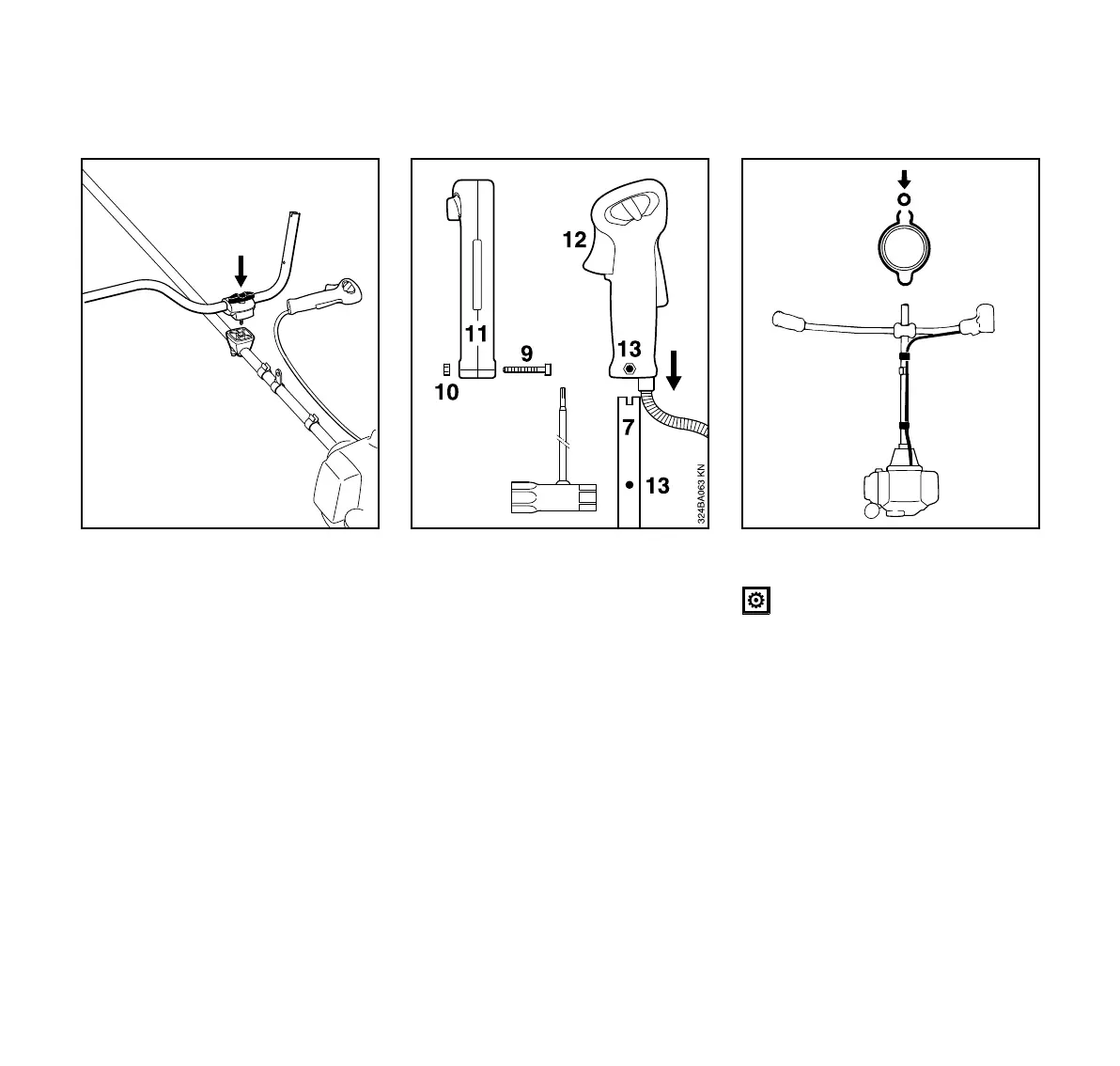

Mounting the Control Handle

: Loosen the screw (9). The nut (10)

remains in the control handle (11).

: Push the control handle – throttle

trigger (12) must point toward the

gearbox – onto the handlebar (7) so

that the holes (13) line up.

: Insert screw and tighten down

firmly.

Fitting the Throttle Cable

Do not kink the throttle cable or lay

it in tight radii – make sure the

throttle trigger moves freely.

: Press the throttle cable (14) into the

retainers (15).

Throttle Cable Adjustment

: Go to chapter "Adjusting the

Throttle Cable".
