FS 120, FS 120 R, FS 200, FS 200 R, FS 250, FS 250 R

Loop Handle without Barrier Bar

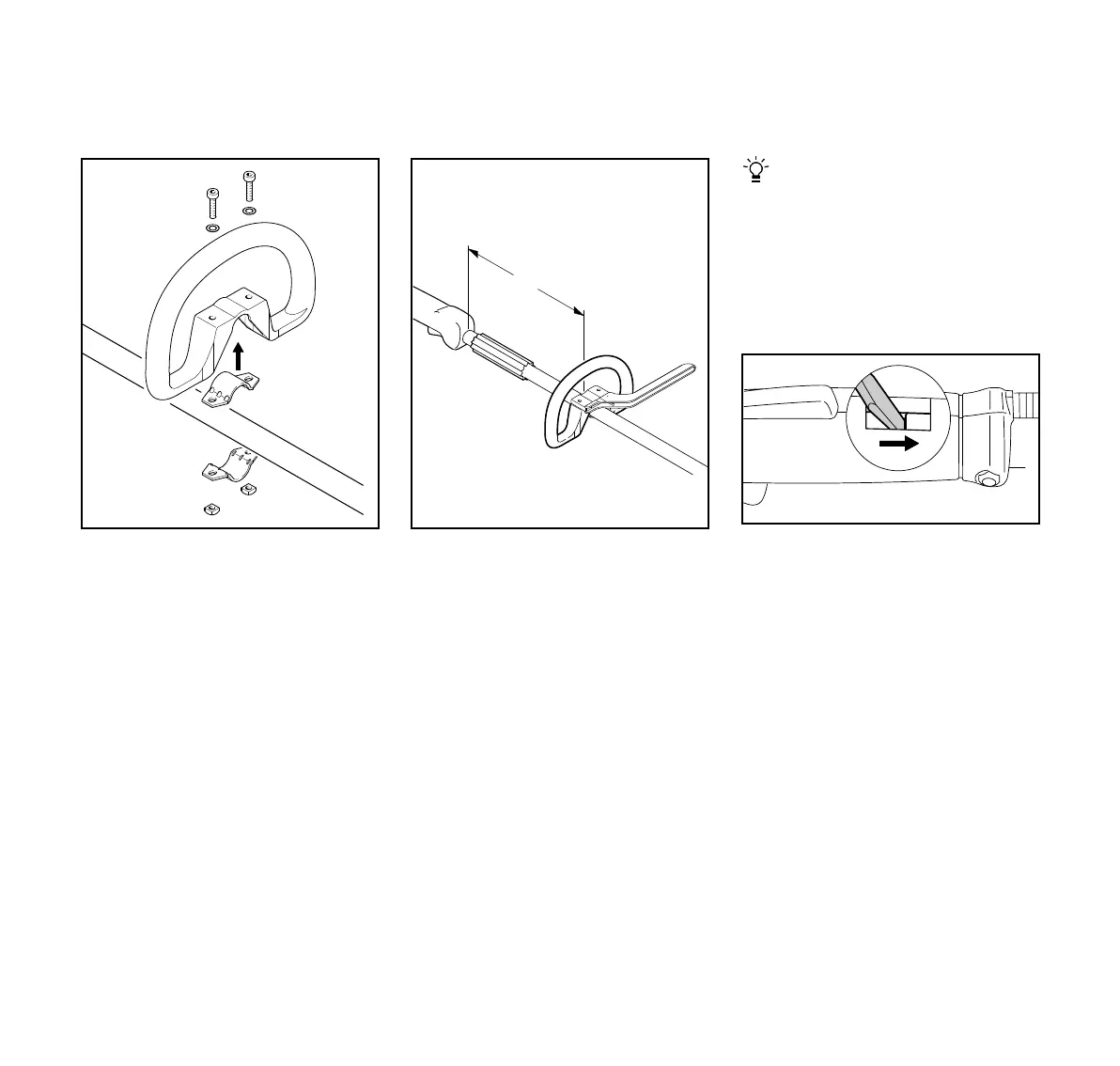

: Place the clamp (3) in the loop

handle (4) and position them both

against the drive tube (5).

: Fit the clamp (6) and line up the

holes.

: Fit washers (7) on screws (8) and

insert screws in holes. Screw on the

square nuts (1) as far as stop.

: Go to “Securing the Loop Handle”.

Securing the Loop Handle

: Secure the loop handle (4) approx.

8 in (20 cm) (A) forward of the

control handle (9).

: Line up the loop handle.

: Tighten down the screws firmly –

lock the nuts if necessaey.

: The sleeve (10) is country-specific

and must be located between the

loop handle and control handle.

A properly adjusted throttle cable is

the precondition for correct

operation in the full throttle, starting

throttle and idle positions.

Adjust the throttle cable only after

the unit is fully assembled – the

control handle must be in the normal

operating position.

: Use a suitable tool to push the slide

to the bottom of the slot (see

illustration).

002BA136 KN

002BA147 KN

Adjusting the Throttle Cable

002BA163 KN
