Stihl FS 120 User Manual

27FS 120, FS 120 R, FS 200, FS 200 R, FS 250, FS 250 R
English / USA
: Pull the hose (1) (protector for
shipping) off the shaft (2).
: Go to "Mounting the Mowing Head".
If you want to mount a metal cutting
tool in place of a mowing head, you
will need the following additional
parts: Nut (3), rider plate (4) and
thrust washer (5) (special
accessories).
Mounting hardware is packed with
the machine
Mowing heads and metal cutting
tools may be mounted.
Mounting hardware is loose
: Pull the hose (1) (protector for
shipping) off the shaft (2).
The nut (3), rider plate (4) and thrust
washer (5) are in the parts kit
supplied with the machine.
: Go to "Mounting the Mowing Head"
or "Mounting Metal Cutting Tools".
Mounting hardware is secured to
gearhead
: Go to "Removing Mounting
Hardware"
Removing Mounting Hardware
: Block the shaft – see next section
on "Blocking the Output Shaft".

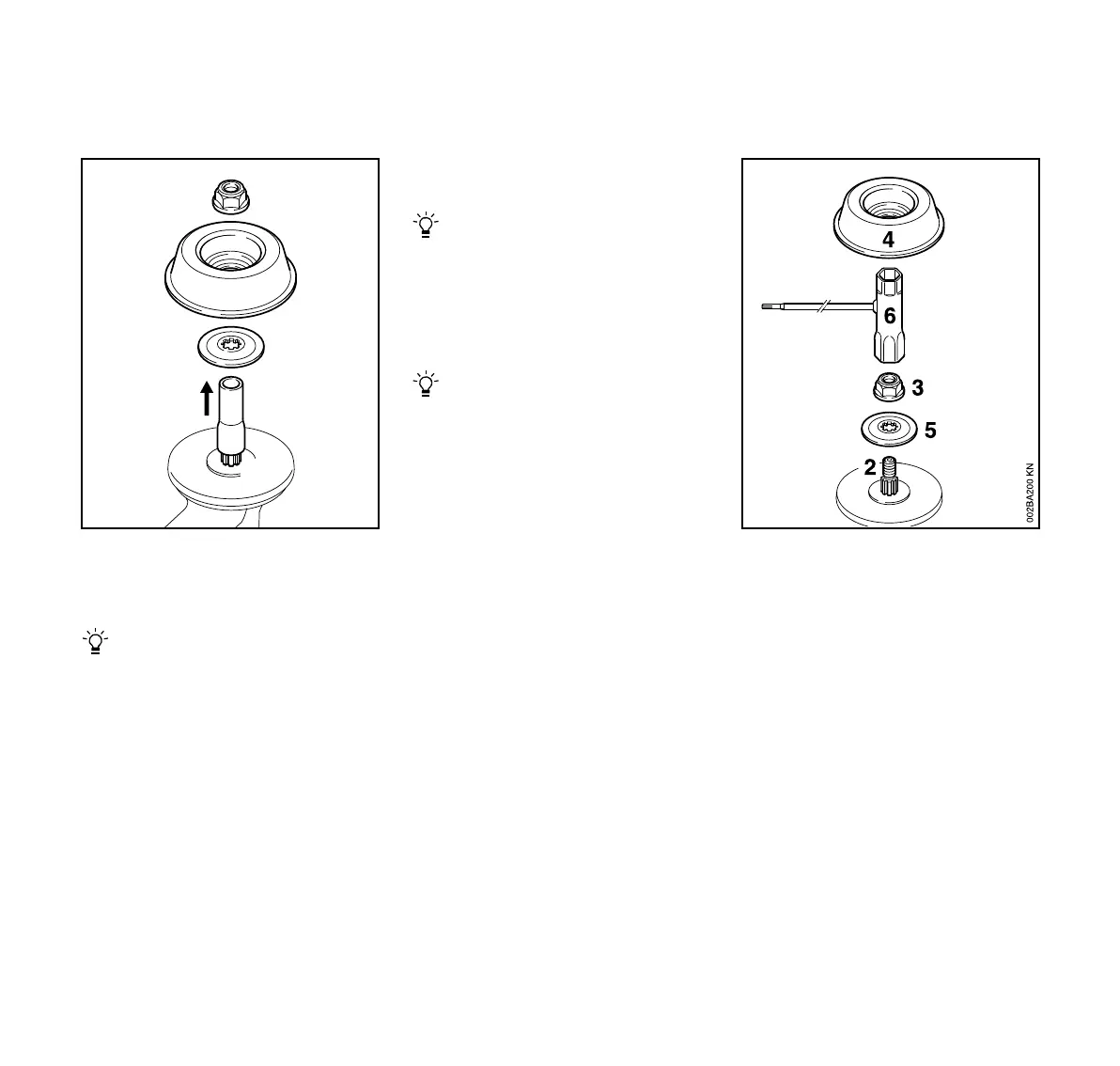

: Use the combination wrench (6)
(supplied with machine or available
as special accessory) to unscrew
the nut (3) clockwise (left-hand
thread) from the shaft (2).
: Pull the thrust washer (5) off the
shaft (2).
2
002BA164 KN
1
3
4
5

Stihl FS 120 Specifications

General

Power source	Gasoline
Type	Brush cutter
Cordless	Yes
Head type	Nylon line
Handle type	U-type handle
Engine power	1.8 hp
Product color	Black, Metallic, Orange
Uncertainty K	2 m/s²
Sound power level	110 dB
Fuel tank capacity	0.64 L
Vibration emission	4.9 m/s²
Engine displacement	30.8 cm³
Sound pressure level	98 dB
Cutting diameter (max)	- mm

Weight and Dimensions

Length	1760 mm
Weight	6300 g
